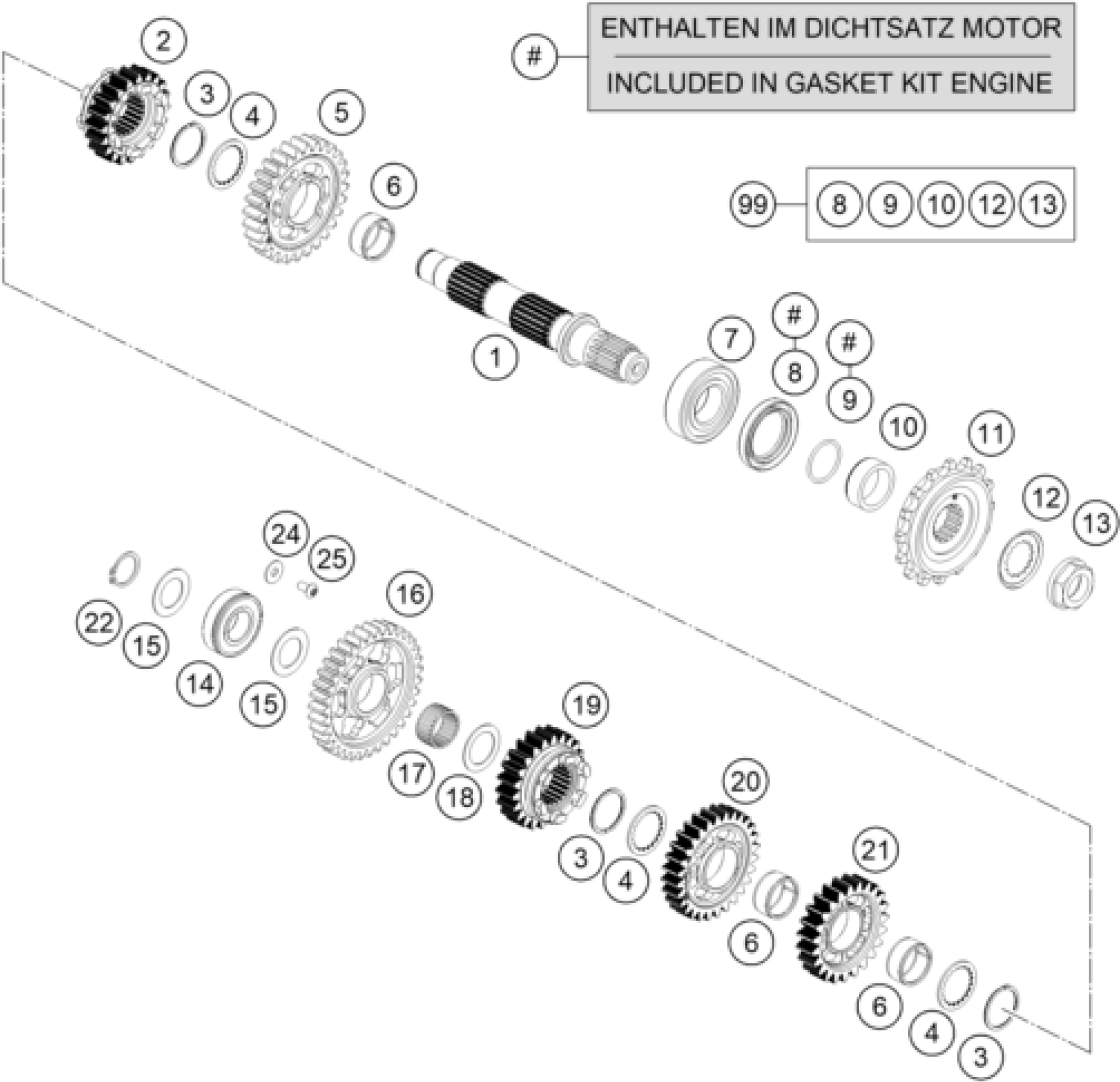

KTM 690 SMC R 2019 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

COUNTER SHAFT

76633010000

Unavailable

2

SLIDING GEAR 6. GEAR

76633016000

Unavailable

3

CIRCLIP XDNS-27

0471027000

Unavailable

4

STOP DISK 24.6X33X1.5

76633040000

Unavailable

5

IDLER GEAR 2. GEAR

76633012000

Unavailable

6

NEEDLE BEAR.K 24X28X13 DIVIDED

0405242813G

Unavailable

7

CYL.ROLLER BEARING NJ205 C4

49030023100

Unavailable

8

radial shaft seal 32x47x7BSL V

0760324773

Unavailable

9

O-RING 25,12X1,78 NBR70

0770020220

Unavailable

10

Spacing tube front sprocket

76633030012

Unavailable

11

Engine sprocket 15-t, damped

58033029115

Unavailable

11

Sprocket 16-t, damped

58033029116

Unavailable

12

locking plate

51033031000

Unavailable

13

Sprocket nut M20x1.5

58033132300

Unavailable

14

BALL BEARING 6004 DDUN C4

0625060044

Unavailable

15

Shim 20x31.9x1

59033080000

Unavailable

16

IDLER GEAR 1. GEAR

76633011000

Unavailable

17

NEEDLE BEARING K22X26X13H

56533098000

Unavailable

18

STOP DISK 22,2X31,7X1

54603036000

Unavailable

19

SLIDING GEAR 5. GEAR

76633015000

Unavailable

20

Idler gear 3rd gear

76633013100

Unavailable

21

IDLER GEAR 4. GEAR

76633014000

Unavailable

22

CIRCLIP DIN471 20X1,2

0471200120

Unavailable

24

washer DIN 9021 A - 5.3

0021050003

Unavailable

25

PAN HEAD SCREW M5X10 TX25

073800501002

Unavailable

99

Repair kit output shaft 690

00050000993

Unavailable
