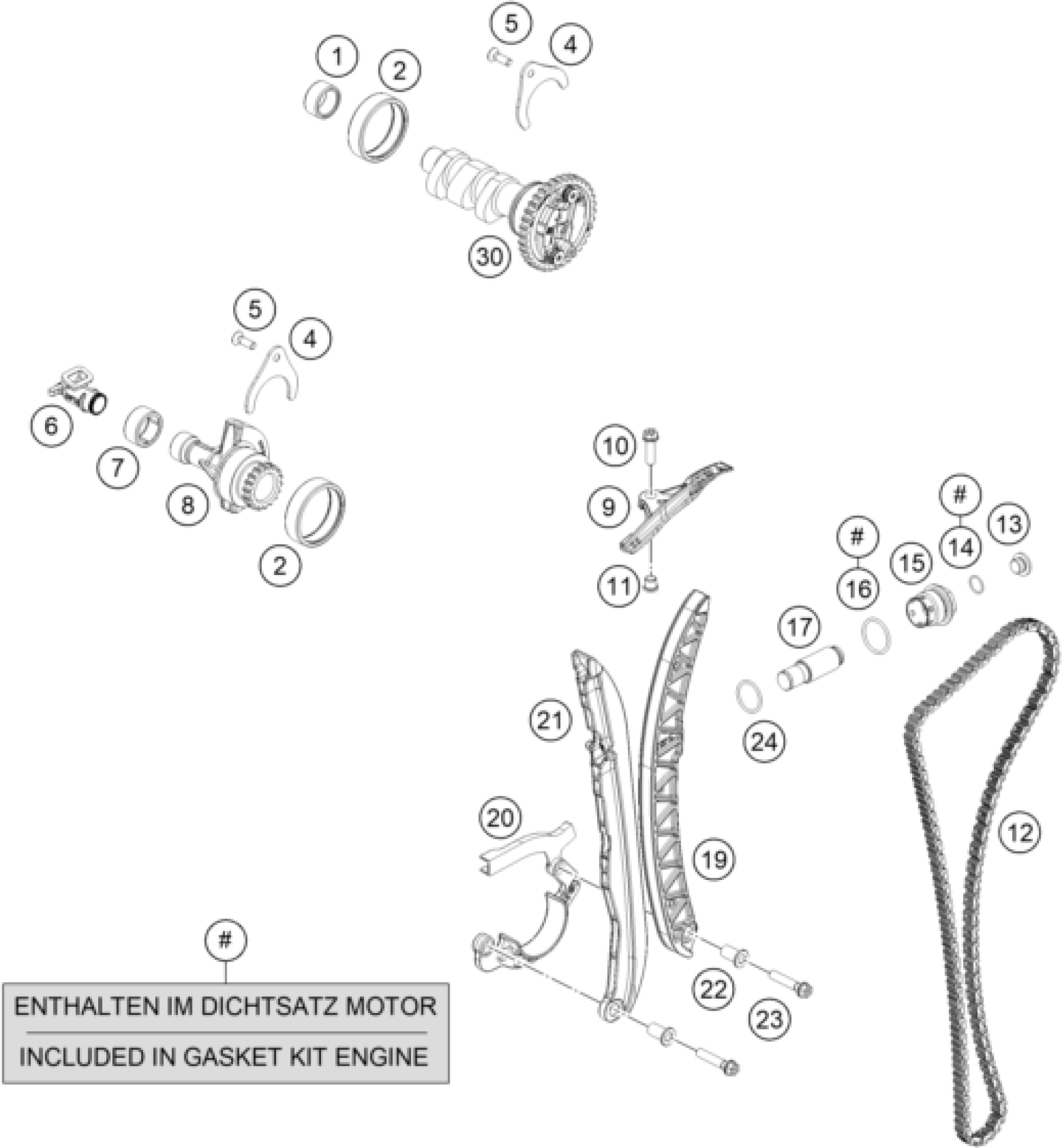

KTM 690 SMC R 2019 TIMING DRIVE Diagram

#

Description
Price

1

NEEDLE BEAR.HK1812 18/24/12 05

0618182412

$8.13

2

NEEDLE SLEEVE HK4012B40X47X12

0618404712

$11.02

4

LOCKING PLATE

76636010050

$15.14

5

INT. TORX FLAT HEAD M5X16 8.8

0019050163S

$2.05

6

BREATHER SYSTEM CONNECTOR

76636081000

$6.63

7

NEEDLE BUSH HK 2012

50203097000

$15.51

8

Balancer shaft cylinder head

76630158000

$74.14

9

CHAIN GUIDE

76636005000

$6.91

10

HH collar screw M6x20 TX30

0025060206

$3.08

11

SUPPORTING SLEEVE 03

60040027050

$6.35

12

TIMING CHAIN

76636013000

$51.70

13

threaded plug

77236080100

$6.63

14

o-ring 10.00x1.00 NBR70

0770010010

$2.05

15

chain tension adjuster plug cp

61236008200

$30.38

16

o-ring 22.00X2.00 NBR70

0770220020

$2.05

17

Chain tension adjuster, hydrau

77036003200

$52.91

19

Tensioner rail

76636102000

$21.59

20

CHAIN GUIDE

76636018000

$8.41

21

GUIDING RAIL

76636001000

$11.30

22

SUPPORTING SLEEVE 07

75036018050

$5.23

23

HH collar screw M6x30 TX30

0025060306S

$3.08

24

o-ring 18.00x2.00 NBR70

0770180020

$2.05

30

Camshaft cmpl.

76636010444

$540.70
