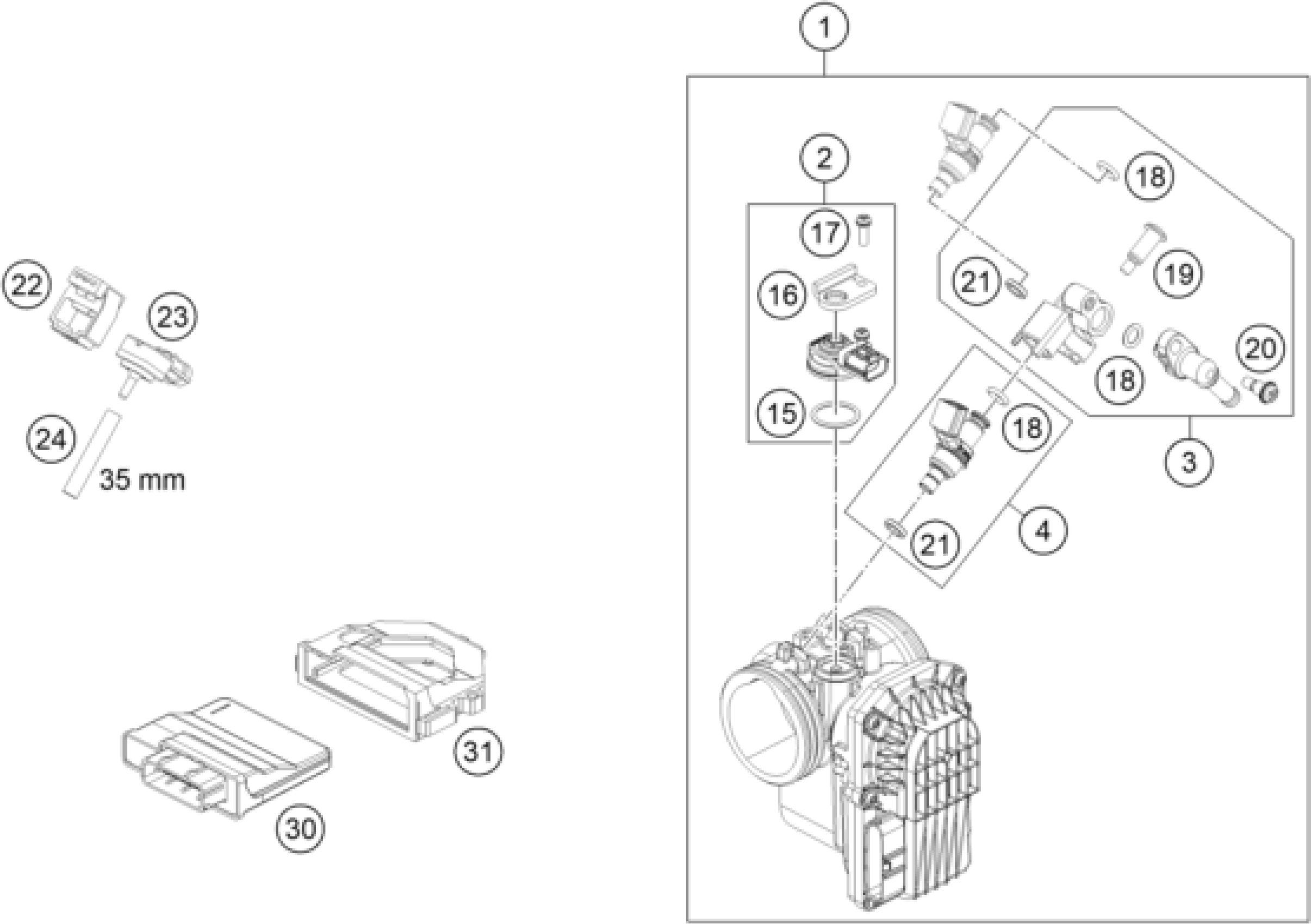

KTM 690 SMC R 2019 THROTTLE BODY Diagram

#

Description

Price

1

THROTTLE BODY

76641001000

Unavailable

2

MAP SENSOR CPL. 07

75041085044

Unavailable

3

FUEL RAIL ASSY SET 07

75041013044

Unavailable

4

FUEL INJECTOR ASSY SET

76041023044

Unavailable

15

O-RING

75041085010

Unavailable

16

PLATE, STAY

75041085020

Unavailable

17

SCREW WASHER

75041085030

Unavailable

18

O-RING 7,2x2,2

75041023020

Unavailable

19

SCREW SHOULDER

75041013060

Unavailable

20

SCREW SHOULDER

75041013010

Unavailable

21

SEAL RING

75041023010

Unavailable

22

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

23

PRESSURE SENSOR 06

61041085100

Unavailable

24

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

30

Control unit EFI

61341031300

Unavailable

31

ECU RUBBER BRACKET

60341031050

Unavailable
