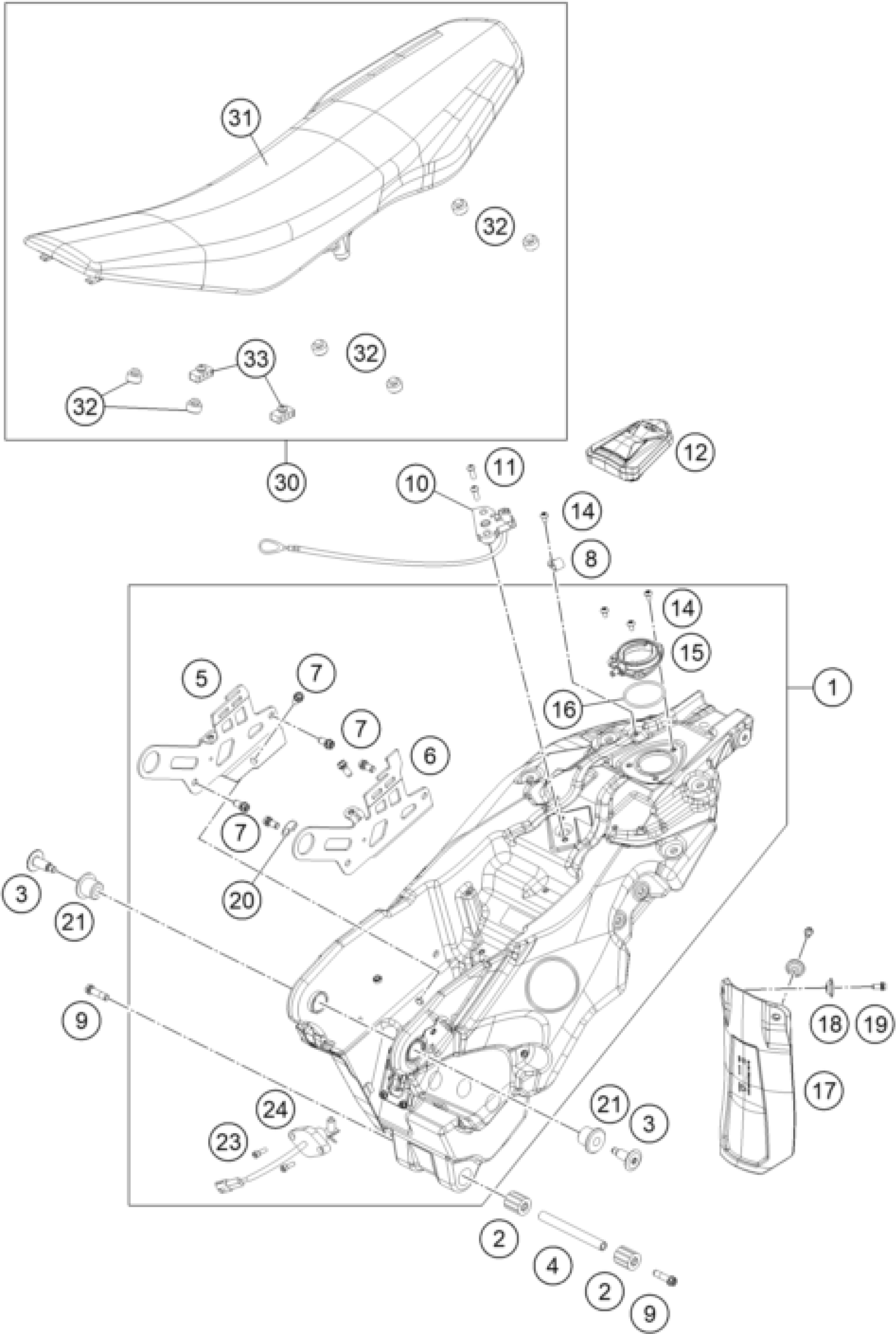

KTM 690 SMC R 2019 TANK, SEAT Diagram

#

Description
Price

1

Fuel tank cpl.

76907013044

$1,854.38

2

RUBBER BUSHING 11,7X24,7 L=26

76507065100

$16.07

3

BEARING BUSHING UP

76507060000

$49.92

4

BEARING BUSHING DOWN

76507061000

$20.37

5

RIGHT FUEL-TANK SUPPORT PLATE

27007028000

$46.09

6

Retaining bracket tank left

27007027100

$42.81

7

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

8

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

$1.49

9

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

10

SEAT LOCK

76507050000

$41.88

11

BHCS ISO 7380 M6X18

0738060181

$2.05

12

Fuel tank cap

76907008000

$261.14

14

SCREW TORX M5X10 05

58605083010

$2.05

15

Closure flange

76507108050

$12.15

16

O-ring 50.00X3.00 VITON

0770050030

$5.23

17

Splash protection

76506010100

$10.46

18

BUCKET

72210079000

$3.00

19

HH collar screw M6x10 TX30

0025060106

$3.08

20

CLAMP FOR SEAT LOCK LINKAGE

27007053000

$12.99

21

RUBB.BEAR.BOX 12x24x35 L=24,5

76507066000

$13.64

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31

30

Seat SMC-R cmpl.

76907140000

$242.62

31

Seat cover

76907140050

$94.43

32

Seat rubber

76907040045

$1.49

33

Rubber support

28503002010

$4.11
