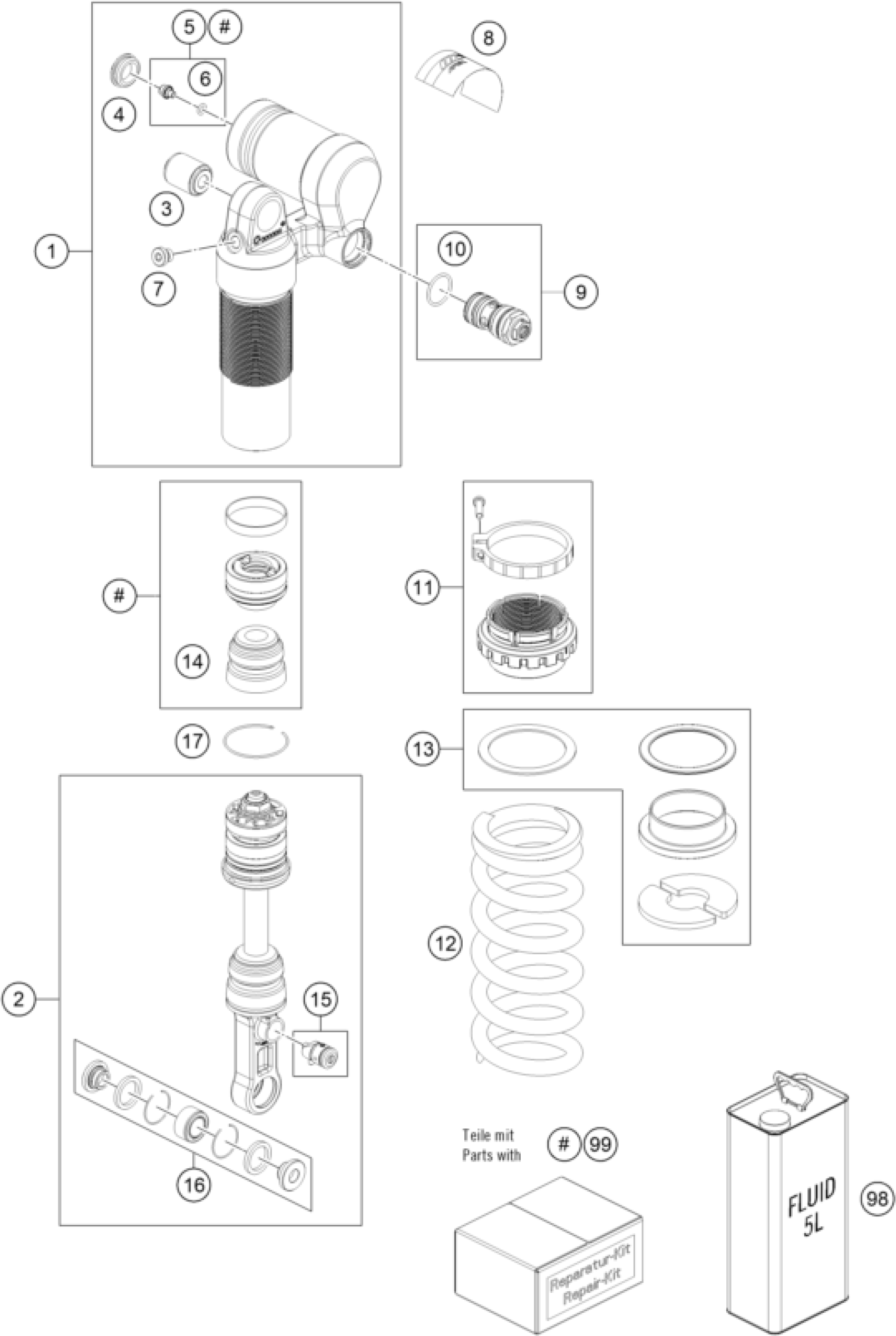

KTM 690 SMC R 2019 SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

2

Shock bottom part cpl. KTM 690

46180687S1

$432.52

3

Silentblock 10,05x25x32

14460161

$15.33

4

Rubber cap do not open 22x5,5

46811208

$3.08

5

PLUG SCREW M5X6 CPL.

36120151S

$4.11

6

O-ring 5,28x1,78 NBR70 black

46810893

$1.49

7

HS cylinder-head screw R1/8 l8

50180095

$2.42

8

Sticker APEX 90x40

52000215

$26.73

9

Compression cpl.

46181370S

$150.81

10

O-ring 22x2 Viton70

46180811

$1.49

11

Plastic Spring Retainer d46 cp

46181369S

$32.81

12

SPRING 220MM 75N/MM (61)

91110003S

$150.90

13

Repair kit spring retainer

RP10023

Unavailable

14

Rubber pad 17,2x45,2x40 black

50180276

$8.41

15

TAP ADJ. REBOUND

46180522S1

$50.11

16

REPAIR KIT BEARINGS 07

R15006

Unavailable

17

Round-wire snap ring 49x1,5

46810010

$3.08

98

SHOCK ABSORBER FLUID 5 LT

50180751S1

Unavailable

99

REPAIR KIT GASKET 07

R15005

Unavailable

1

Shock upper part cpl. KTM 690

46180776S3

$399.24

12

SPRING 225MM 69 N/MM

91010338S

Unavailable

12

Mainspring (59/61) 81-225 damp

91010367

Unavailable
