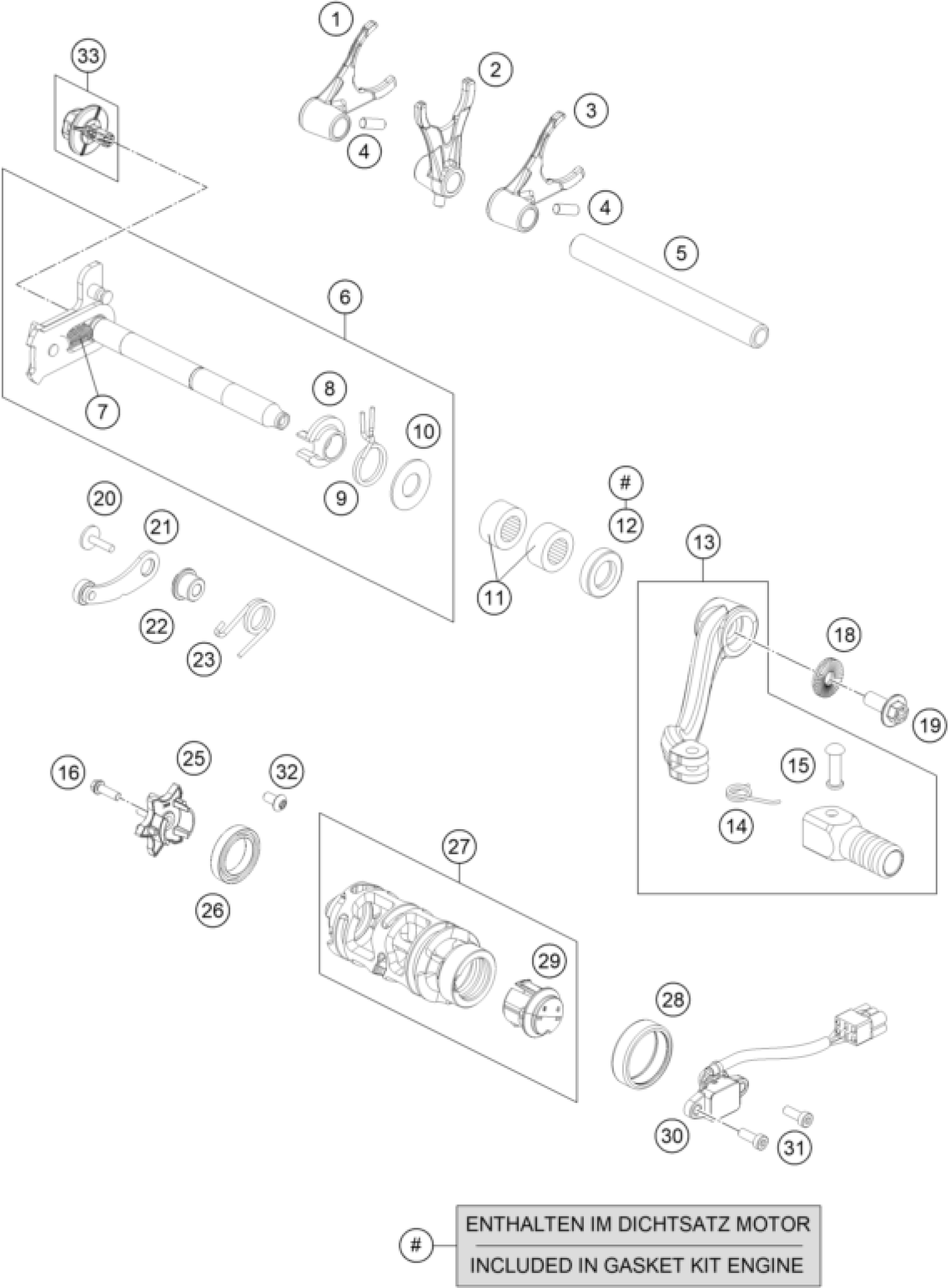

KTM 690 SMC R 2019 SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK F. SLIDINGGEAR 5 12

75034002100

Unavailable

2

SHIFT FORK F. SLIDINGG. 3/4 12

75034001100

Unavailable

3

SHIFT FORK F. SLIDINGGEAR 6 12

75034003100

Unavailable

4

NEEDLE ROLLER DIN5402 6X14,8

0402061480

Unavailable

5

shift fork shaft

75034019100

Unavailable

6

Shifting shaft assembled

76834005133

Unavailable

7

TENSIONING SPRING 0,8MM

56534013100

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

RETURN SPRING 03

54834014000

Unavailable

10

STOP DISK 14X30X1,5 STEEL

75034050000

Unavailable

11

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

12

radial shaft seal 14x24x6 B

0760142460

Unavailable

13

SHIFT LEVER CPL. 07

75034031000

Unavailable

14

SHIFTING LEVER SPRING

75034032000

Unavailable

15

BOLT 6X25 FOR SHIFT LEVER

54634031050

Unavailable

18

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

19

HH collar screw M6x15 TX30

0024060156S

Unavailable

20

HH collar screw M6x20 TX30

0024060206

Unavailable

21

LOCKING LEVER CPL.

61434024000

Unavailable

22

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

23

ARRESTING LEVER SPRING 07

60034023100

Unavailable

25

Shift locker

76834115001

Unavailable

26

BALL BEARING 61805 C3

0625618050

Unavailable

27

Shifting drum cpl.

76634012144

Unavailable

28

NEEDLE BEAR HK3512 35X42X12

0618354212

Unavailable

29

Magnet bracket cmpl.

79234012020

Unavailable

30

GEAR POSITION SENSOR

60411023000

Unavailable

31

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable

32

PAN HEAD SCREW M5X10 TX25

073800501002

Unavailable

33

magnet holder

76834050000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable
