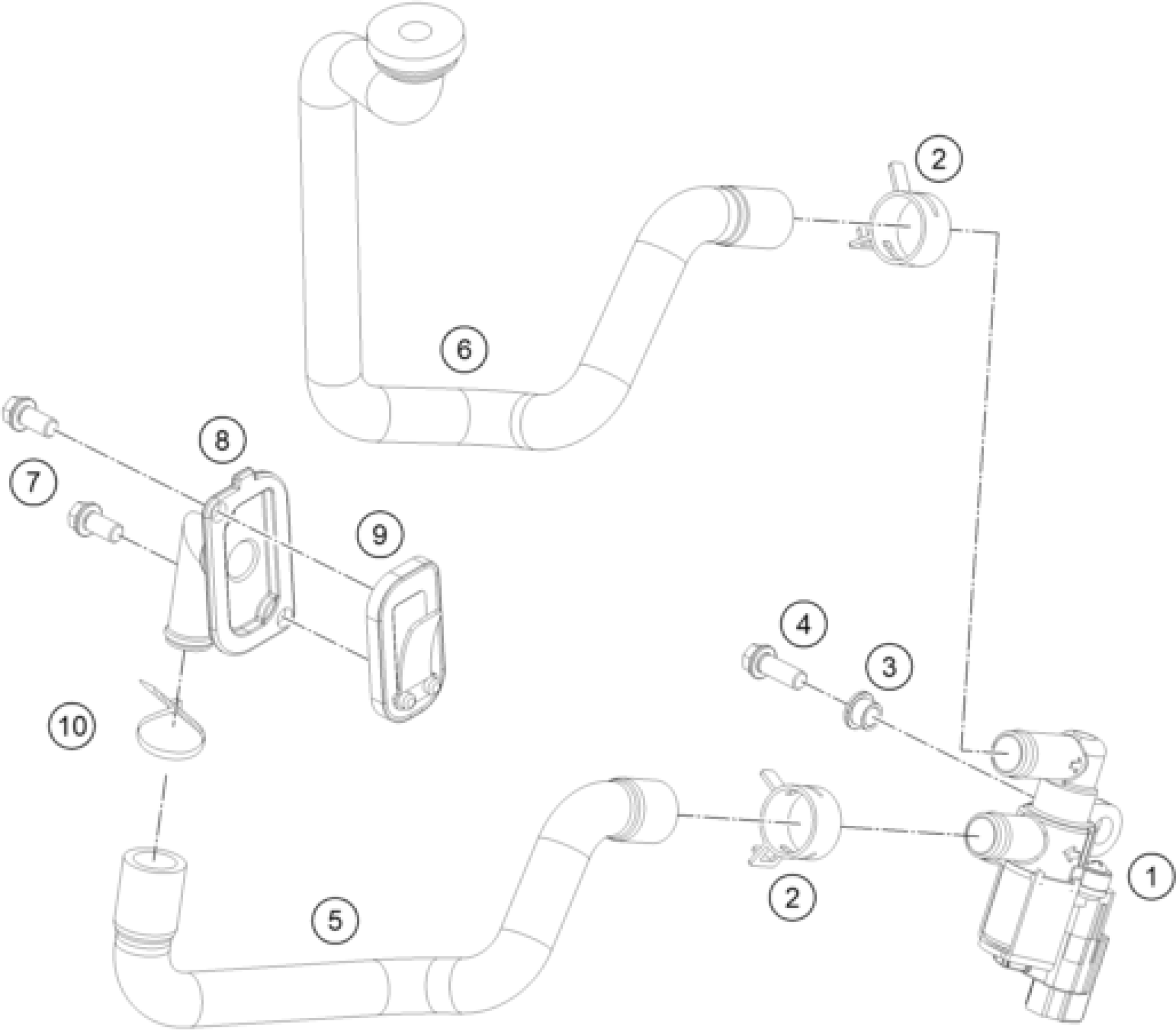

KTM 690 SMC R 2019 SECONDARY AIR SYSTEM SAS Diagram

#

Description

Price

1

SLS-VALVE 07

75005026000

$74.51

2

VARIABLE ONE-EAR CLAMP 32,5MM

00050325706

$4.11

3

COLLAR BUSH SAS-VALVE

75005033000

$4.11

4

HH collar screw M6x16 TX30

0025060166

$3.08

5

SLS-hose to vent cover

27005027100

$10.37

6

SAS hose to airbox

27005026000

$36.27

7

Hex collar screw M6x12 ISA30 s

0025060126S

$1.49

8

SAS-FLANGE

61205032000

$18.97

9

SAS Reed Valve

60005026000

$21.50

10

Cable tie 200/4.6mm black

44011076200

$1.49
