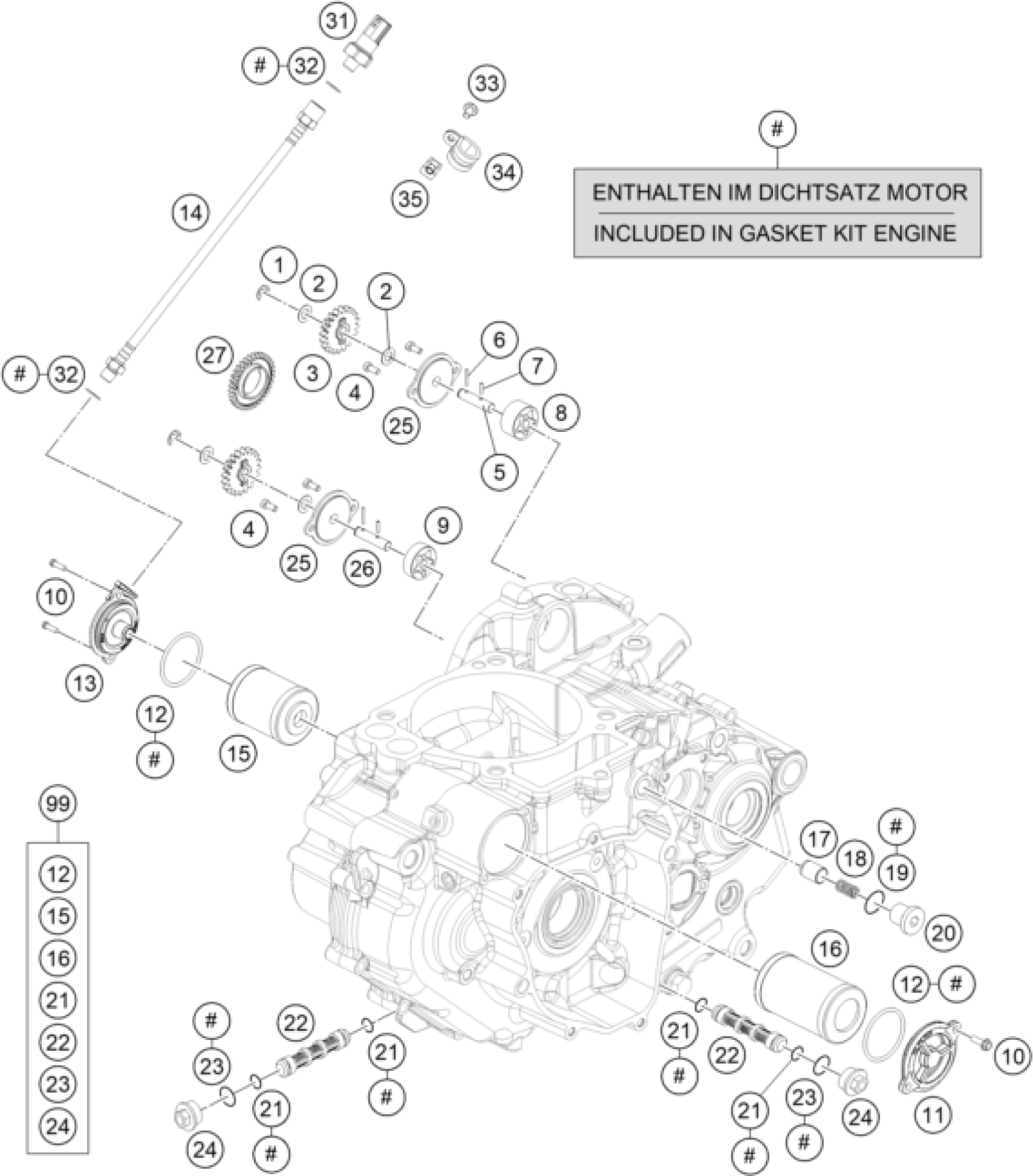

KTM 690 SMC R 2019 LUBRICATING SYSTEM Diagram

#

Description
Price

1

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

2

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

3

OIL PUMP GEAR 20-T

75038001020

$5.23

4

AH SCREW DIN7984 M5X10 A2

07984050100

$1.49

5

OIL PUMP SHAFT 07

75038002000

$8.78

6

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

7

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

8

OIL PUMP ROTOR COMPL. 15MM

77038011100

$24.96

9

OIL PUMP ROTOR COMPL. 10MM

59038011110

$10.93

10

HH collar screw M5x16 TX30

0025050166

$2.05

11

oil filter cover

75038041200

$8.13

12

O-RING 39,34X2,62

07700390261

$2.05

13

OILFILTER COVER

76038041000

$120.05

14

OIL PIPE

76538034000

$79.09

15

OIL FILTER SHORT

75038046100

$9.34

16

OIL FILTER LONG

58038005100

$10.46

17

VALVE PISTON D=10MM

58038028000

$37.77

18

OIL PRES.SPRING 5 BAR RED 2001

58538023000

$7.94

19

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

20

threaded plug DIN 908 M12x1.5

0908120153

$4.11

21

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

22

OIL SCREEN

59038016100

$7.00

23

o-ring 18.00x2.00 NBR70

0770180020

$2.05

24

PLUG M20X1,5 WS=13

59038017100

$7.85

25

oil pump cover

75038003100

$6.91

26

OIL PUMP SHAFT 07

75038004000

$8.78

27

OIL PUMP DRIVE WHEEL 07

75032050001

$4.11

31

oil pressure switch ''BITRON''

61238091100

$33.46

32

sealing ring DIN 7603 10x14x1

0603100141

$2.05

33

Oval head screw M5x14 TX25

58605083014

$3.08

34

CLAMP RSGU 15/12

49007439000

$5.23

35

clip nut M5

69008021080

$3.08

99

OILFILTER SERVICE KIT 690

75038046110

Unavailable
