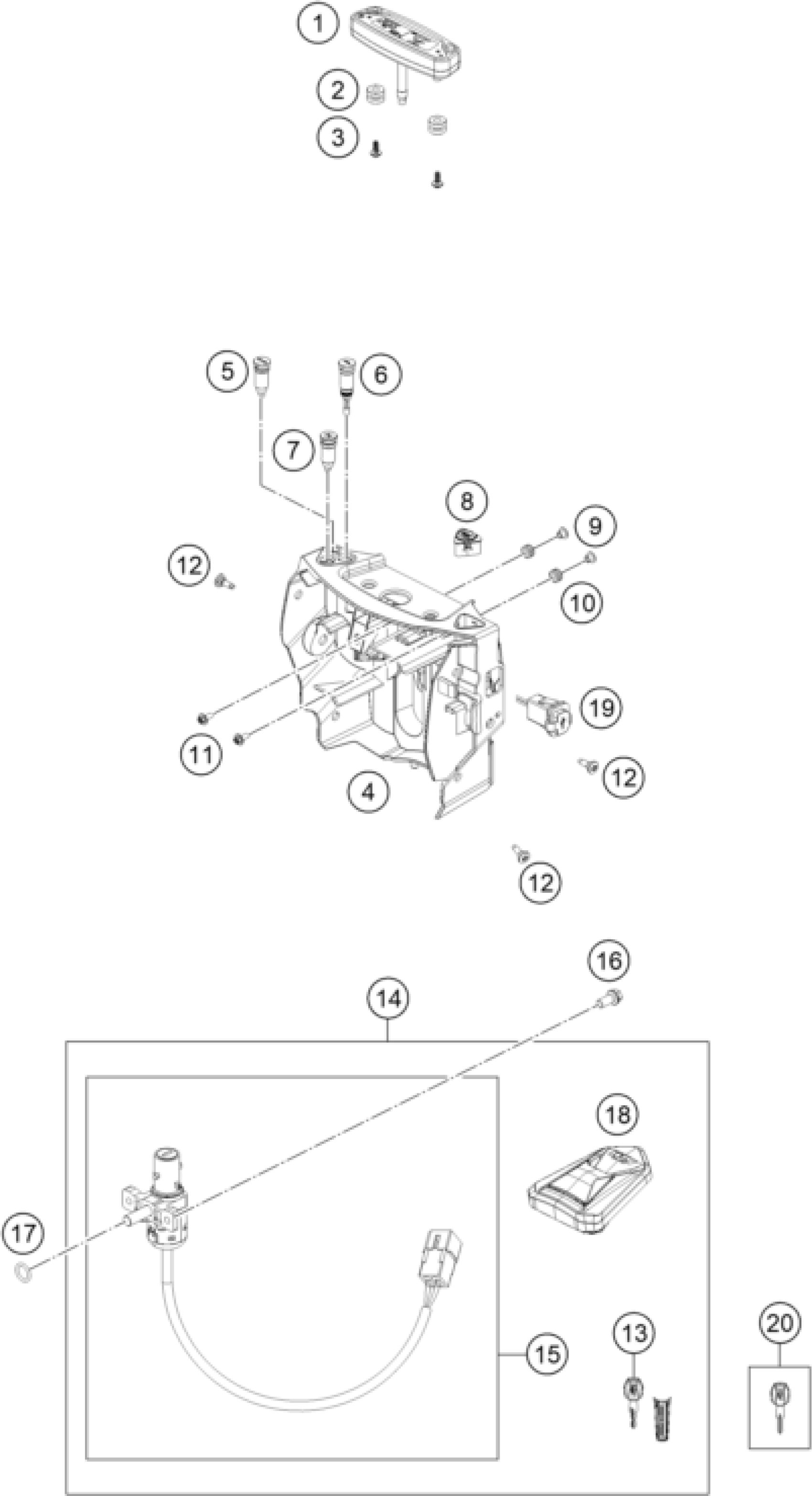

KTM 690 SMC R 2019 INSTRUMENTS / LOCK SYSTEM Diagram

Dashboard

27014169200

$204.57

rubber grommet 16x10.8x3

58214069051

$5.23

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

Combination instrument, bracke

76914060000

$42.53

FLASHER CONTROL LIGHT

27014081000

$30.19

Oil pressure warning indicator

76914082000

$39.45

neutral led pilot assembly

27014083000

$27.57

SWITCH ABS

60142070100

$78.53

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

rubber grommet D=8mm open

31008060000

$2.05

HH collar screw M6x15 TX30

0024060156

$3.08

special screw M5x12

69008021160

$4.11

KTM ignition key

76911067000

Unavailable

Lock kit cmpl.

76911066044

$227.94

Ignition Switch

27011066100

$160.34

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

o-ring 10.00x2.00 silicone

0770100020

$2.05

Fuel tank cap

76907008000

$261.14

USB power socket 12 V

64111043000

$47.77

Spare key

76911067010

Unavailable
