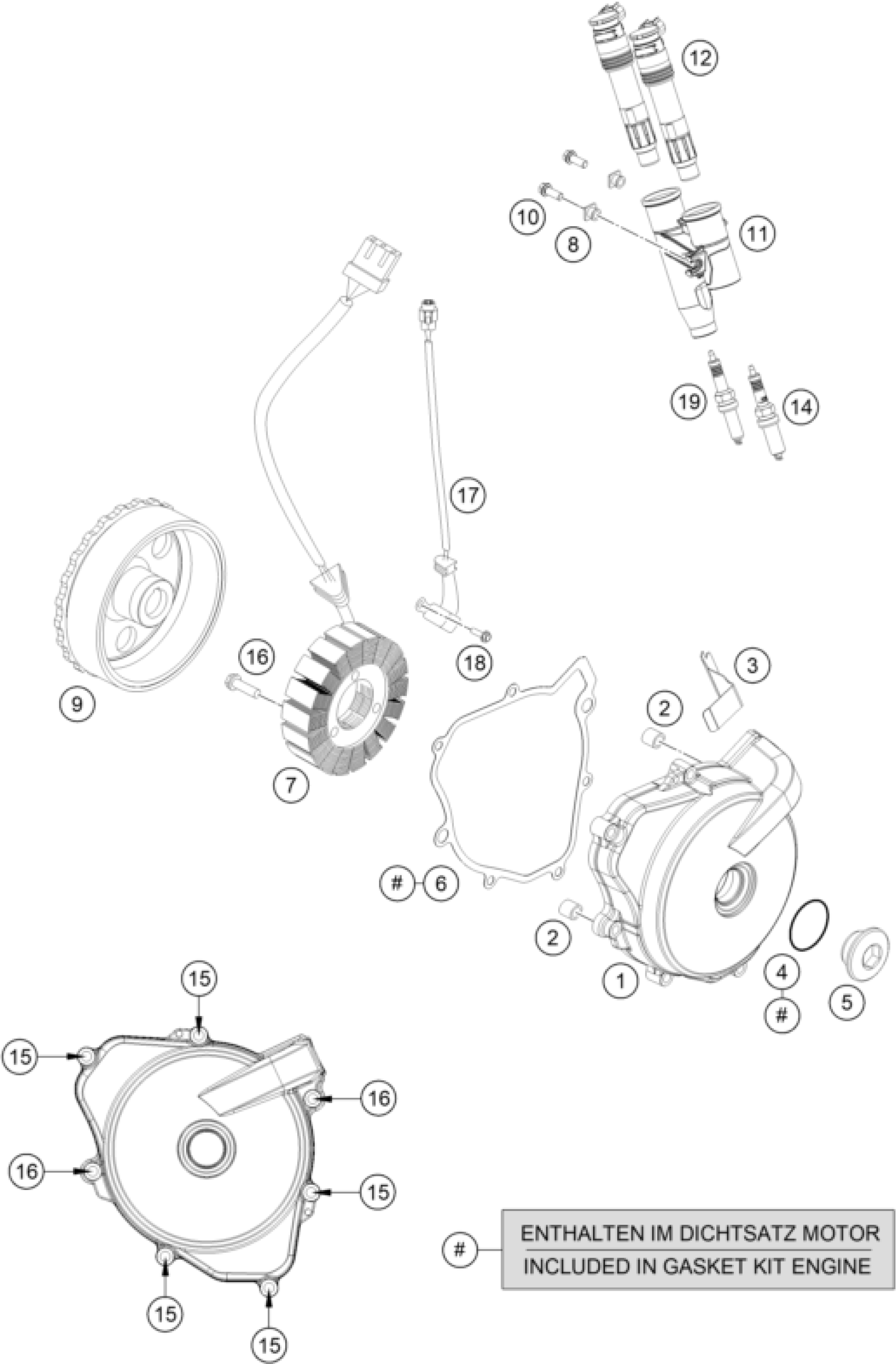

KTM 690 SMC R 2019 IGNITION SYSTEM Diagram

#

Description
Price

1

IGNITION COVER

7503000210041

Unavailable

2

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

3

generator line bracket

60039040020

Unavailable

4

o-ring 24.00x2.50 Viton

07700240251

Unavailable

5

threaded plug M24x1.5 PA 6.6

6003009400030

Unavailable

6

IGNITI.COVER GASKET 07

75030040000

Unavailable

7

STATOR

75039004100

Unavailable

8

INSET

76036075050

Unavailable

9

ROTOR

75039005200

Unavailable

10

HH collar screw M6x16 TX30

0025060166

Unavailable

11

STICKCOIL HOLDER

76636075000

Unavailable

12

STICK COIL

76039006000

Unavailable

14

SPARK PLUG M12X1.25

60439093000

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

16

HH collar screw M6x30 TX30

0025060306

Unavailable

17

PULSER COIL

75039034000

Unavailable

18

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

19

SPARK PLUG

60439094000

Unavailable
