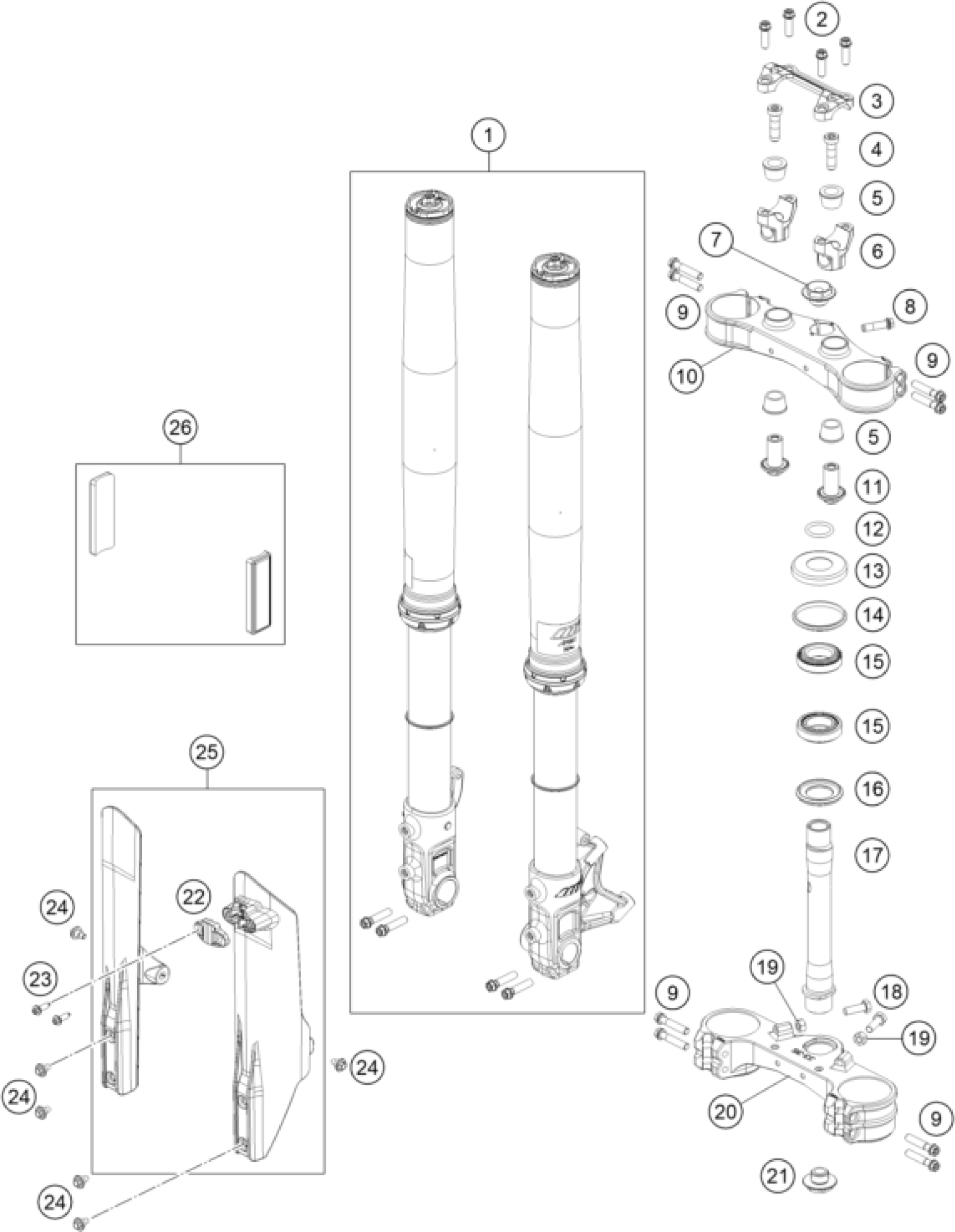

KTM 690 SMC R 2019 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

fork

14188S1201

Unavailable

2

HH collar screw M8x25

0025080256

Unavailable

3

Handlebar clamp 28mm

79001038000C1

Unavailable

4

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

5

RUBBER BUSH

83001040000

Unavailable

6

Handlebar mount D28mm H36mm

79001039136C1

Unavailable

7

Steering head screw M20x1.5 WS

54801036000C1

Unavailable

8

HH collar screw M8x30

0025080306

Unavailable

9

HH COLLAR SCREW M8X40 TX40

0025080406

Unavailable

10

UPPER TRIPLECLAMP 33-35 OFFSET

2700103423430

Unavailable

11

HANDLEBAR SUPPORT LOWER PART

79001037034

Unavailable

12

O-RING 25X3,55 NBR70 05

0770025035

Unavailable

13

STEERING HEAD COVER

78101086000

Unavailable

14

STEARING HEAD GASKET TOP

54601184000

Unavailable

15

TAPERED ROLLER BEARING CPL. 06

54201081100

Unavailable

16

O-RING SUPPORT W. SEALING LIP

77701084000

Unavailable

17

excentric head tube

76501033100

Unavailable

18

HH SCREW DIN0933-M 8X25

0933080253

Unavailable

19

Hexagon nut DIN934 M8

0934080003

Unavailable

20

LOW. TRIPLE-CLAMP 33-35 OFFSET

2700103113430

Unavailable

21

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

Unavailable

22

Clamp for brake hose

76901085000C1

Unavailable

23

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

24

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

25

fork protector kit 690 SMC-R 2

76901194000C1

Unavailable

26

REFLECTOR YELLOW ''CEV''

58412080300

Unavailable
