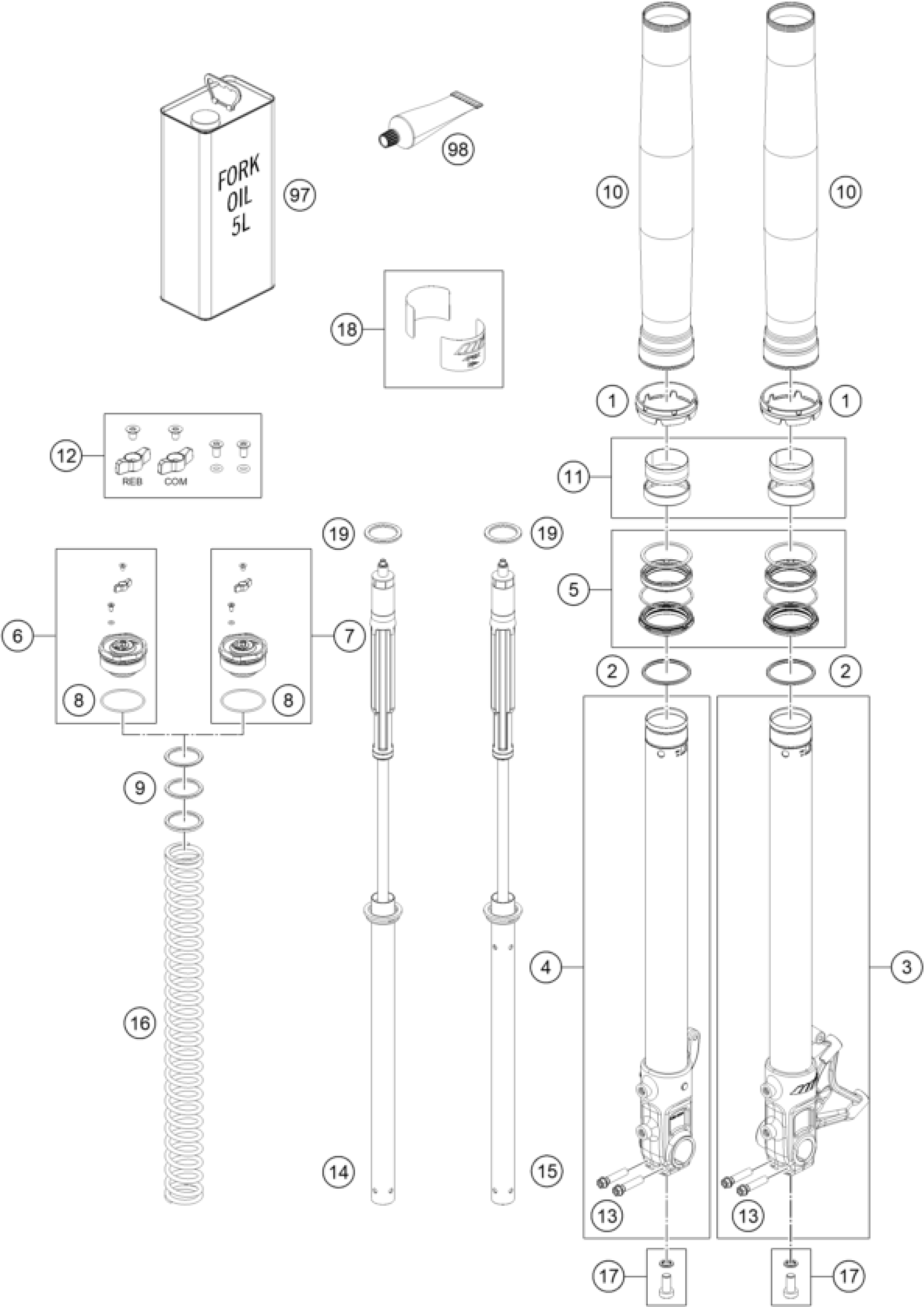

KTM 690 SMC R 2019 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

1

Fork protection ring 60,1mm

48601948

Unavailable

2

Stroke indicator 48mm red

48602007

Unavailable

3

AXLE CLAMP L/S WITH TUBE CPL.

48601318S1

Unavailable

4

AXLE CLAMP R/S WITH TUBE CPL.

48601317S1

Unavailable

5

Sealkit 48mm SKF black

RP10012

Unavailable

6

Screw cap M51x1,5 rebound cpl.

48602039S

Unavailable

7

Screw cap M51x1,5 compression

48602040S

Unavailable

8

O-ring 46x2 NBR70 siliconized

48600048

Unavailable

9

Washer 35x43x1,5 plastic

48600458

Unavailable

9

Washer 35x43x2,5 plastic

48600456

Unavailable

9

Preload bush 35x43x3,5

48600457

Unavailable

10

Fork outer tube 54x530 dt54 db

48601981

Unavailable

11

Guide bushing set fork 48mm

R14047

Unavailable

12

Adjuster kit screw cap

RP10021

Unavailable

13

HH collar screw M8x35 TX40

0025080356

Unavailable

14

Cartridge right KTM 690 SM

48601067S1

Unavailable

15

Cartridge left KTM 690 SMC

48601067S2

Unavailable

16

SPRING C=5,3 L=450 D=5,5

91410043S

Unavailable

17

AH SCREW M10X20 SET

00501020S1

Unavailable

18

Sticker set APEX OC 90x40

52000210SET

Unavailable

97

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

98

Fuchs grease IPR (250g)

T14034

Unavailable

19

Washer 32x42x2,5 plastic

48600113

Unavailable
