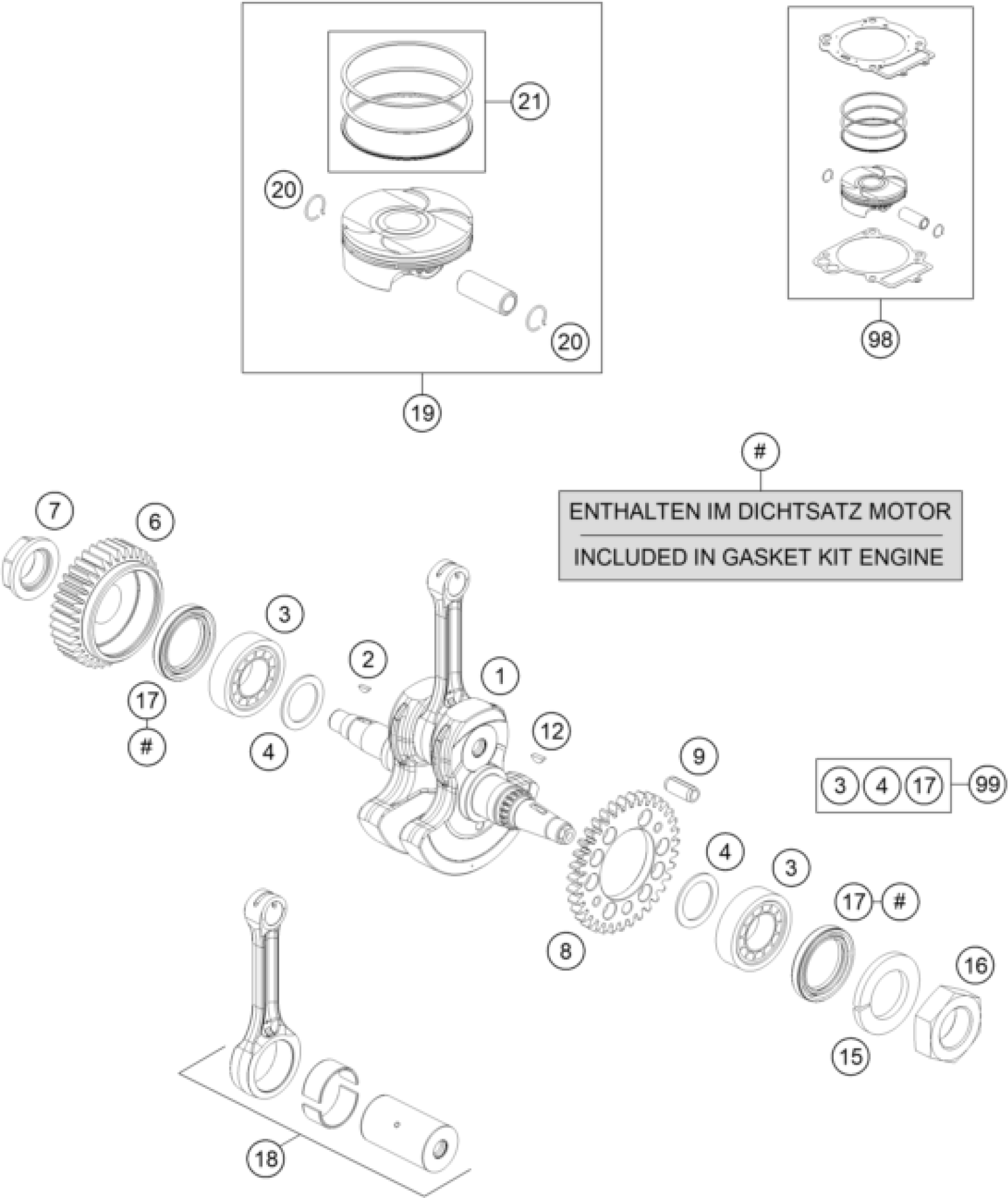

KTM 690 SMC R 2019 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

Crankshaft cpl.

76630018200

Unavailable

2

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

3

CYL.ROLLER BEARING NJ207 ECPC4

75030018150

Unavailable

4

SHIM WASHER 36X48X0,10

56530081000

Unavailable

4

SHIM WASHER 36X48X0,15

56530081100

Unavailable

4

SHIM WASHER 36X48X0,20 STEEL

56530081200

Unavailable

4

SHIM WASHER 36X48X0,30

56530081300

Unavailable

6

PRIMARY GEAR 36T.

75032000102

Unavailable

7

NUT FOR PRIMARY GEAR

75030029100

Unavailable

8

DRIVE WHEEL BALANCING SHAFT

75030055100

Unavailable

9

TENSION PIN ISO13337 8X30

0749080300

Unavailable

12

WOODRUFF KEY 5X6,5 HARDED

6946005

Unavailable

15

LOCK WASHER VSK 18

58132072000

Unavailable

16

HEXAGON NUT DIN0936-M18X1,5 R.

0936181505

Unavailable

17

SHAFT SEAL R.35X50X7B VITON

0760355070

Unavailable

18

conrod repair kit

76630015144

Unavailable

19

Piston D=105

76630007100 I

Unavailable

19

Piston D=105

76630007100 II

Unavailable

20

CIRCLIP LC4 07

75030074000

Unavailable

21

Piston kit D=105

76630031144

Unavailable

98

Piston kit size I 690/701 2019

00050000253

Unavailable

98

Piston kit group II 690/701 20

00050000254

Unavailable

99

CRANKSHAFT REP. KIT 690

00050002305

Unavailable
