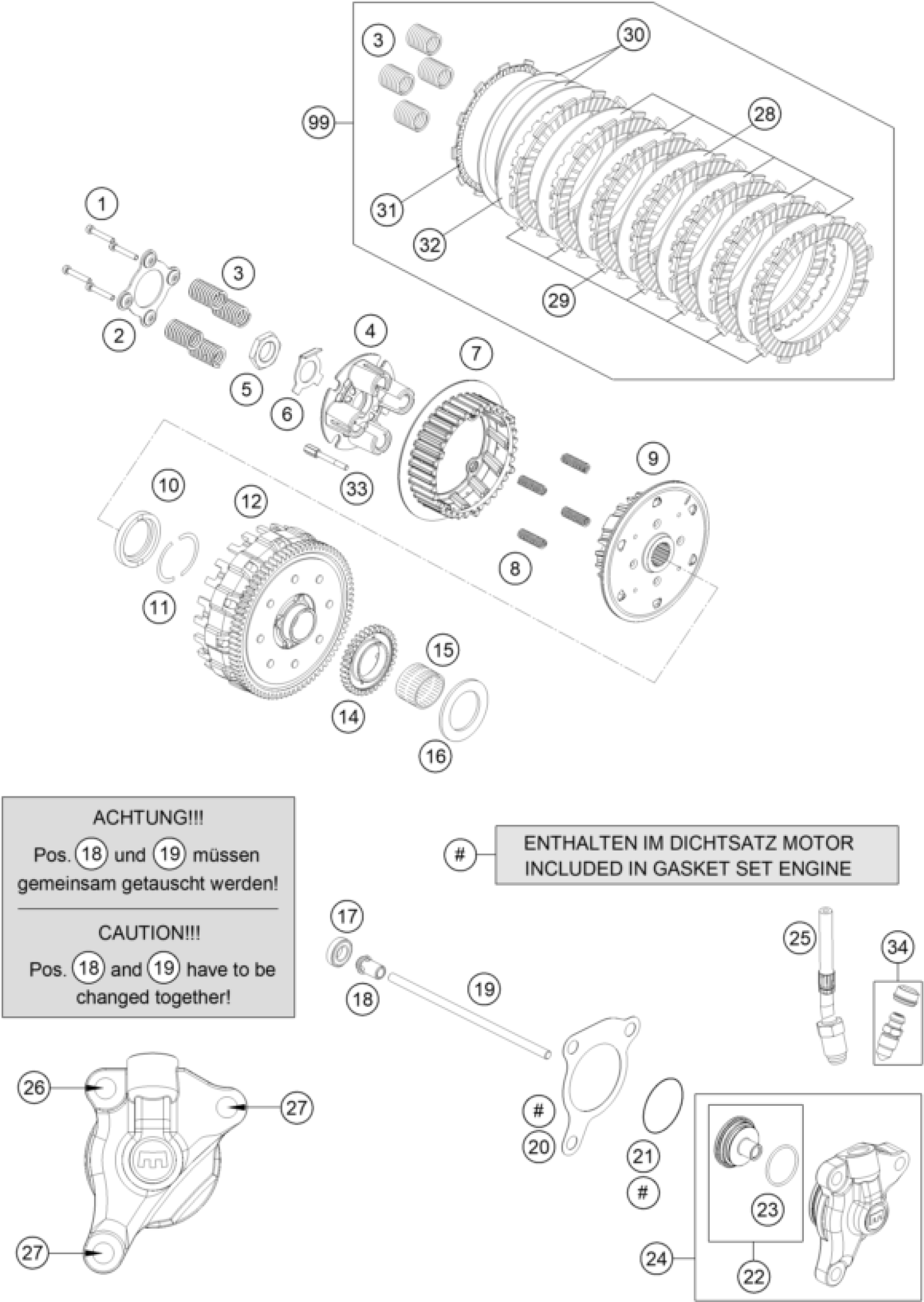

KTM 690 SMC R 2019 CLUTCH Diagram

#

Description
Price

1

Cyl.screw DIN14580 M5x30

014580050306

$2.05

2

Anticentrifugal ring

76632006000

$7.56

3

CLUTCHSPRING 3,0X33,5

58532080000

$8.87

4

pressure plate

76632003044

$48.80

5

hex nut M20x1,. H=6mm

60036073150

$6.91

6

Lock washer

75032018100

$4.11

7

Movable Hub

76632002002

$116.21

8

CLUTCH RELEASE SPRING

75032033000

$7.75

9

Fixed Hub

76632002001

$130.05

10

STEPPED WASHER 07

75032009000

$9.34

11

HALF-WASHER 07

75032007000

$11.12

12

CLUTCH CAGE CPL. 79T

75032001144

$533.69

14

OIL PUMP DRIVE WHEEL 07

75032050001

$4.11

15

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

16

WASHER 26X40X2 07

75032017000

$6.35

17

deep groove ball bearing 6001.

0625060016

$18.88

18

PRESSURE BOLT 08

75032055100

$9.90

19

PUSH ROD 08

75032054200

$14.95

20

GASKET F. OUTPUT CYLINDER

59032065100

$5.60

21

O-ring 30x1.5 NBR 70

0770300015

$2.05

24

Output Cyl. Dot Cpl. 27mm

79432061144

$190.26

25

CLUTCH PIPE 1100MM

76032063000

$69.28

26

HH collar screw M6x20 TX30

0025060206

$3.08

27

HH collar screw M6x35 TX30

0025060356

$3.08

28

STEEL DISK 1,5 MM LC4 ´07

75032112000

$18.41

29

LINING DISK 2,7MM FCC 02

58332011300

$28.98

30

RONDELLA ANTIVIBRAZIONE SET

58632016000

$62.26

31

LINING DISC CUT OUT

75032111100

$23.46

32

STEEL DISK 1,5MM NITRIDED

75032112100

$22.99

33

HOLDING SCREW GMB-M5X35

75032032000

$7.66

34

BLEEDER SCREW WITH CAP

54732064000

$21.96

99

CLUTCH KIT 690/701

75032011110

$218.97

22

PISTONKIT OUTPUT ZYL. DOT 27MM

26632066000

$88.82

23

O-Ring 23,52x1,78 EPDM

26632067000

$4.11
