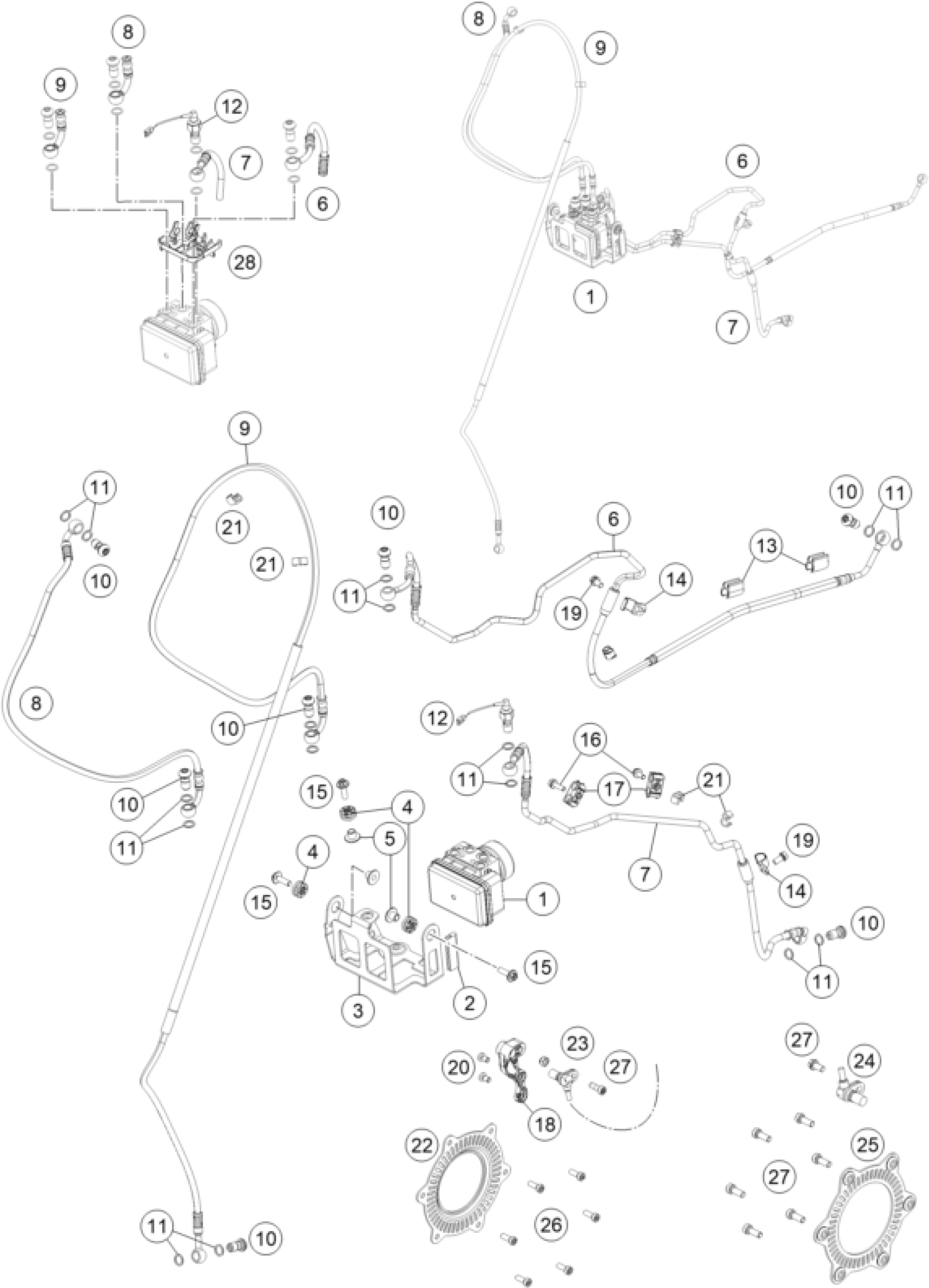

KTM 690 SMC R 2019 ABS Diagram

#

Description
Price

1

ABS modul filled

76942131044

$3,670.90

2

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

3

BRACKET PLATE ABS-MODUL

27042040000

$55.53

4

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

5

Collar bushing 6.5X9X18X8.5

61342041000

$1.49

6

BRAKE HOSE REAR CALIPER

76542001000

$150.62

7

BRAKE HOSE REAR MASTER CYL.

76542003000

$128.74

8

BRAKE HOSE HAND BRAKE CYLINDER

76542005000

$44.68

9

Brake line, brake caliper, fro

76942106000

$115.46

10

banjo bolt M10x1x19.5

62113020100

$8.78

11

sealing ring DIN 7603 10x14x1

0603100141

$2.05

12

BRAKE LIGHT SWITCH REAR

62111051000

$29.07

13

CABLE SUPPORT 10/6MM 06

54813026000

$2.05

14

CLAMP

76542050000

$4.11

15

HH collar screw M6x20 TX30

0024060206

$3.08

16

HH collar screw M5x16 TX30

0025050166

$2.05

17

SUPPORT FOR BRAKE HOSE M5

60113146000

$3.08

18

SENSOR BRACKET

27042024100

$17.85

19

HH collar screw M5x12 TX30

0025050126

$3.08

20

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

21

CLIP 5/7 MM 06

60111094000

$3.08

22

SENSOR WHEEL FRONT 06

60142020000

$83.77

23

ABS SENSOR

27042025000

$254.78

24

ABS-SENSOR

76042125000

$189.98

25

SENSOR WHEEL ABS REAR

76542021000

$34.68

26

SPECIAL SCREW M6X26 SW=8 10.9

59009062026

$2.05

27

SHCS ISO 14580 M6x16 SL

014580060166S

$2.05

28

Anti-rotation lock ABS

76542033000

$7.47
