Description

Price

1

MONOSHOCK SMC 2012

15187L1201

Unavailable

2

Shock abs. upper part cmpl. KT

46180776S1

$795.30

6

HS cylinder-head screw R1/8 l8

50180095

$2.42

7

CYL. SCREW M10X1,25 L=53

76504016000

$4.11

10

Compression cpl.

46180533S1

$406.34

11

Round-wire snap ring 49x1,5

46810010

$3.08

20

MONOSHOCK LOWER PART

46180654S13

Unavailable

21

REPAIR KIT BEARINGS 07

R15006

$100.65

30

Lock nut shock M54x1,5

46180766

$26.83

31

Adjustment nut shock M54x1,5

46180855

$45.99

32

SPRING 220MM 80N/MM (61)

91110004S

Unavailable

32

SPRING 220MM 85N/MM (61)

91110005S

Unavailable

33

Spring retainer 28x73x15

46180396

$61.42

40

REPAIR KIT GASKET 05

R15004

$58.90

41

SHOCK ABSORBER FLUID 5 LT

50180751S1

$149.59

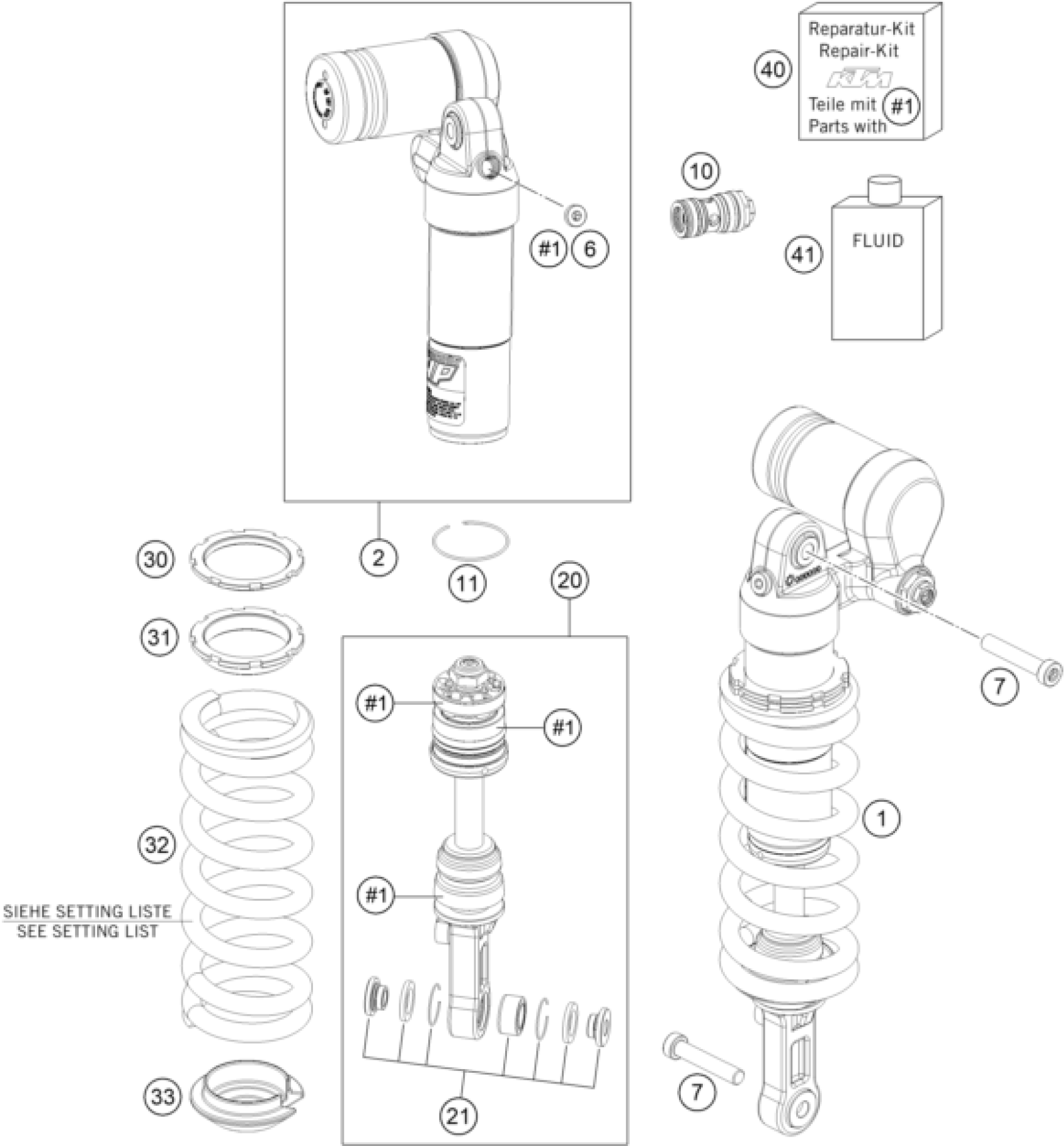

KTM 690 SMC R 2017 SHOCK ABSORBER Diagram

MONOSHOCK SMC 2012

Shock abs. upper part cmpl. KT

HS cylinder-head screw R1/8 l8

CYL. SCREW M10X1,25 L=53

Compression cpl.

Round-wire snap ring 49x1,5

MONOSHOCK LOWER PART

REPAIR KIT BEARINGS 07

Lock nut shock M54x1,5

Adjustment nut shock M54x1,5

SPRING 220MM 80N/MM (61)

SPRING 220MM 85N/MM (61)

Spring retainer 28x73x15

REPAIR KIT GASKET 05

SHOCK ABSORBER FLUID 5 LT
