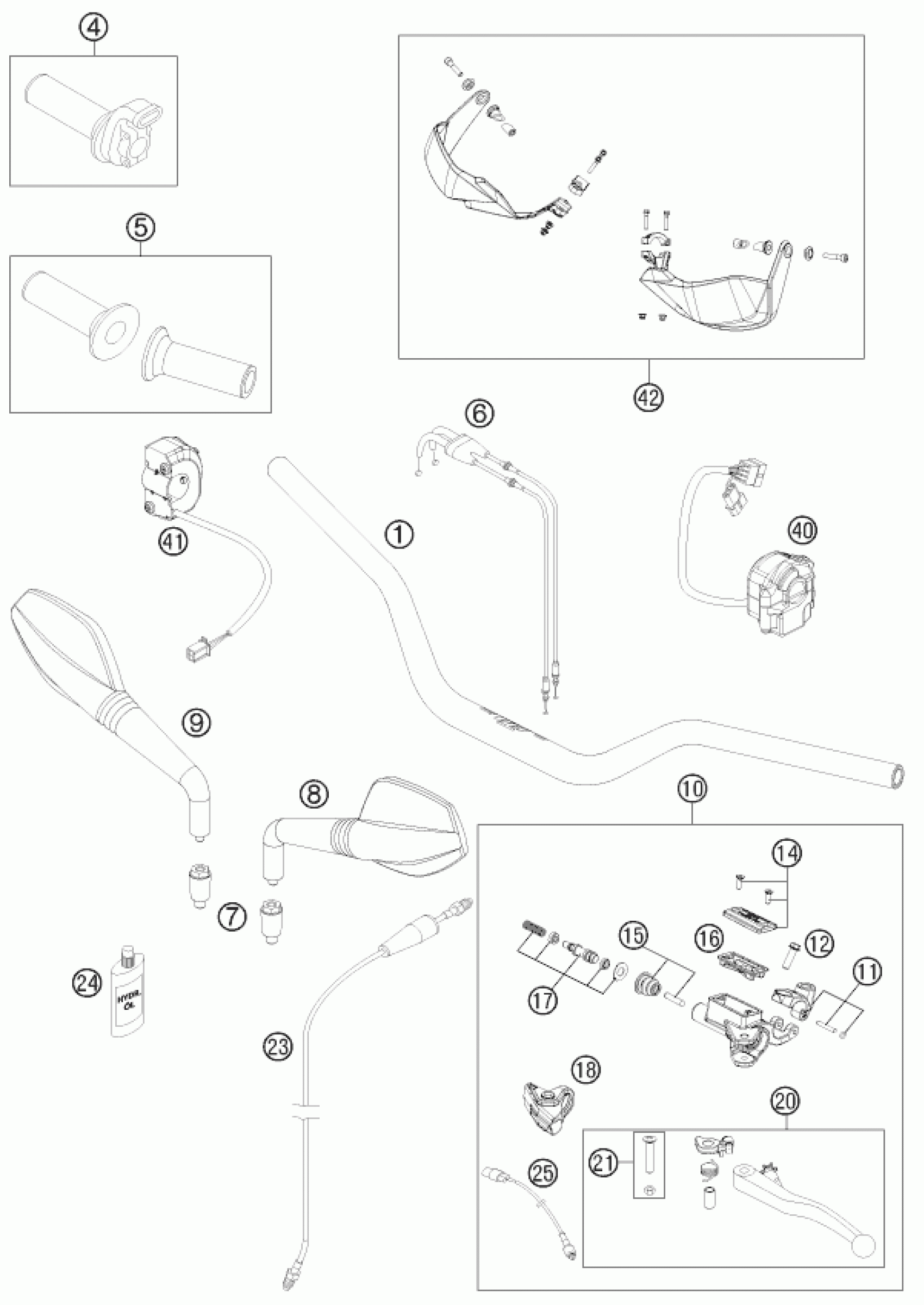

KTM 690 SMC R 2013 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28 MM RENTHAL796

5480200120017

Unavailable

4

THROTTLE GRIP CPL. 08

76502010000

Unavailable

5

GRIP SET DUAL COMPOUND

63002021200

Unavailable

6

THROTTLE CABLE 07

75002091000

Unavailable

7

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

8

REVIEW MIRROR L/S 07

61112040000

Unavailable

9

REVIEW MIRROR R/S 07

61112041000

Unavailable

10

MASTER CYLINDER MAGURA D=11MM

76502013000

Unavailable

11

CLAMP, CYL. PIN, O-RING

76513005000

Unavailable

12

HH collar screw M6x20 TX30

0025060206

Unavailable

14

COVER HYDR. CLUTCH CPL. 13

76502033000

Unavailable

16

RUBBER FOR RESERVOIR 09

50302034100

Unavailable

17

REP. KIT PISTON 11MM 13

76502032000

Unavailable

18

PROTECT.CAP FOR LEVER PERCH 13

76502037000

Unavailable

20

CLUTCH LEVER CPL. LONG 13

76502031000

Unavailable

21

LEVER SCREW SHORT CPL. 09

50302038200

Unavailable

23

CLUTCH PIPE 250/300 2003

54732063100

Unavailable

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

25

CLUTCH SWITCH ATV

83111049000

Unavailable

40

LIGHT SWITCH L/S 08

76511070000

Unavailable

41

START-EMERGENCY STOP SWITCH 08

76511074000

Unavailable

42

HANDGUARDS CLOSED BLACK

6020217900030

Unavailable

15

PUSH ROD CPL. 13

76502046000

Unavailable
