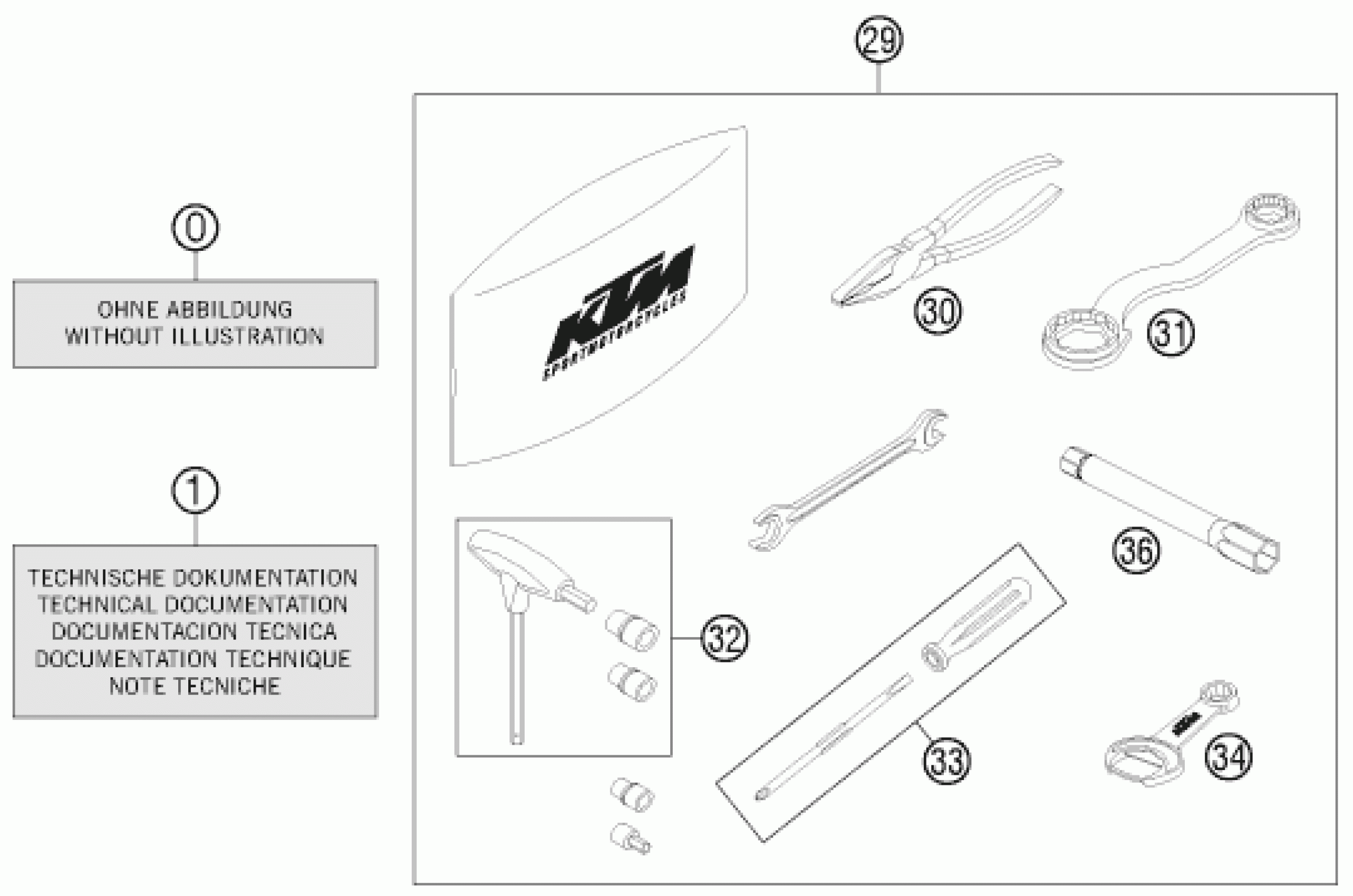

KTM 690 SMC R 2013 ACCESSORY PACK Diagram

#

Description
Price

0

COUNTERSUNK SCREW ISA45 M8X75

0019080756

$4.11

0

HH collar screw M8x12 TX40

0025080126

$3.08

0

FOOTREST L/S+R/S CPL. 08-12

76503040033

$116.02

0

license plate mouning plate

60012081200

$8.41

0

HH collar screw M6x20 TX30

0024060206

$3.08

0

Self lock. nut DIN985-M6-A2

0985060003

$2.05

0

REFLECTOR RED

58412080000

$5.23

0

BRACKET FOR REFLECTOR

58412080050

$6.07

0

WASHER 6MM

40006006000

$1.49

0

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

0

WASHER DIN0125-A 5,3

0125050003

$1.49

0

WASHER DIN0125-A 6,4

0125060003

$1.49

0

Self locking nut DIN 985 M5

0985050003

$2.05

0

DOCUMENTS BAG 2006

312305

$15.80

0

CUSTOMER WELCOME LETTER

3210040

$1.49

0

POWER WEAR FOLDER 2013

3212455GB

Unavailable

0

STICKER FRONT FORK-SET WP 48

52000091

$29.74

0

KTM BALLPOINT PEN ORANGE

312313

$2.37

0

BAG FOR INSTR. MANUAL 245X170

00063099111

Unavailable

0

FOOT REST SUPPORT REAR L/S

7650304803301

Unavailable

0

FOOT REST SUPPORT REAR R/S

7650304903301

$123.61

0

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

0

REVIEW MIRROR L/S 07

61112040000

$48.61

0

REVIEW MIRROR R/S 07

61112041000

$48.61

0

SUPPORT FOR MIRROR LC4 '98

58412040050

$20.19

0

HAND GRIP L/S

76512008000

$8.87

0

HAND GRIP R/S

76512009000

$8.87

0

HEEL PROTECTOR LS 09

76503038150

$5.23

0

HEEL PROTECTOR RS 08

76503039050

$5.79

0

PRINT LABEL 60X51 MM

00063004202

Unavailable

1

OWN. MAN. 690 SMC-R 2013

3211954EN

Unavailable

29

TOOL SET 08

75029099100

$59.18

30

GRIP ORANGE B&F

53012028200

$23.93

31

WRENCH SW=17/21/27/32 B&F

50329080100

$46.32

32

T-WRENCH WS=6/8/10 TX=45 B&F

60029070200

$28.65

33

SCREW DRIVER L=105MM

53012024100

$9.41

34

WRENCH WS=13 B&F + OPENER

50329071100

$23.23

36

SPARK PLUG WRENCH

75029072000

$14.78
