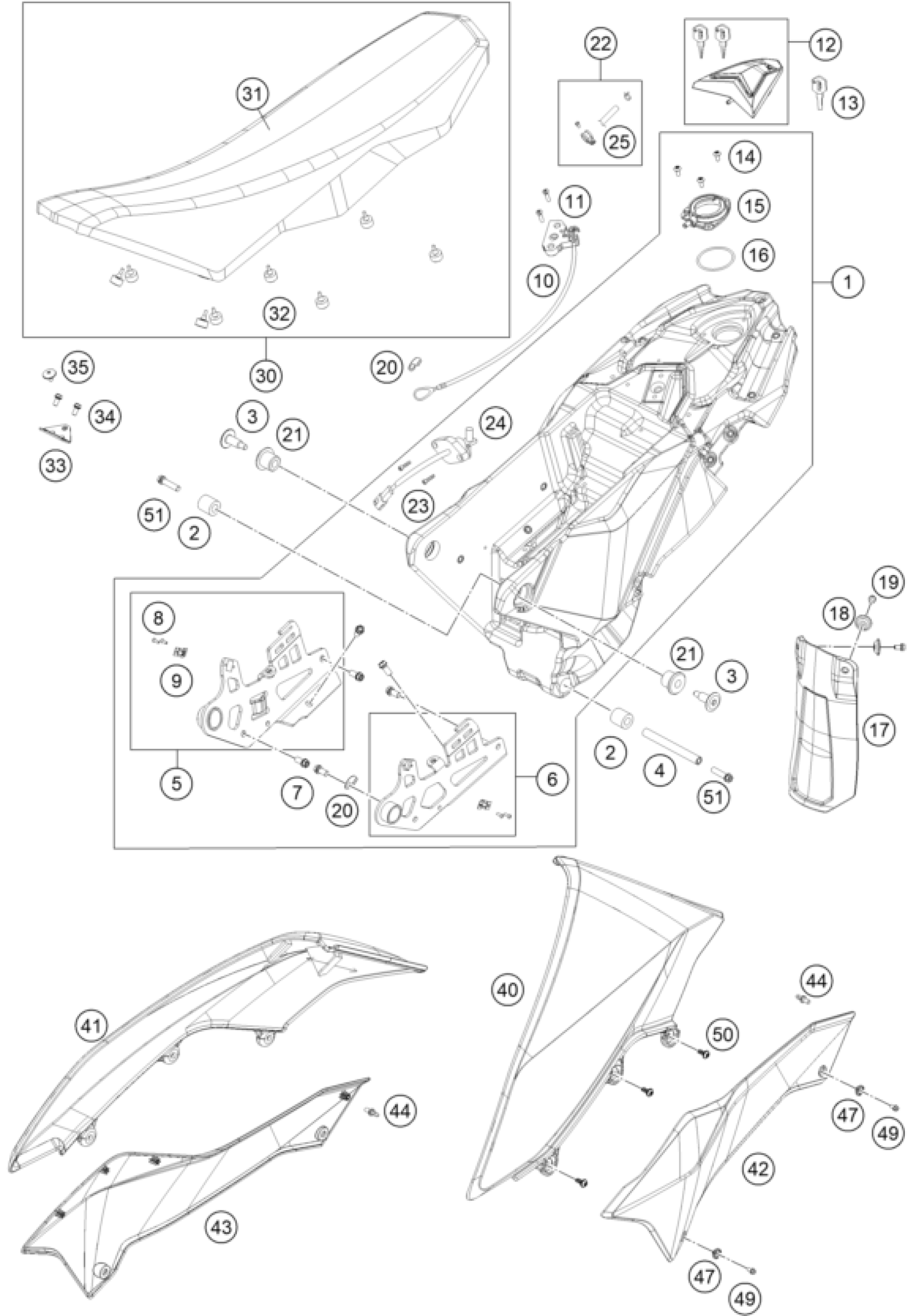

KTM 690 SMC R 2012 TANK, SEAT Diagram

#

Description
Price

1

FUEL TANK BLACK MATT

7650701314433A

$1,797.90

2

RUBBER BUSHING 11,7X24,7 L=26

76507065100

$16.07

3

BEARING BUSHING UP

76507060000

$49.92

4

BEARING BUSHING DOWN

76507061000

$20.37

5

TANK-RETAINING PLATE R/S 08

76507028000

$107.89

6

TANK-RETAINING PLATE L/S 08

76507027000

$84.78

7

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

8

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

$2.05

9

QUICK RELEASE-SPRING HANGER

54806008050

$2.05

10

SEAT LOCK

76507050000

$41.88

11

BHCS ISO 7380 M6X18

0738060181

$2.05

12

TANK CAP

76507008100

$117.61

13

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

14

SCREW TORX M5X10 05

58605083010

$2.05

15

Closure flange

76507108050

$12.15

16

O-ring 50.00X3.00 VITON

0770050030

$5.23

17

SPLASHBACK 08

76506010000

$10.46

18

BUCKET

72210079000

$3.00

19

HH collar screw M6x10 TX30

0025060106

$3.08

20

CLAMP F. CABLE SEAT LOCK

76507053000

$6.82

21

RUBB.BEAR.BOX 12x24x35 L=24,5

76507066000

$13.64

22

TANK BREAT. - MODIFICATION KIT

76507031044

$52.63

23

AH collar screw DIN 912 M5x16

0912050163

$1.49

24

GAS-LEVEL SENSOR ADV. 2006

58207080100

$80.31

30

SEAT

76507140000

$227.10

31

SEAT COVER 2012

76507140050

$45.53

32

SEAT RUBBER 10 MM

75007046010

$3.08

33

BRACKET F. SEAT

76507048000

$19.35

34

COLLAR SCREW M6X12 TX

0023060123

$2.05

35

SCREW FOR SEAT M6X11,5/8

58407011100

$4.11

40

SPOILER L/S BLACK 2012

7650815000030

$15.29

41

SPOILER R/S BLACK 12

7650815100030

$15.29

42

SIDE COVER L/S WHITE 12

7650814100028A

Unavailable

43

SIDE COVER R/S WHITE 12

7650814200028A

Unavailable

44

QUICK RELEASE-NIPPLE 03

54806008051

$2.05

47

collar bushing 6.5x16x5 mm

76508043150

$7.28

49

HH collar screw M6x16 TX30

0025060166

$3.08

50

EJOT PT screw K50x12

0081050121

$2.05

51

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

25

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable
