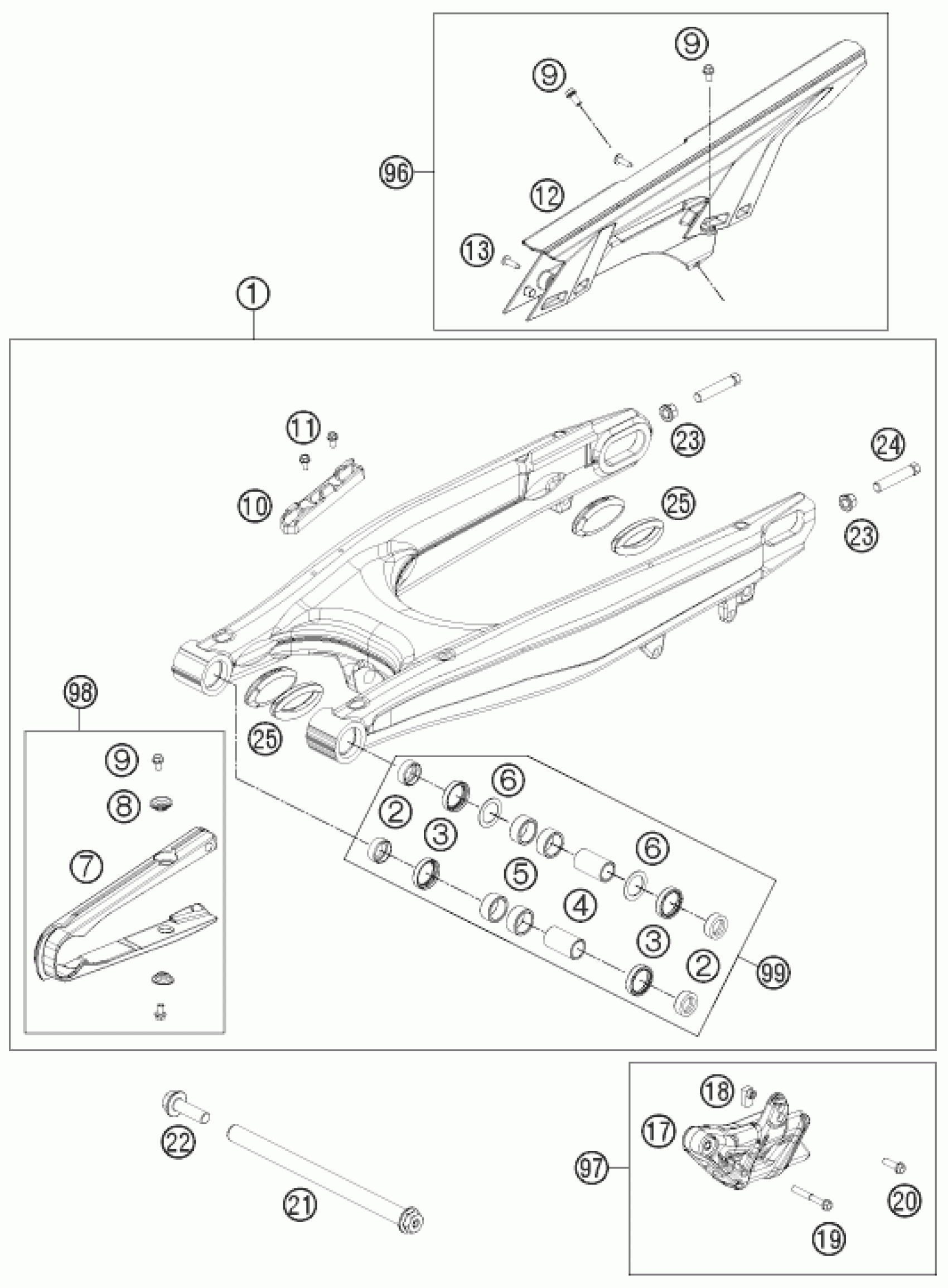

KTM 690 SMC R 2012 SWING ARM Diagram

CHAIN PROTECTION KIT 690 08-14

76504060010

Unavailable

SWING ARM CPL.

76504030144

$753.32

BUCKET FOR SHAFT SEAL RING

76504034000

$5.70

radial shaft seal 25x32x7

0760253270

$6.63

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

NEEDLE BUSH HK2212V

59004031200

$9.81

STOP DISK 22,2X31,7X1

54603036000

$3.08

Chain sliding guard 07

76504066000

$16.17

chain slider bushing

77304066050

$1.49

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

BRAKE LINE GUIDE 08

76504042000

$5.23

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

CHAIN GUARD 08

76504060000

$16.17

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

CHAIN GUIDE CPL.

78004070100

$43.94

INSERTION NUT F. CHAIN GUIDE

77304070030

$8.87

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

HH collar screw M6x20 TX30

0025060206

$3.08

SWINGARM BOLT L=246 M12X1,5

75304037044

$66.75

Special screw M12x40 WS19

76504038000

$18.13

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

screw M10x1.25x50 WS10

50304040100

$5.23

CLOSING COVER SWINGARM SM 03

58404041000

$7.00

Chain guide kit

77304070310

Unavailable

CHAIN GUARD KIT 08-14

76504066010

Unavailable

SWINGARM REPAIR KIT 08-13

76504230010

Unavailable
