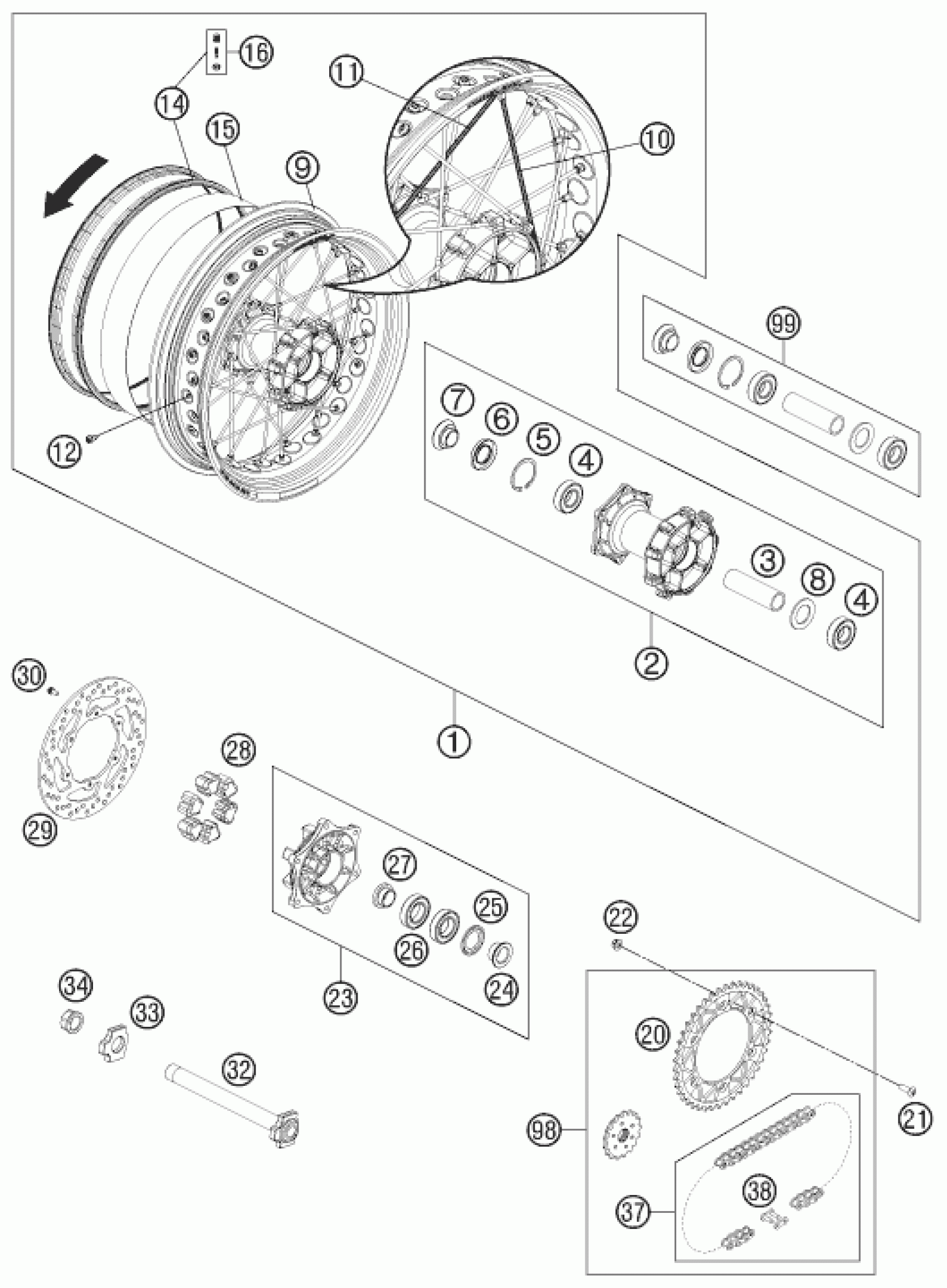

KTM 690 SMC R 2012 REAR WHEEL Diagram

#

Description
Price

1

RE. WHEEL CPL. 5X17'' TUBELESS

7501010104404

Unavailable

2

REAR HUB CPL. 07

75310010044

$303.31

3

BEARING SPACER TUBE L=106MM 07

75310011000

$21.40

4

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

5

CIRCLIP DIN0472-52X2

0472052200

$3.08

6

Radial shaft seal 30X52X7

0760305271

$5.23

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

$22.99

8

Spacer ring 03

60010015000

$10.56

9

RIM TL 5''X17'' ORANGE

7501017000004

Unavailable

10

SPOKE M4,5X196-16G 17'' INOX

75010073196

$5.23

11

SPOKE M4,5X0,75X181

81210171181

$4.11

12

SPOKE NIPPLE QUADRAX M4,5

81210072000

$2.05

14

GASKET RUB. 17X5'' CPL.W. VALV

75010177044

$54.69

15

RIM TAPE 17''X4,50/5,00''

81210073000

$39.26

16

VALVE CPL.

81210076000

$15.04

20

REAR SPROCKET ORANGE 40-T

5841005104004

Unavailable

20

REAR SPROCKET ORANGE 42-T

5841005104204

$101.14

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

SPROCKET SUPPORT CPL. SILVER

7501005004491

$219.06

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

25

NILOS RING 6006AV

60110016000

$9.72

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

28

Rubber damping block 91

54610459000

$8.03

29

REAR BRAKE DISK D=240MM 03

60010060000

$175.86

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

32

WHEEL SPINDLE CPL.

75310085144

$78.91

33

Chain tension adjuster, right,

60010084000

$22.81

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

$14.58

37

chain DID 118 roll

76910065118

$128.83

38

Rivet link chain DID 520 VP2-T

76910066000

$20.00

99

REAR WHEEL REP. KIT

75010015000

Unavailable

98

DRIVETRAIN KIT 690 SMC 16T/42T

00050002024

Unavailable
