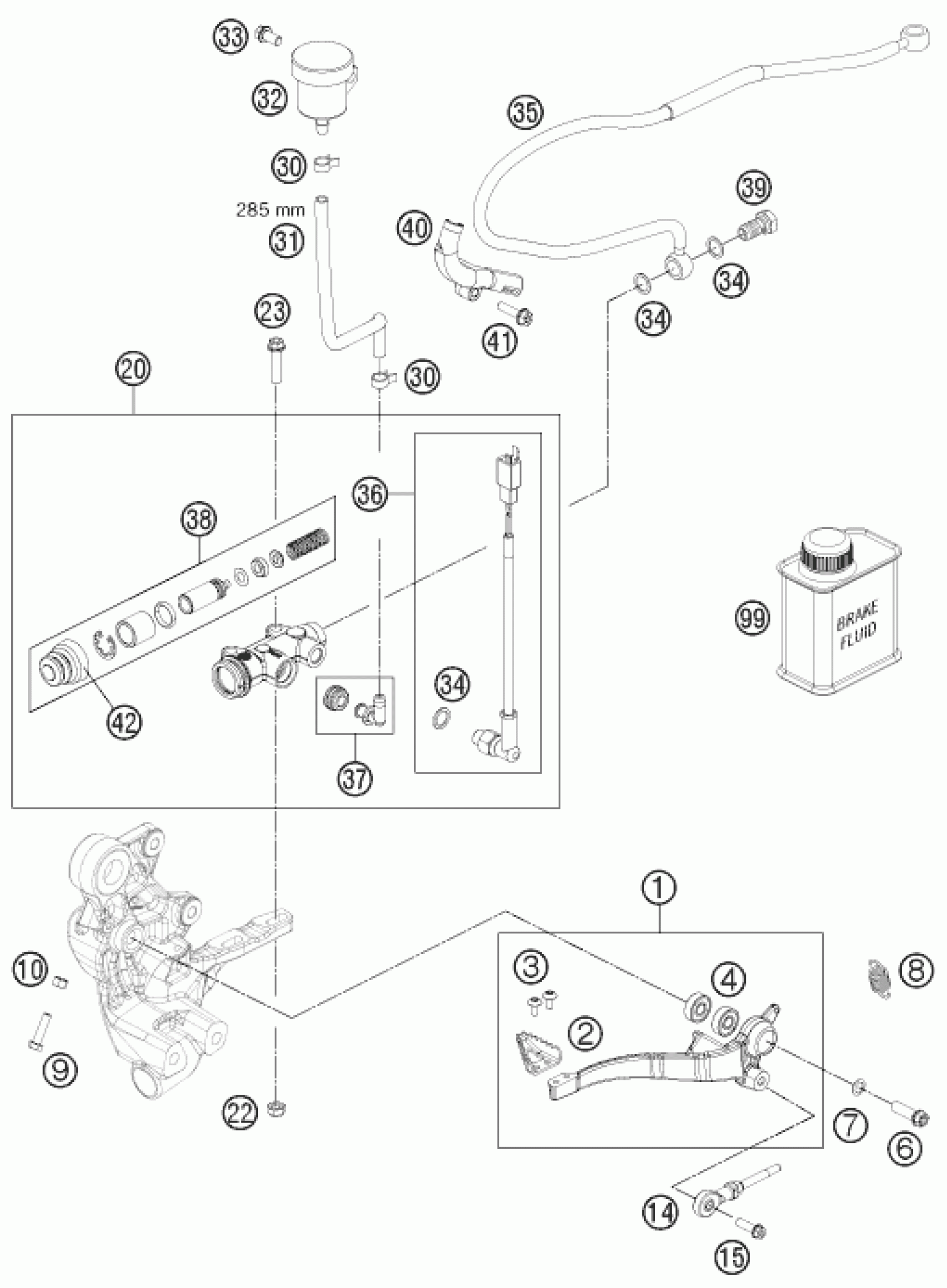

KTM 690 SMC R 2012 REAR BRAKE CONTROL Diagram

FOOT BRAKE LEVER CPL. 11

7651305024401

$123.69

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

SCREW TORX M5X10 05

58605083010

$2.05

Grooved ball bearing 608 2RS C

0625006087

$21.40

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

LOCK WASHER 8MM

36003014000

$2.05

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

HH SCREW DIN933 M5x20

0933050203

$1.49

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

PUSH ROD CPL.

76513056144

$22.52

HH collar screw M6x20 TX30

0025060206S

$2.05

FOOT BRAKE CYLINDER 13MM

76513060000

$149.40

STOP NUT M6 DIN6926 A2-70

0926060000

$3.08

HH collar screw M6x25 TX30

0025060256

$3.08

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

COLLAR SCREW M6X12 TX

0024060123

$1.49

sealing ring DIN 7603 10x14x1

0603100141

$2.05

BRAKE HOSE REAR 805MM

76513072000

$77.60

BRAKE LIGHT SWITCH REAR

76511051000

$42.07

ANGLE PIECE

54513155000

$14.58

REPAIR KIT PISTON 13MM

76513061000

$59.08

banjo bolt M10x1x19 black

54813020100

$9.90

BRACKET FOR BRAKE HOSE 08

76513047000

$5.23

HH collar screw M5x20 TX30

0025050206

$2.05

RUBBER SLEEVE

54513151000

$17.48

Brake fluid DOT5.1 0,25L

00062030000

$12.52
