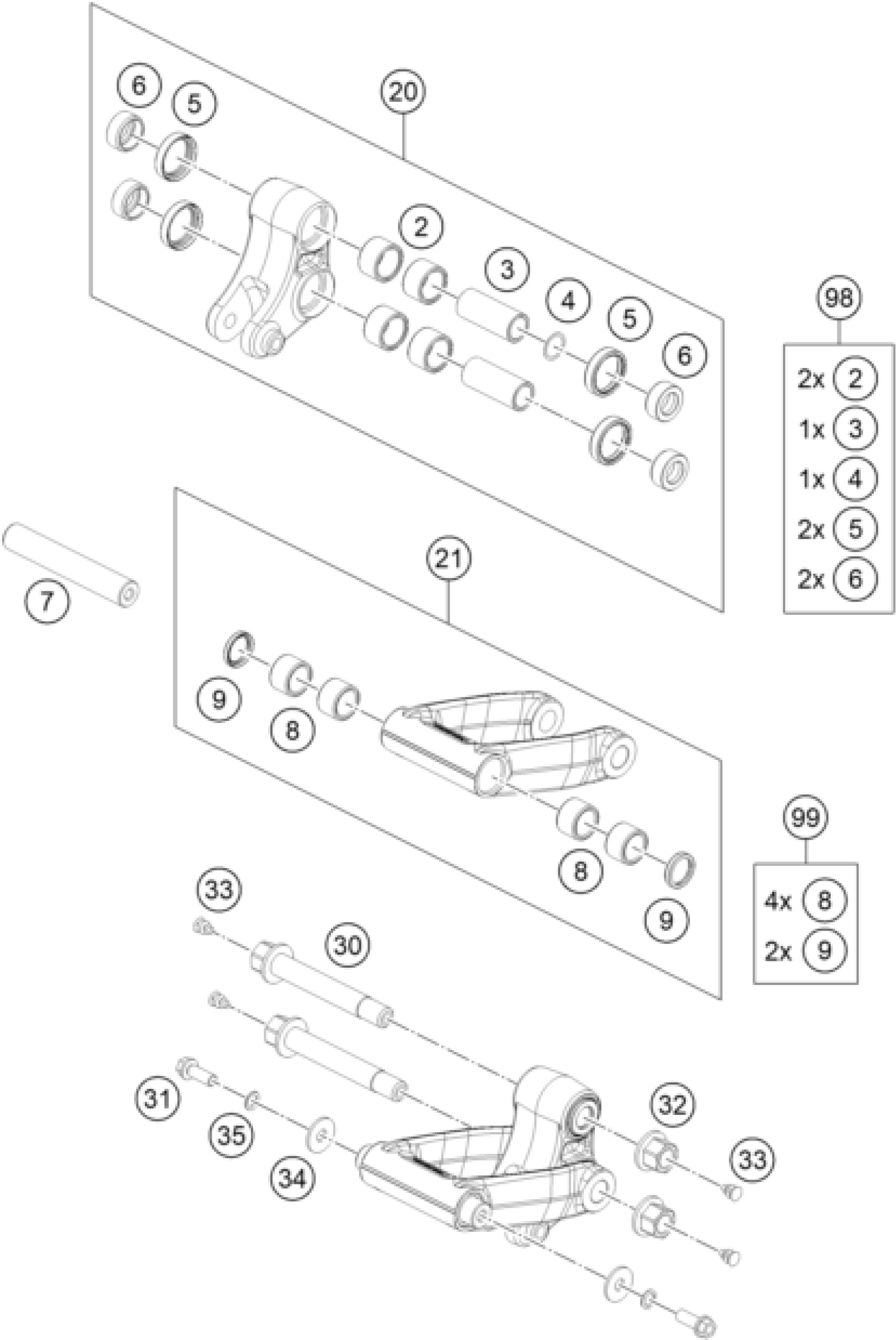

KTM 690 SMC R 2012 PRO LEVER LINKING Diagram

#

Description
Price

2

Needle bushing HK 2016 / 20x26

54603097000

$15.04

3

Bushing sleeve 15x20x48

54603081000

$24.77

4

Steel washer 15.2x19x0.1

54603090010

Unavailable

98

TRIANGLE LEVER REP. KIT REAR

76504080100

Unavailable

99

PULL ROD REP. KIT 690 END/SMC

76504083010

Unavailable

4

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

4

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

5

radial shaft seal 25x32x7

0760253270

$6.63

6

BUCKET FOR SHAFT SEAL RING

76504089000

$6.35

7

PULL ROD ANCHOR BOLT

76504084000

$64.88

8

NEEDLE BEARING HK 1816

56503195100

$13.92

9

SHAFT SEAL RING 18X24X4

0760182442

$5.79

20

CANTILEVER CPL. 07

7650408104401

$204.01

21

PULL ROD CPL. 08

7650408304401

$137.34

30

Bolt cmpl. M14X1,5

76504082044

$30.00

31

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

32

Self locking nut M14x1.5 WS19

54603015000

$5.51

33

PLASTIC CAP SFL10

54403135000

$2.05

34

WASHER DIN9021-A 8,4

0021080003

$1.49

35

LOCK WASHER 8MM

36003014000

$2.05
