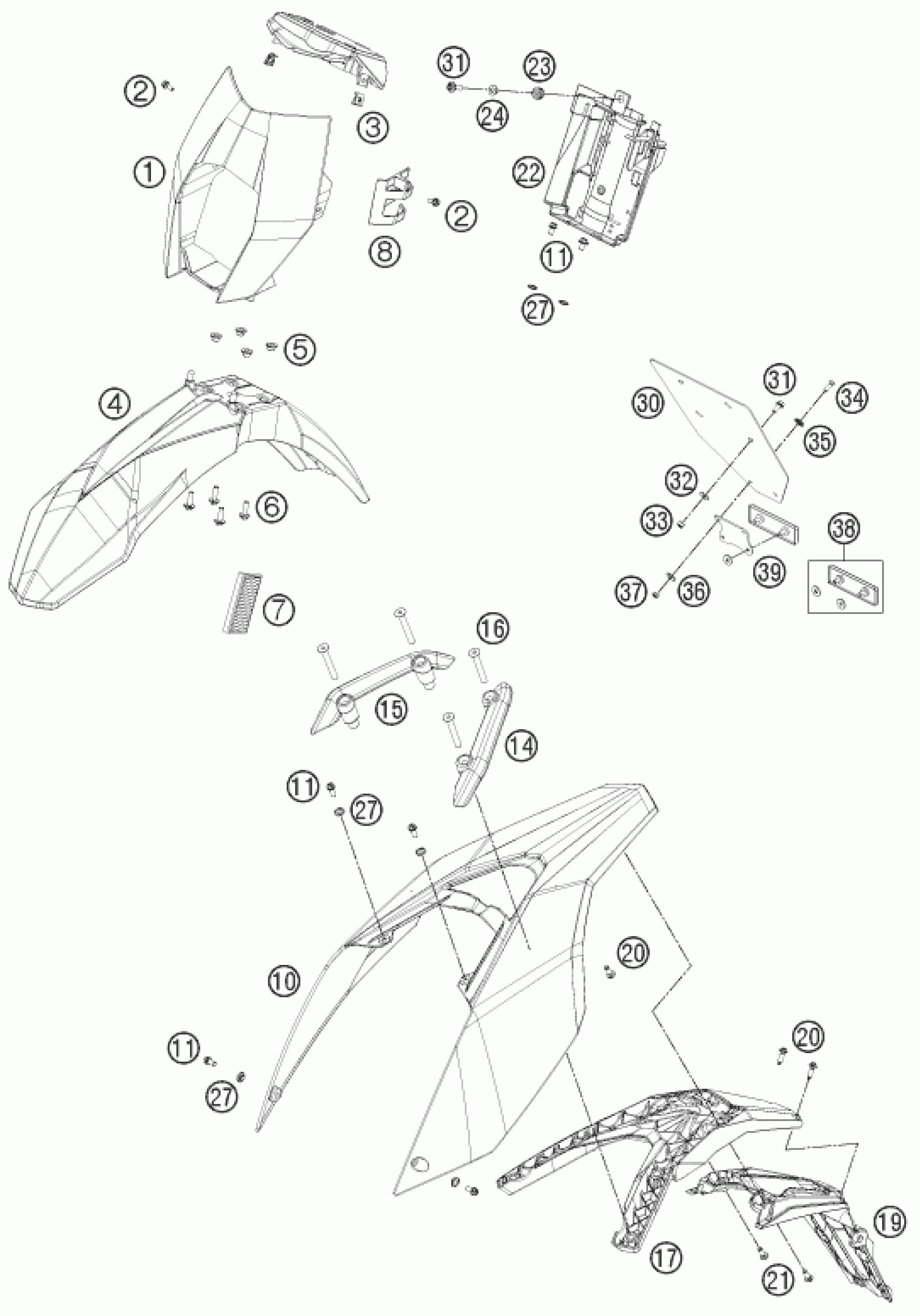

KTM 690 SMC R 2012 MASK, FENDERS Diagram

#

Description
Price

1

HEADLIGHT MASK 08

7650800100004

$42.07

2

HH collar screw M5x20 TX30

0025050206

$2.05

3

RANGE CHANGE METAL NUT M5

54603048200

$5.23

4

FENDER FRONT SMR 08

7730821000004

$28.21

5

SPACER BUSHING 03

54808020000

$4.11

6

HH collar screw M6x20 TX30

0024060206

$3.08

8

BRAKE HOSE GUIDE

76513025000

$5.23

7

REFLECTOR YELLOW '99

58412080100

$7.75

10

REAR FENDER

7650801300030

Unavailable

11

HH collar screw M6x16 TX30

0025060166

$3.08

14

HAND GRIP L/S

76512008000

$8.87

15

HAND GRIP R/S

76512009000

$8.87

16

COUNTERSUNK SCREW ISA45 M8X75

0019080756

$4.11

17

NUMBER PLATE CARRIER TOP 08

76508016000

Unavailable

19

NUMBER PLATE LO. PART 08

76508016050

$13.08

20

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

21

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

22

COVER 08

76514064000

$15.98

23

rubber grommet D=8mm open

31008060000

$2.05

24

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

27

COLLAR BUSHING

76508043050

$5.23

30

license plate mouning plate

60012081200

$8.41

31

HH collar screw M6x15 TX30

0024060156

$3.08

32

Washer DIN9021-A 6.4

0021060003

$2.05

33

Self lock. nut DIN985-M6-A2

0985060003

$2.05

34

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

35

WASHER 6MM

40006006000

$1.49

36

WASHER DIN0125-A 5,3

0125050003

$1.49

37

Self locking nut DIN 985 M5

0985050003

$2.05

38

REFLECTOR RED

58412080000

$5.23

39

BRACKET FOR REFLECTOR

58412080050

$6.07
