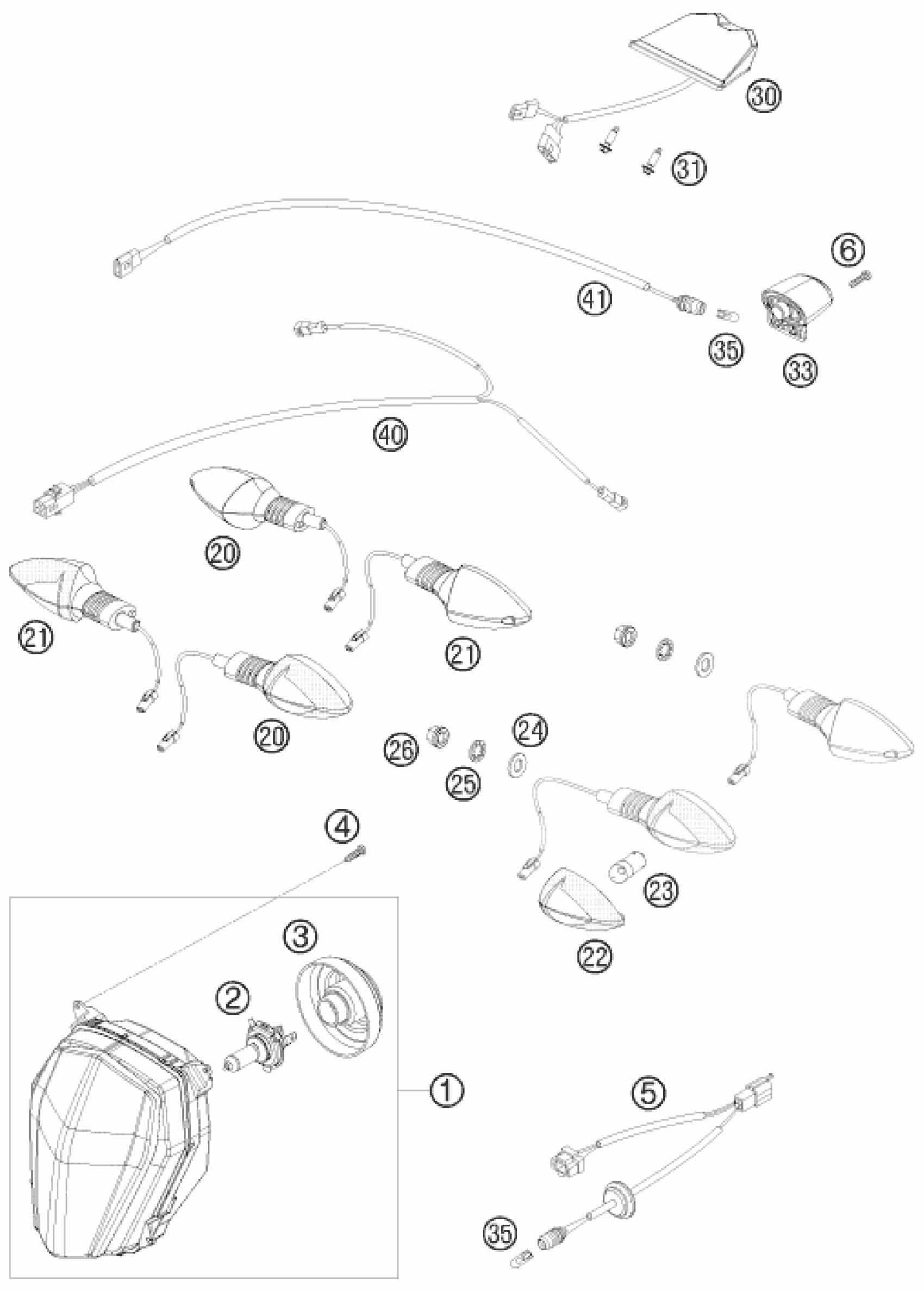

KTM 690 SMC R 2012 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT

76514001000

Unavailable

2

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

3

RUBBER CAP FOR HEAD LIGHT

76514001050

Unavailable

4

EJOT PT screw K50x12

0081050121

Unavailable

5

WIRING HARNESS HEAD LIGHT

76511079000

Unavailable

6

SCREW FOR PLASTIC 50X18 T20

0081250181

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

23

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

24

Washer DIN0433-M10

0433100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

30

REAR LIGHT

76514040000

Unavailable

31

SCREW FOR PLASTIC K60X20 SW6

0017060205

Unavailable

33

LICENSE PLATE ILLUMINATION 07

75014047000

Unavailable

35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

40

WIRING HARNESS FLASHER REAR 08

76511076000

Unavailable

41

WIRING HARN. LIC. PLATE ILLUM.

76511078000

Unavailable
