Partiron

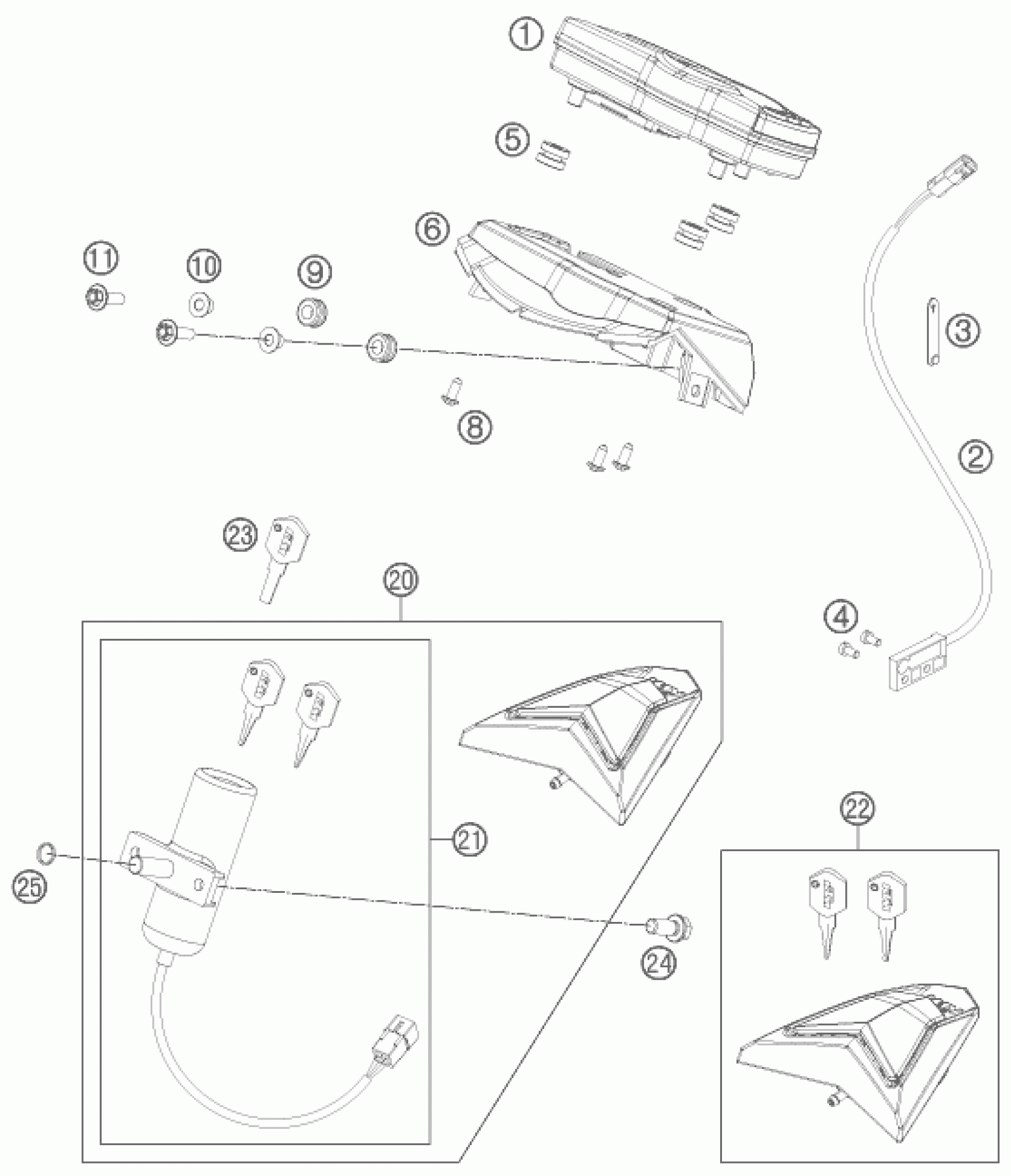

KTM 690 SMC R 2012 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H 17'' 1

75014069100

$552.76

2

SPEEDOMETER SENSOR 10

76514068100

$86.39

3

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

4

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

$1.49

5

rubber grommet 16x10.8x3

58214069051

$5.23

6

SPEEDOMETER BRACKET

76514060000

$15.51

8

EJOT DELTA PT SCREW 45X12-Z

0081645121

$1.49

9

rubber grommet D=8mm open

31008060000

$2.05

10

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

11

HH collar screw M6x15 TX30

0024060156

$3.08

20

LOCK SET

76511066144

$200.08

21

IGNITION LOCK 08

76511066000

$135.19

22

TANK CAP

76507008100

$117.61

23

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

25

o-ring 10.00x2.00 silicone

0770100020

$2.05
