Description

Price

16

HH collar screw M6x30 TX30

0025060306

$3.08

17

PULSER COIL

75039034000

$66.75

18

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

1

IGNITION COVER 07

75030002000

$78.91

2

DOWEL 9,8 X 7 X 10

49030090000

$2.05

3

generator line bracket

60039040020

$3.08

4

o-ring 24.00x2.50 Viton

07700240251

$3.08

5

threaded plug M24x1.5 PA 6.6

6003009400030

$4.11

6

IGNITI.COVER GASKET 07

75030040000

$7.28

7

STATOR

75039004000

$266.75

9

ROTOR

75039005100

$617.71

10

HH collar screw M5x20 TX30

0025050206

$2.05

11

IGNITIONCOIL 07

75039006000

$63.57

12

SPARK PLUG CONNECT.

75039090000

$19.91

14

SPARK PLUG M12X1,25 LKAR8AI-9

75039093000

$20.66

15

HH collar screw M6x25 TX30

0025060256

$3.08

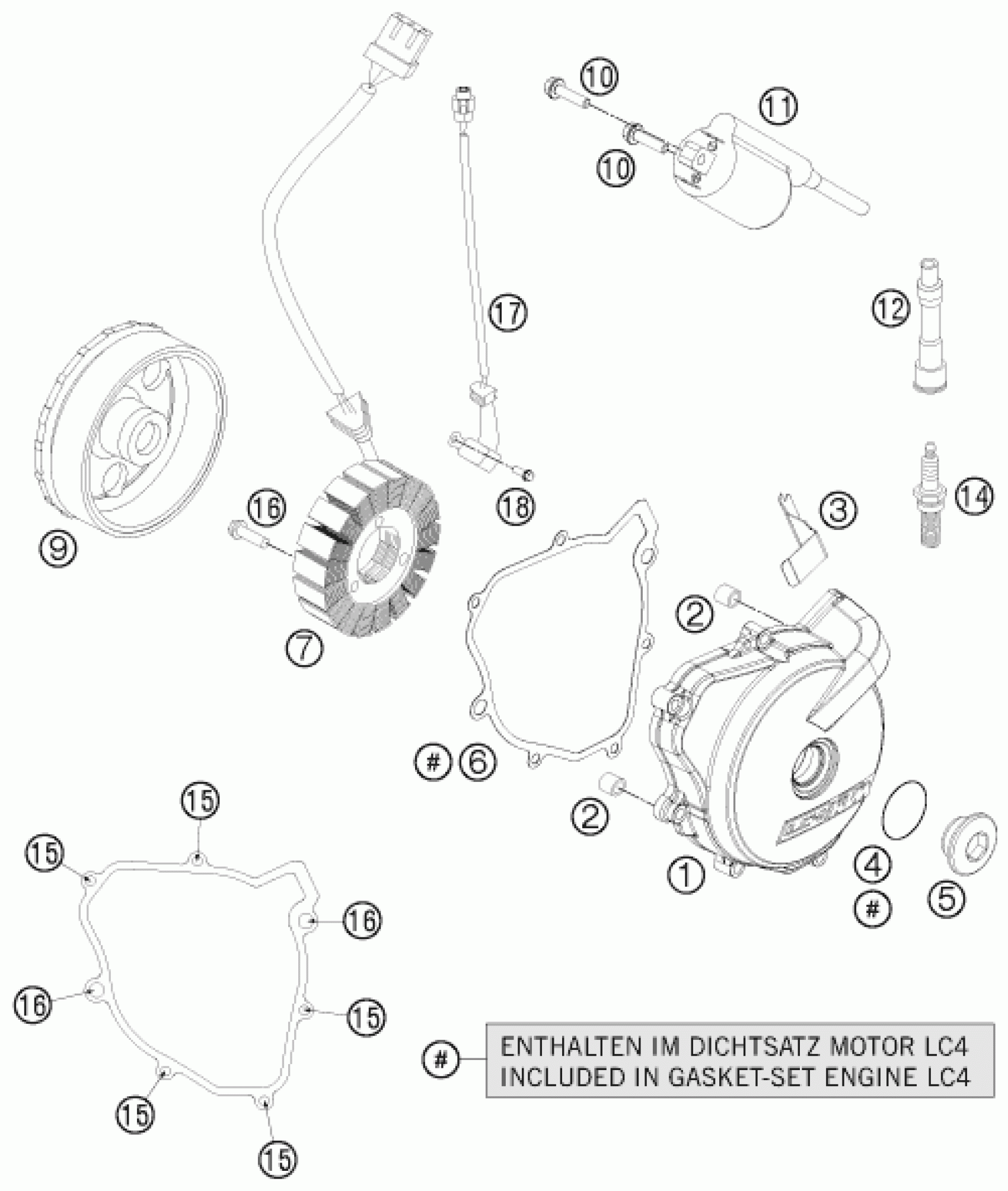

KTM 690 SMC R 2012 IGNITION SYSTEM Diagram

HH collar screw M6x30 TX30

PULSER COIL

SPECIAL SCREW M6X16 WS=8 10.9

IGNITION COVER 07

DOWEL 9,8 X 7 X 10

generator line bracket

o-ring 24.00x2.50 Viton

threaded plug M24x1.5 PA 6.6

IGNITI.COVER GASKET 07

STATOR

ROTOR

HH collar screw M5x20 TX30

IGNITIONCOIL 07

SPARK PLUG CONNECT.

SPARK PLUG M12X1,25 LKAR8AI-9

HH collar screw M6x25 TX30
