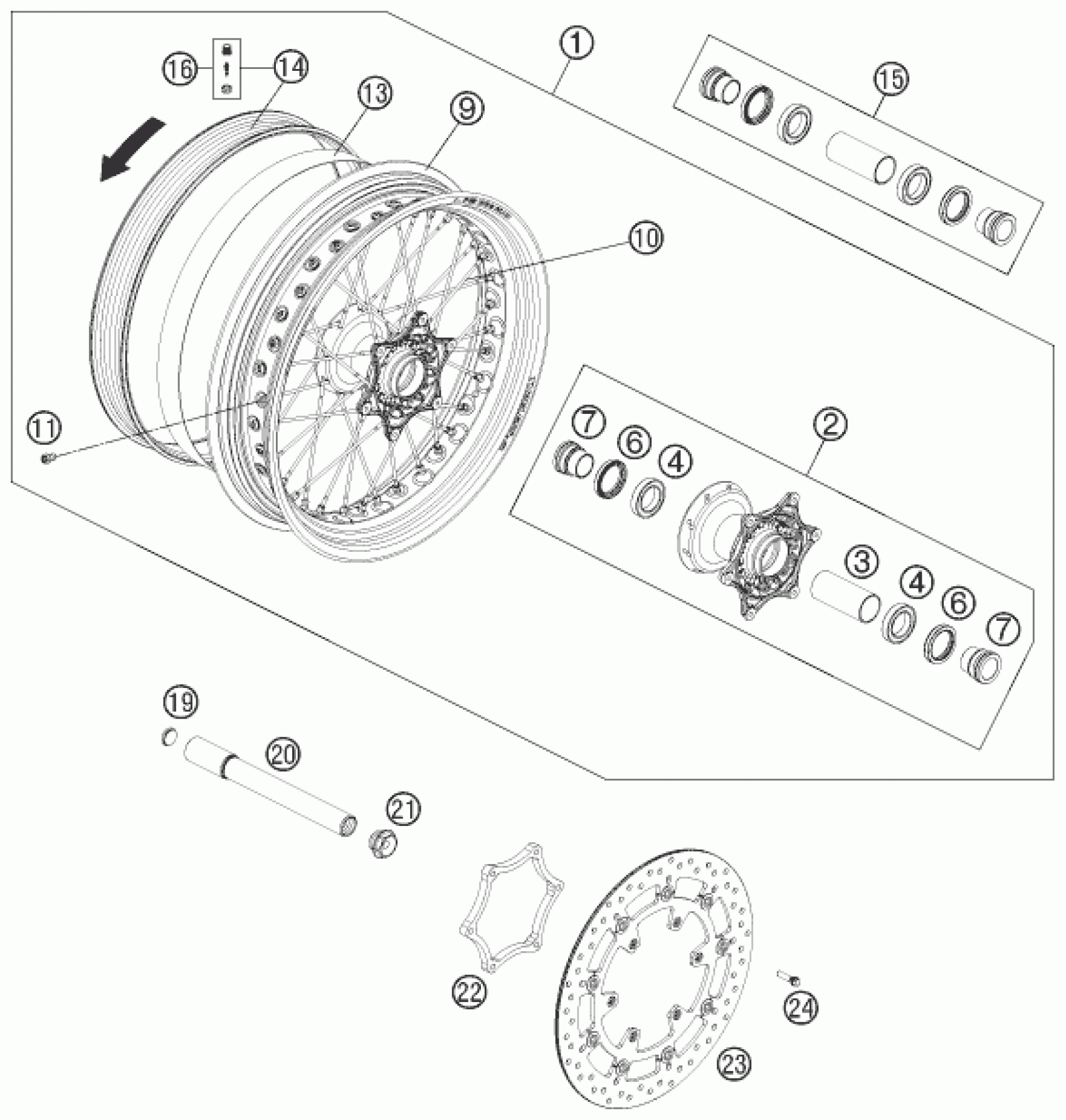

KTM 690 SMC R 2012 FRONT WHEEL Diagram

#

Description
Price

1

FR.WHEEL CPL.3,5X17TUBELESS

7500910104404

Unavailable

2

FRONT HUB CPL. 07

75009010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSHING FRONT WHEEL 07

75009012000

Unavailable

9

TL-RIM 3,5X17'' ORANGE

7500917000004

Unavailable

10

SPOKE M4.5X170-9G 17'' INOX

75009073170

Unavailable

11

SPOKE NIPPLE QUADRAX M4,5

81210072000

Unavailable

13

RIM TAPE 17''X3,5''

81209073000

Unavailable

14

GASKET RUBBER 17'' CPL. W.VALV

75009177044

Unavailable

15

FRONT WHEEL REP. KIT

75009015000

Unavailable

16

VALVE CPL.

81210076000

Unavailable

20

WHEEL SPINDLE FRONT D=26MM 07

75009081000

Unavailable

21

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

22

Brake discs adapter 10.1 mm

7500906100033

Unavailable

23

BRAKE DISC FRONT 320MM 07

75009060000

Unavailable

24

SPECIAL SCREW M6X23 WS=8 10.9

59009062023

Unavailable

19

AUXILIARY SCREW FRONT 06

54809081070

Unavailable
