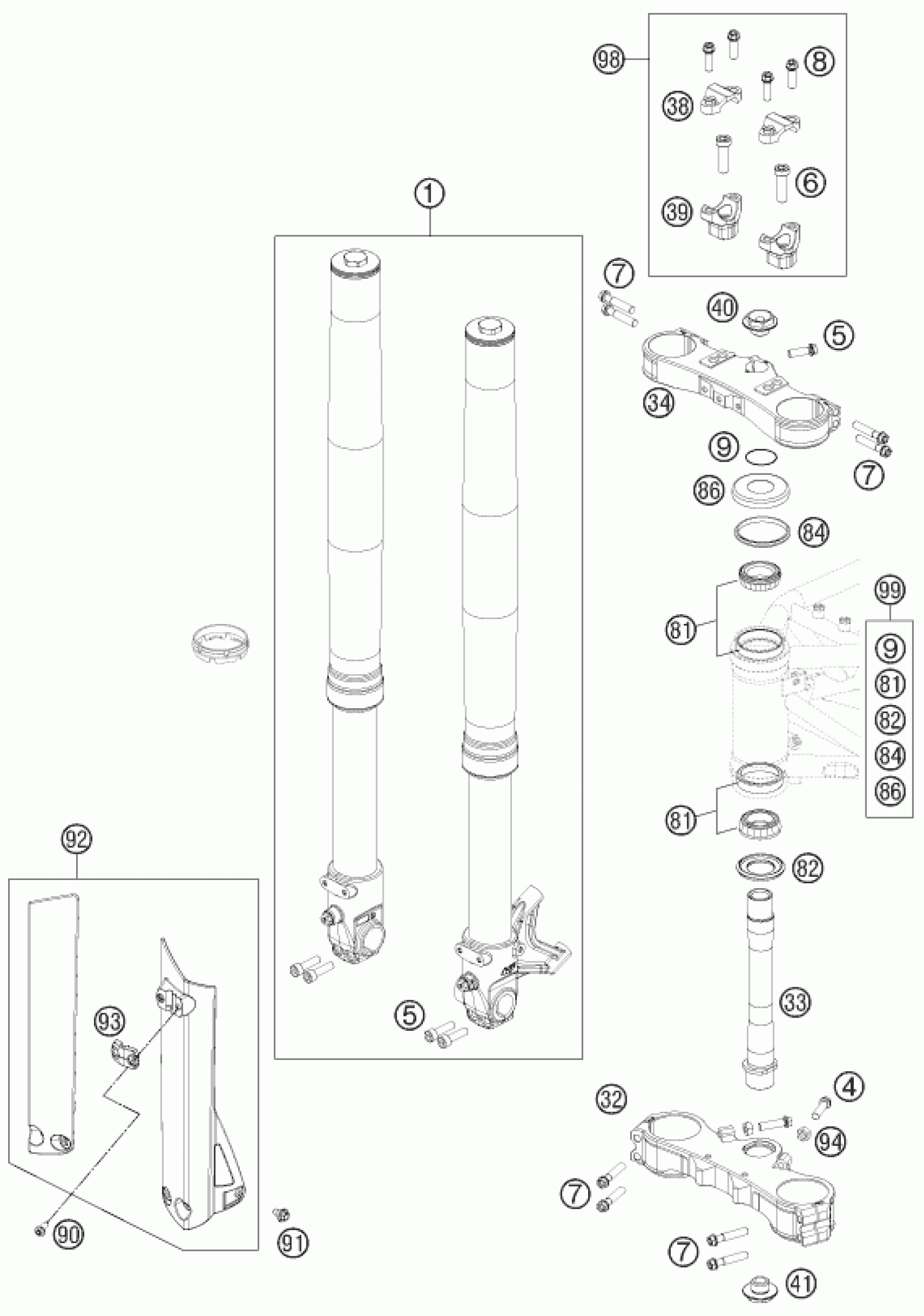

KTM 690 SMC R 2012 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK 690 SMC 2012

14187L1201

Unavailable

4

HH SCREW DIN0933-M 8X25

0933080253

$2.05

5

HH collar screw M8x30

0025080306

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

7

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

8

HH collar screw M8x25

0025080256

$2.05

32

BOTTOM TRIPLE CLAMP

7650113113504

Unavailable

33

FORK TUBE L=237MM 08

76501033000

$120.42

34

TOP TRIPLE CLAMP

7650113413504

Unavailable

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H42mm

59401039042

$36.27

40

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

41

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER

54201086000

$8.50

90

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT. L/S+R/S BLACK 08

7650109400030

$47.02

93

CLAMP FOR SPEEDO CABLE

7650108500030

Unavailable

94

Hexagon nut DIN934 M8

0934080003

$2.05

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

9

O-RING 25X3,55 NBR70 05

0770025035

$1.49

98

HANDLEBAR SUPPORT KIT 690 SMC

59401039010

Unavailable
