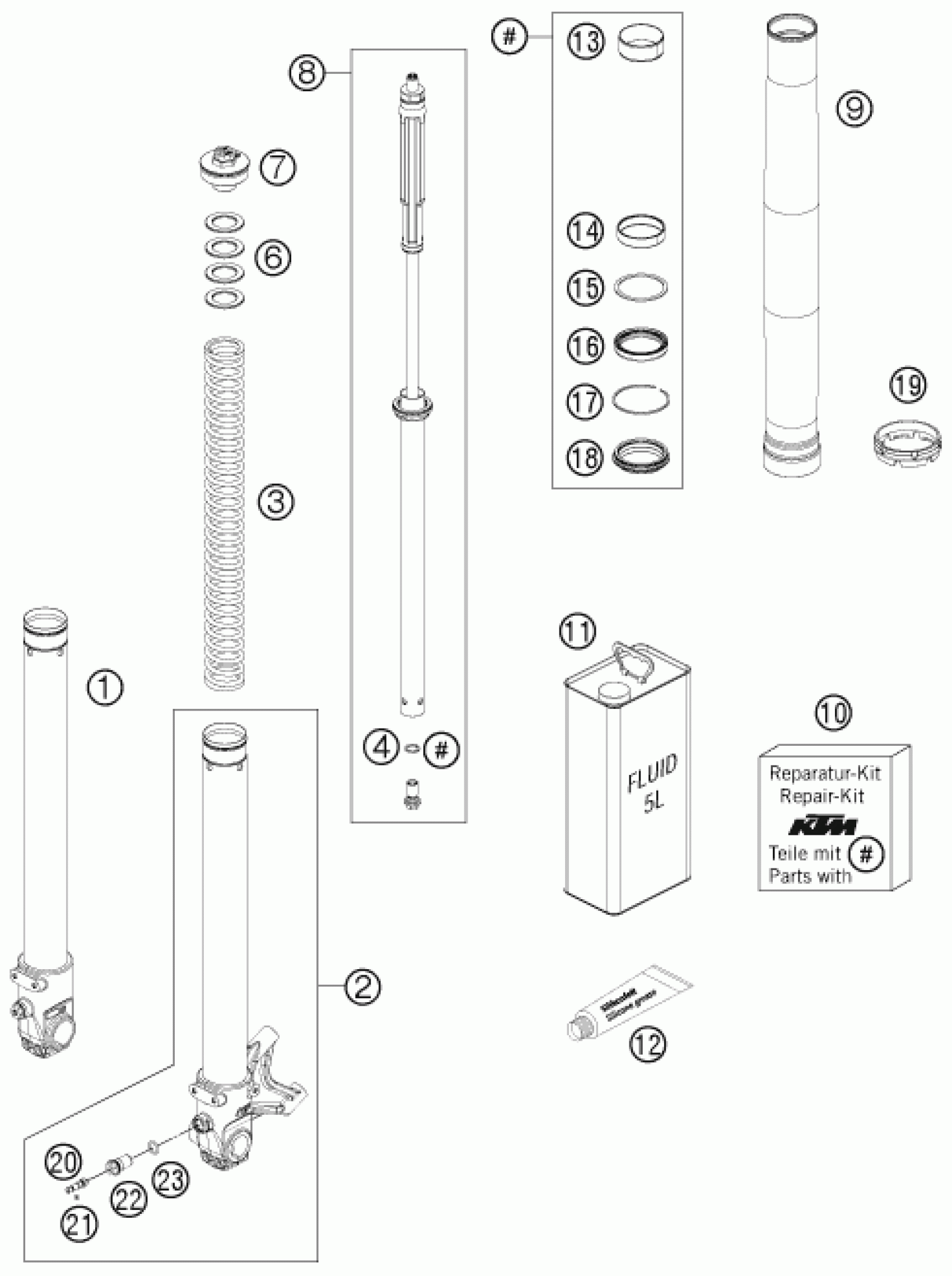

KTM 690 SMC R 2012 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

20

Adjustment screw slot compress

48600598

Unavailable

21

O-ring 3x1,5 NBR70

48600046

Unavailable

22

Adjuster housing compression M

48600596

Unavailable

23

O-ring 11x2 NBR70

48600604

Unavailable

1

AXLE CLAMP R/S CPL. 09

48600536S3

Unavailable

2

AXLE CLAMP L/S CPL. 09

48600535S3

Unavailable

3

SPRING C=5,3 L=450 D=5,5

91410043S

Unavailable

3

SPRING C=5,6 L=450 D=5,5 05

91410044S

Unavailable

4

SEALING RING COPPER 12X18X1,5

48600704

Unavailable

6

Preload bush 26,5x42x10

48600038

Unavailable

6

Preload bush 26,5x42x5

48600037

Unavailable

6

Preload bush 42x26,5x2,5

48600036

Unavailable

6

Preload bush 26,5x42x1,5

48600053

Unavailable

7

SCREW CAP M51X1,5 CPL. 12

48600558S1

Unavailable

8

CARTRIDGE CPL. 12

48600705S2

Unavailable

9

OUTER TUBE

48601059

Unavailable

10

REPAIR-KIT GASKET 12

R14022

Unavailable

11

Fork Fluid Viscosity 4.0 5L

48601166S1

Unavailable

12

SILICONE GREASE F. DUST STRI

T511

Unavailable

13

Guide bushing 47x49x20

48601008

Unavailable

14

Guide bushing 48x52x12

48601009

Unavailable

15

Supportwasher 50x57,6x1,5

48600013

Unavailable

16

OIL SEAL RING 48X57,8X9,5 03

48600347

Unavailable

17

Snap ring SB58x1,5 acc drawing

48600070

Unavailable

18

DUST CAP D=48 58,4X11,8

48600400

Unavailable

19

Fork protection ring 62,1mm

48600698

Unavailable
