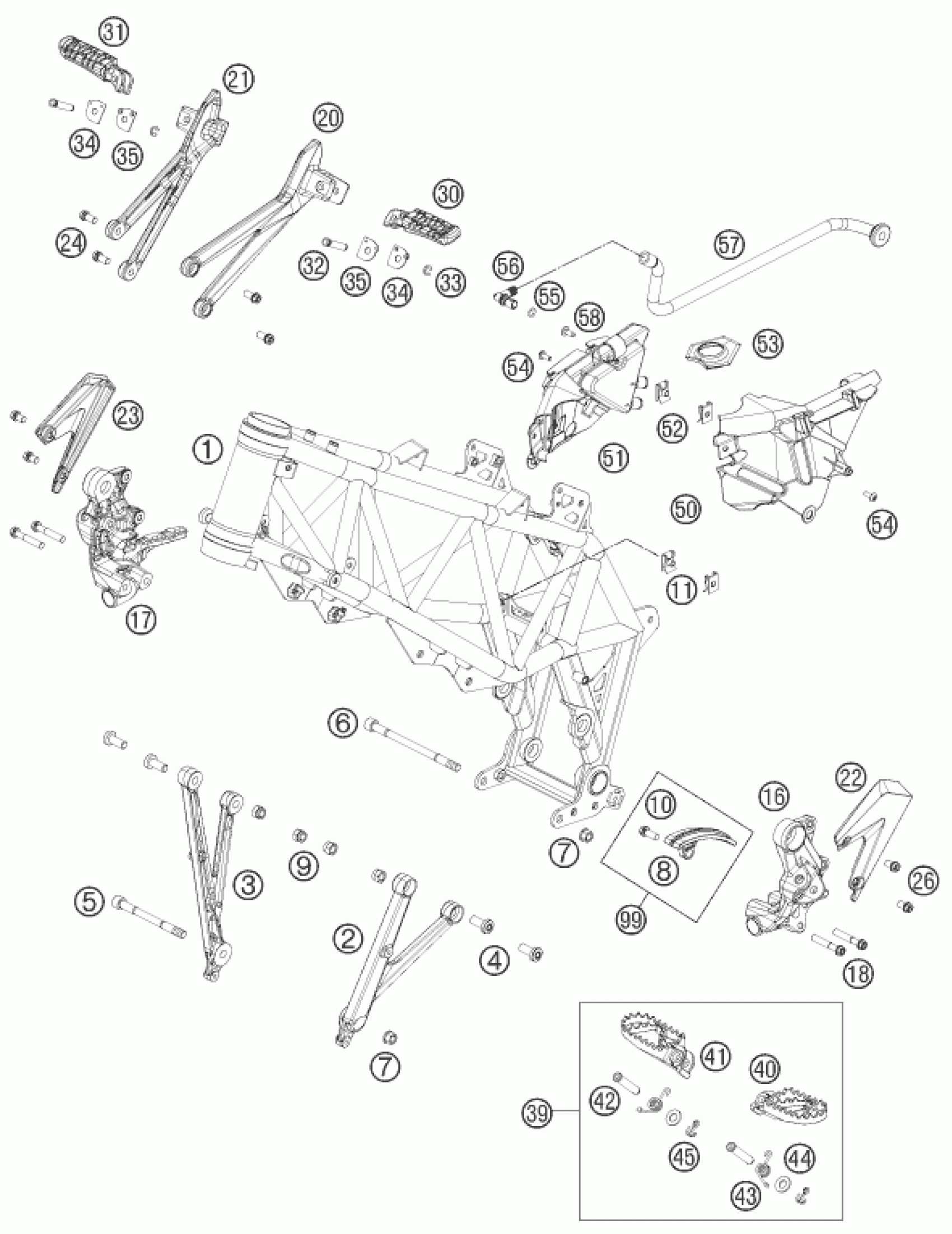

KTM 690 SMC R 2012 FRAME Diagram

#

Description
Price

1

FRAME ''765LA'' ORANGE

7650300120004

$1,796.97

2

ENGINE SUPPORT L/S

7650300500001

$94.33

3

ENGINE SUPPORT R/S

7650300600001

$94.33

4

AH collar screw M10x24 ISA45

0035100249

$3.08

5

SPECIAL SCREW M10X115 ISK8 07

75003015000

$7.38

6

SPECIAL SCREW M10X152 ISK8 07

75003014000

$6.72

7

COLLAR NUT M10 WS=13

54630044000

$1.49

8

CHAIN SLID. GUARD 08

76504067000

$6.82

9

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

10

HH collar screw M8x20

0025080206

$2.05

11

RANGE CHANGE METAL NUT M4

54603048500

$2.05

16

FOOT REST BRACKET L/S

7650303804401

$224.11

17

FOOTREST CARRIER R/S

7650303914401

Unavailable

18

HH collar screw M8x45 TX40

0025080456

$4.11

20

FOOT REST BRACKET REAR L/S

7650304800001

$120.23

21

FOOT REST BRACKET REAR R/S

7650304900001

$124.35

22

HEEL PROTECTOR LS 09

76503038150

$5.23

23

HEEL PROTECTOR RS 08

76503039050

$5.79

24

HH COLLAR SCREW M8X16 TX40

0025080166

$4.11

26

HH collar screw M8x12 TX40

0025080126

$3.08

30

FOOTREST CPL. L/S REAR 03

60003050000

$61.42

31

Footrest cmpl. r/s rear 03

60003051000

$61.89

32

BOLT FOR FOOTREST REAR 03

60003044000

$8.87

33

retaining washer DIN 6799 - 6

0799060003

$1.49

34

ENGAGE PANEL FOOTREST R/S 03

60003052000

$5.23

35

ENGAGE PANEL FOOTREST L/S 03

60003152000

$5.23

39

FOOTREST L/S+R/S CPL. 08-12

76503040033

$116.02

40

FOOT PEG L/S SILVER 02

59003040250

$43.66

41

FOOT PEG R/S SILVER 02

59003041250

$43.66

42

BOLT FOR FOOT PED 08

76503044000

$12.43

43

FOOTREST SPRING L/S & R/S

54603041000

$5.23

44

washer DIN 125 A 10.5

0125100003

$2.05

45

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

50

COVER FRAME L/S

76503083100

$13.36

51

COVER FRAME R/S

76503084100

$48.70

52

clip nut M5

69008021080

$3.08

53

COVER FOR IGNITION LOCK

76503085000

$10.56

54

Oval head screw M5x14 TX25

58605083014

$3.08

55

O-RING 8X2 SILICONE

0770080020

$1.49

56

ANGLE CONNECTOR LC8 03

60038082000

$2.05

57

VENTILATION OIL SEPARATOR FOAM

76530087000

$29.39

58

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

99

CHAIN SLIDING BELOW 08-13

76504067010

$19.16
