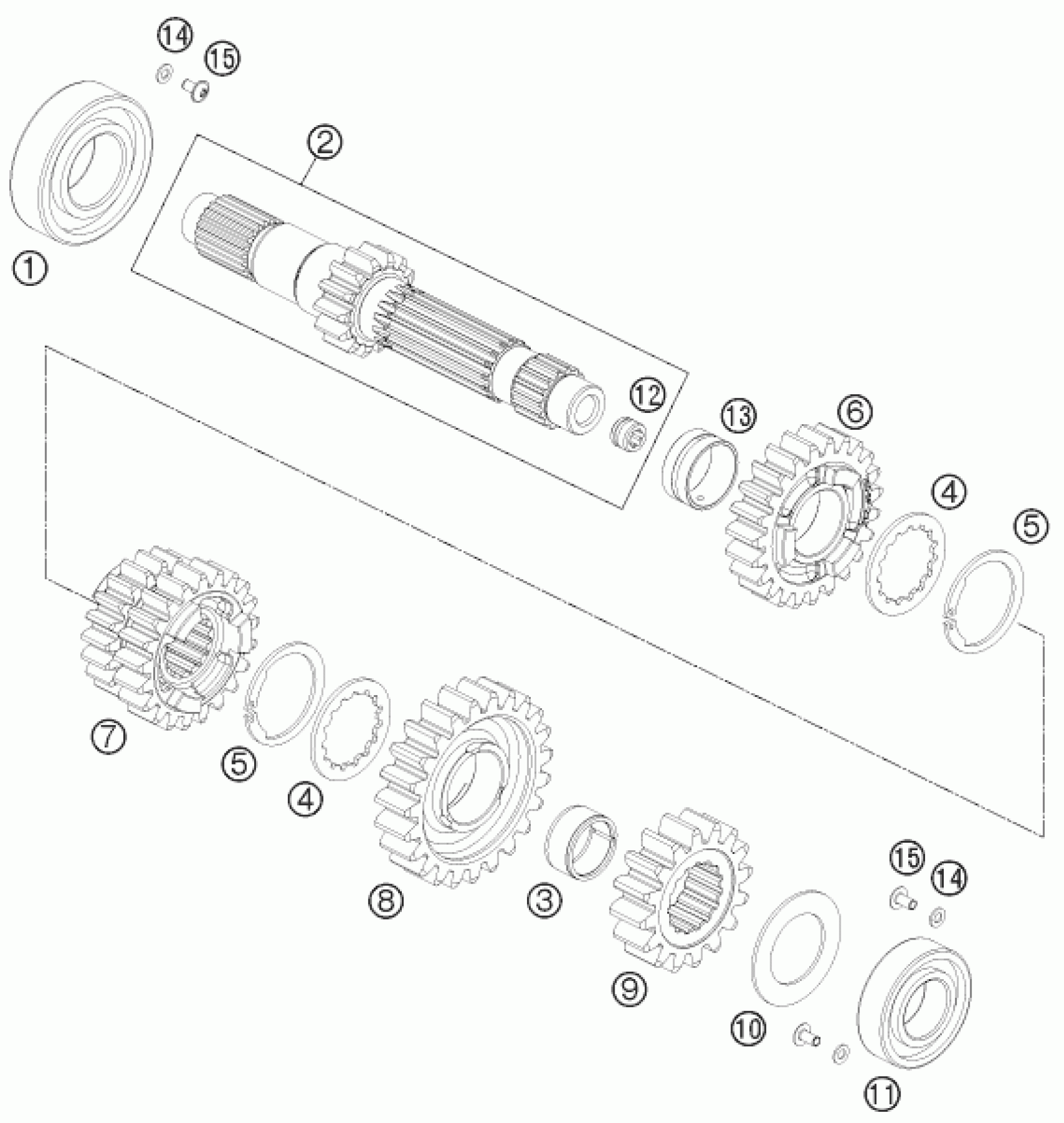

KTM 690 SMC 2011 TRANSMISSION I - MAIN SHAFT Diagram

#

Description

Price

15

FLAT HEAD SCREW ISO7380 M5X10

073800501001

Unavailable

14

washer DIN 9021 A - 5.3

0021050003

Unavailable

1

BALL BEARING 58/28 C4 N

06252858161

Unavailable

2

MAIN SHAFT

76233001000

Unavailable

3

NEEDLE BEAR. K 22X26X13 TN

0405222613

Unavailable

4

STOP DISK 22,7 X 32 X 1,5

56533016300

Unavailable

5

STOP-V-RING AV25

75033041000

Unavailable

6

IDLER GEAR 5.G.

75033105000

Unavailable

7

3/4TH GEAR MAINSHAFT 07

75033003000

Unavailable

8

IDLER 6. GEAR 07

75033006000

Unavailable

9

SOLID GEAR 2.G. 07

75033002000

Unavailable

10

Shim 20x31.9x1

59033080000

Unavailable

11

BALL BEARING 6004 DDUN C4

0625060044

Unavailable

12

GUIDE BUSHING

77333001160

Unavailable

13

BEARING BUSH

76233022100

Unavailable
