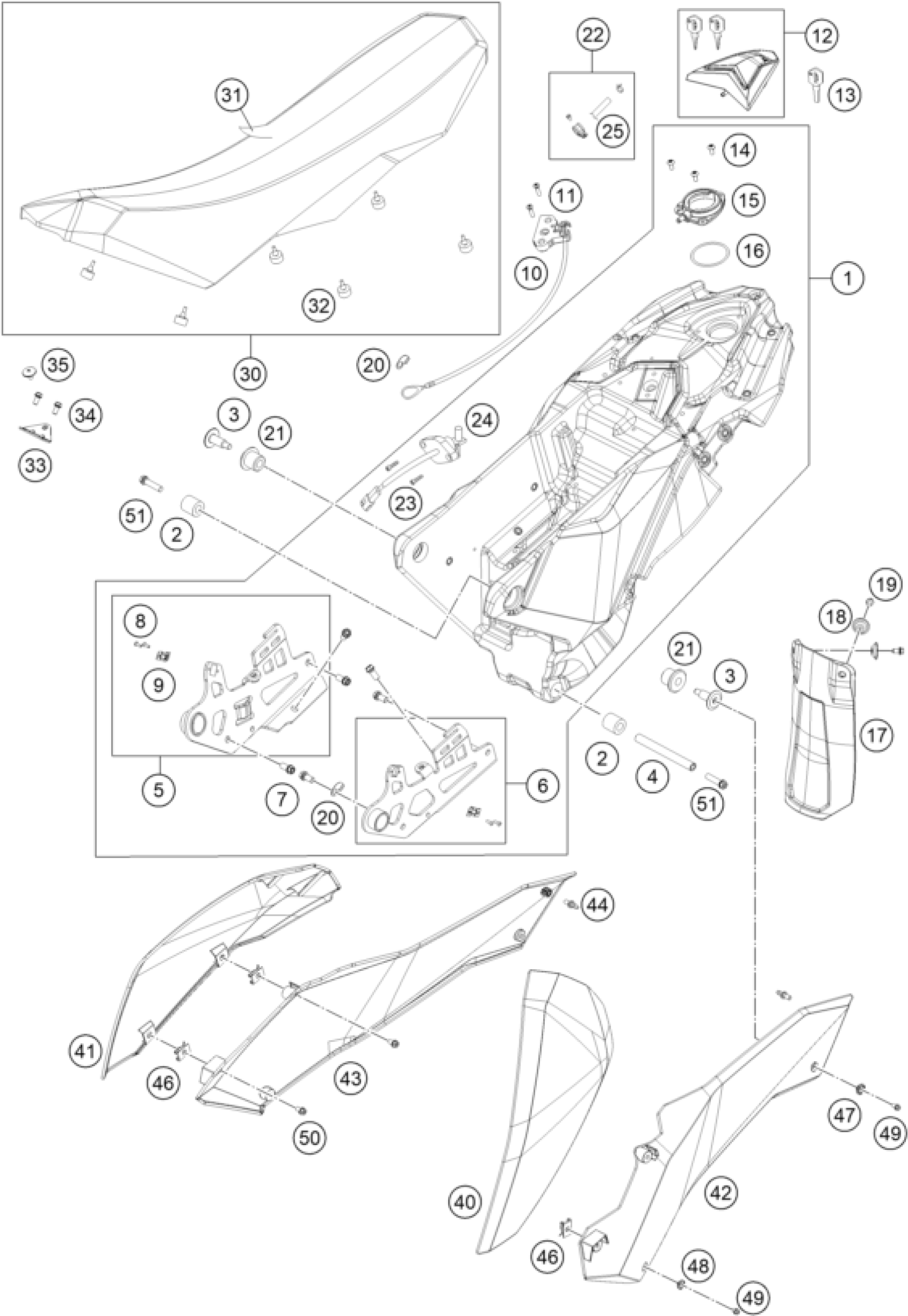

KTM 690 SMC 2011 TANK, SEAT Diagram

#

Description
Price

11

BHCS ISO 7380 M6X18

0738060181

Unavailable

3

BEARING BUSHING UP

76507060000

Unavailable

4

BEARING BUSHING DOWN

76507061000

Unavailable

5

TANK-RETAINING PLATE R/S 08

76507028000

Unavailable

6

TANK-RETAINING PLATE L/S 08

76507027000

Unavailable

10

SEAT LOCK

76507050000

Unavailable

12

TANK CAP

76507008100

Unavailable

13

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

14

SCREW TORX M5X10 05

58605083010

Unavailable

15

Closure flange

76507108050

Unavailable

16

O-ring 50.00X3.00 VITON

0770050030

Unavailable

17

SPLASHBACK 08

76506010000

Unavailable

18

BUCKET

72210079000

Unavailable

19

HH collar screw M6x10 TX30

0025060106

Unavailable

7

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

49

HH collar screw M6x16 TX30

0025060166

Unavailable

1

FUEL TANK BLACK MATT

7650701314433A

Unavailable

2

RUBBER BEAR. BOX 12X24 L=24,5

76507065000

Unavailable

8

BLIND RIVET 3,3X9,7 GROOVED 04

54806108052

Unavailable

20

CLAMP F. CABLE SEAT LOCK

76507053000

Unavailable

21

RUBB.BEAR.BOX 12x24x35 L=24,5

76507066000

Unavailable

22

TANK BREAT. - MODIFICATION KIT

76507031044

Unavailable

23

AH collar screw DIN 912 M5x16

0912050163

Unavailable

24

GAS-LEVEL SENSOR ADV. 2006

58207080100

Unavailable

30

SEAT 08

76507040000

Unavailable

31

SEAT COVER 08

76507040050

Unavailable

32

SEAT RUBBER 10 MM

75007046010

Unavailable

33

BRACKET F. SEAT

76507048000

Unavailable

34

COLLAR SCREW M6X12 TX

0023060123

Unavailable

35

SCREW FOR SEAT M6X11,5/8

58407011100

Unavailable

40

SPOILER LEFT BLACK

7650805000030

Unavailable

41

SPOILER RIGHT BLACK

7650805100030

Unavailable

42

SIDE COVER L/S WHITE 09

7650804100028

Unavailable

43

SIDE COVER R/S WHITE 09

7650804200028

Unavailable

44

QUICK RELEASE-NIPPLE 03

54806008051

Unavailable

46

clip nut M6

54603048100

Unavailable

47

collar bushing 6.5x16x5 mm

76508043150

Unavailable

48

COLLAR BUSHING

76508043050

Unavailable

50

HH collar screw M6x12 TX30

0025060126

Unavailable

51

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

25

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

9

QUICK RELEASE-SPRING HANGER

54806008050

Unavailable
