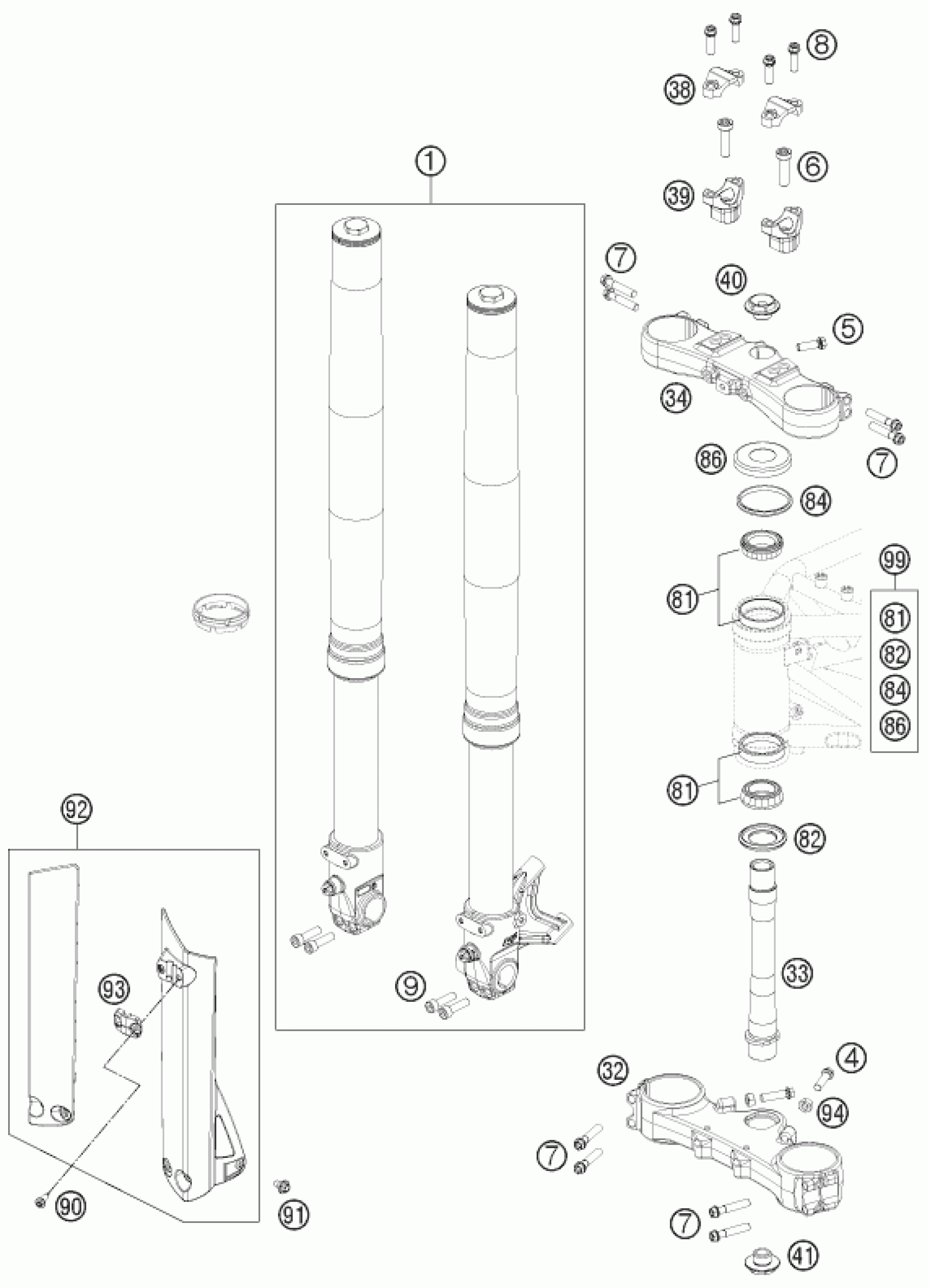

KTM 690 SMC 2011 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

FORK KTM 690 SMC 2011

14187K1201

Unavailable

4

HH SCREW DIN0933-M 8X25

0933080253

$2.05

5

HH collar screw M8x30

0025080306

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

7

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

8

HH collar screw M8x25

0025080256

$2.05

9

AH SCREW DIN0912-M 8X30

0912080303

$2.05

32

BOT.TRIPLE CLAMP 32-34 OFFSET

7650113103301

$155.51

33

FORK TUBE L=237MM 08

76501033000

$120.42

34

TRIPLE CLAMP TOP 32-34 ADJUST.

7650113403301

$260.30

38

HANDLEBAR CLAMP 28MM 05

59401038000

$25.05

39

Handlebar mount D28mm-H42mm

59401039042

$36.27

40

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

41

STE.HEAD SCR. M20X1,5 WS=27 SL

54801036100

$14.67

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

54601084100

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

86

STEERING HEAD COVER

54201086000

$8.50

90

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

FORK PROTECT. L/S+R/S BLACK 08

7650109400030

$47.02

93

CLAMP FOR SPEEDO CABLE

7650108500030

Unavailable

94

Hexagon nut DIN934 M8

0934080003

$2.05

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
