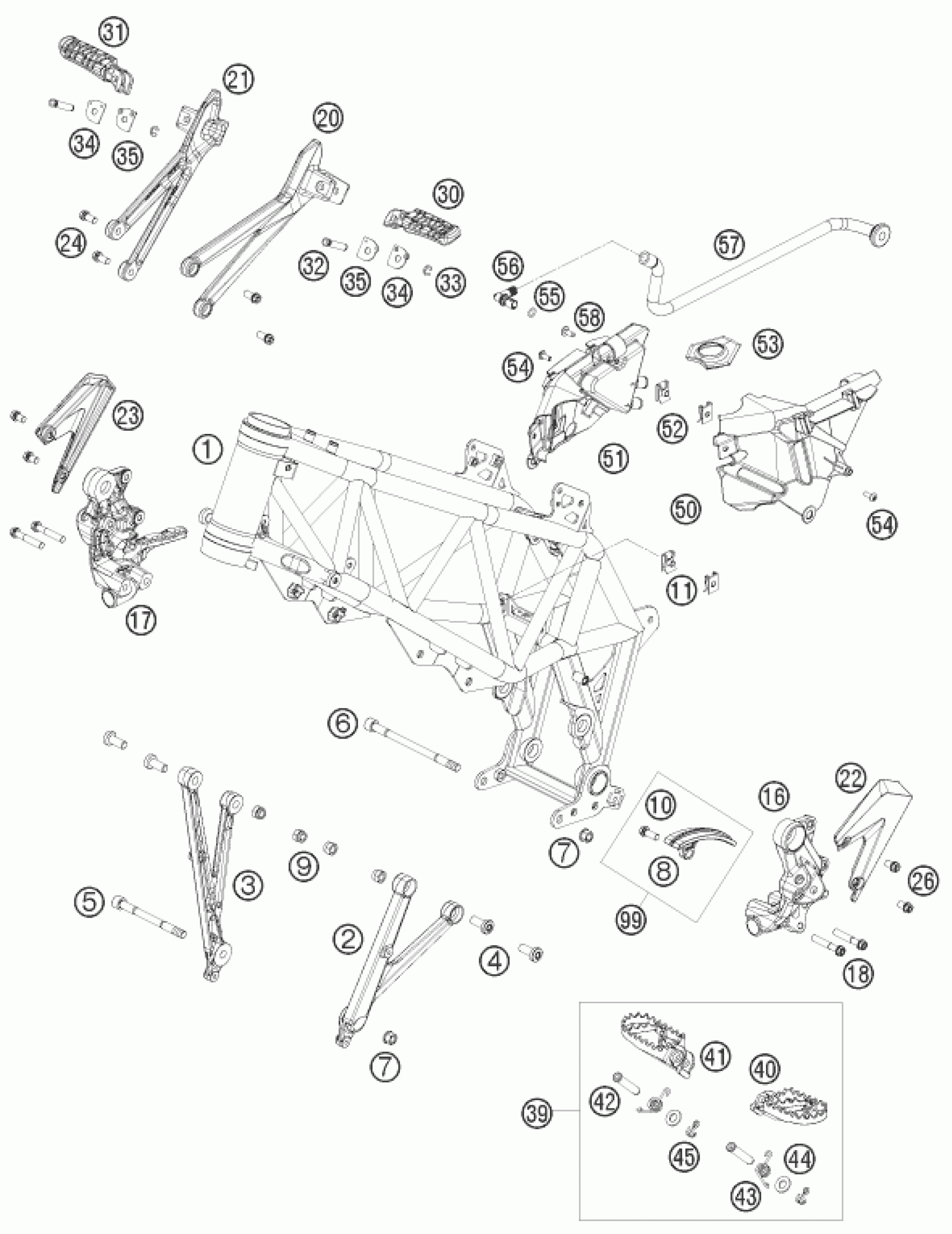

KTM 690 SMC 2011 FRAME Diagram

#

Description
Price

1

FRAME ''765KA'' BLACK MATT

7650300110033

Unavailable

2

ENGINE SUPPORT L/S

7650300500001

Unavailable

3

ENGINE SUPPORT R/S

7650300600001

Unavailable

4

AH collar screw M10x24 ISA45

0035100249

Unavailable

5

SPECIAL SCREW M10X115 ISK8 07

75003015000

Unavailable

6

SPECIAL SCREW M10X152 ISK8 07

75003014000

Unavailable

7

COLLAR NUT M10 WS=13

54630044000

Unavailable

8

CHAIN SLID. GUARD 08

76504067000

Unavailable

9

SELF LOCKING NUT M10 CU WS=14

54310086100

Unavailable

10

HH collar screw M8x20

0025080206

Unavailable

11

RANGE CHANGE METAL NUT M4

54603048500

Unavailable

16

FOOT REST BRACKET L/S

7650303804401

Unavailable

17

FOOTREST CARRIER R/S

7650303914401

Unavailable

18

HH collar screw M8x45 TX40

0025080456

Unavailable

20

FOOT REST BRACKET REAR L/S

7650304800001

Unavailable

21

FOOT REST BRACKET REAR R/S

7650304900001

Unavailable

22

HEEL PROTECTOR LS 09

76503038150

Unavailable

23

HEEL PROTECTOR RS 08

76503039050

Unavailable

24

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

26

HH collar screw M8x12 TX40

0025080126

Unavailable

30

FOOTREST CPL. L/S REAR 03

60003050000

Unavailable

31

Footrest cmpl. r/s rear 03

60003051000

Unavailable

32

BOLT FOR FOOTREST REAR 03

60003044000

Unavailable

33

retaining washer DIN 6799 - 6

0799060003

Unavailable

34

ENGAGE PANEL FOOTREST R/S 03

60003052000

Unavailable

35

ENGAGE PANEL FOOTREST L/S 03

60003152000

Unavailable

39

FOOTREST L/S+R/S CPL. 08-12

76503040033

Unavailable

40

FOOT PEG L/S SILVER 02

59003040250

Unavailable

41

FOOT PEG R/S SILVER 02

59003041250

Unavailable

42

BOLT FOR FOOT PED 08

76503044000

Unavailable

43

FOOTREST SPRING L/S & R/S

54603041000

Unavailable

44

washer DIN 125 A 10.5

0125100003

Unavailable

45

PIN DIN0094-3,2X25 STEEL

0094032253

Unavailable

50

COVER FRAME L/S

76503083100

Unavailable

51

COVER FRAME R/S

76503084100

Unavailable

52

clip nut M5

69008021080

Unavailable

53

COVER FOR IGNITION LOCK

76503085000

Unavailable

54

Oval head screw M5x14 TX25

58605083014

Unavailable

55

O-RING 8X2 SILICONE

0770080020

Unavailable

56

ANGLE CONNECTOR LC8 03

60038082000

Unavailable

57

VENTILATION OIL SEPARATOR FOAM

76530087000

Unavailable

58

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable
