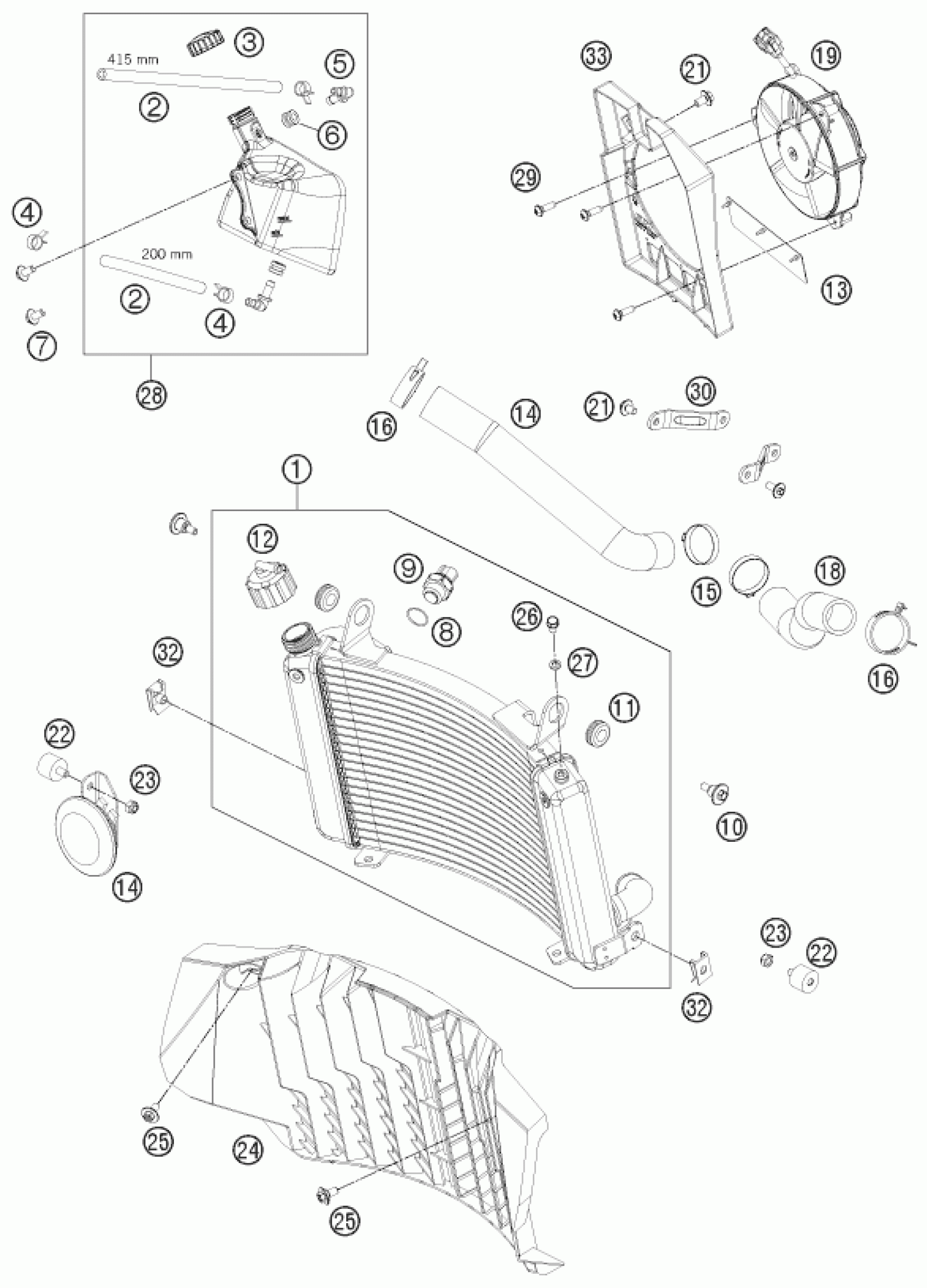

KTM 690 SMC 2011 COOLING SYSTEM Diagram

#

Description
Price

1

RADIATOR 08

76535010000

Unavailable

2

HOSE 6X10 EPDM 03

60035067001

Unavailable

3

PLUG F. EXPANSION TANK

60035066000

Unavailable

4

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

5

Angle piece, reservoir

60035068000

Unavailable

6

RUBBER GROMMET 6X9X13MM 04

60035069000

Unavailable

7

COLLAR SCREW M6X12 TX

0023060123

Unavailable

8

O-ring 17X1.5

0770017015

Unavailable

9

THERMOSWITCH LC8 102DG '03

60035045000

Unavailable

10

Special screw M6x24 WS=8

60038083000

Unavailable

11

RUBBER SLEEVE D=12MM

41001052000

Unavailable

12

RADIATOR CAP 1,4 BAR

62535009000

Unavailable

13

FAN CLACK RUBBER 08

62635044050

Unavailable

14

RADIATOR HOSE 08

76535025000

Unavailable

15

Stufenlose Einohrklemme 33,1mm

00050331706

Unavailable

16

CLAMP STD DN32

00049320121

Unavailable

18

RADIATOR HOSE 08

76535024000

Unavailable

19

VENTILATOR

62635041000

Unavailable

21

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

22

silentbloc 20x15-M6x10-(1)

43205062100

Unavailable

23

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

24

RADIATOR GUARD

76535040100

Unavailable

25

special screw M6x12x3

83008000012

Unavailable

26

HH collar screw M6x10 TX30

0025060106

Unavailable

27

ALU-GASKET 6X10X1.5

60035048000

Unavailable

28

EXPANSION TANK CPL. 07

76535065000

Unavailable

29

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

32

clip nut M6

54603048100

Unavailable

33

FAN COVER

75335044000

Unavailable

30

RETAINING PLATE RADIATOR 08

76535001000

Unavailable
