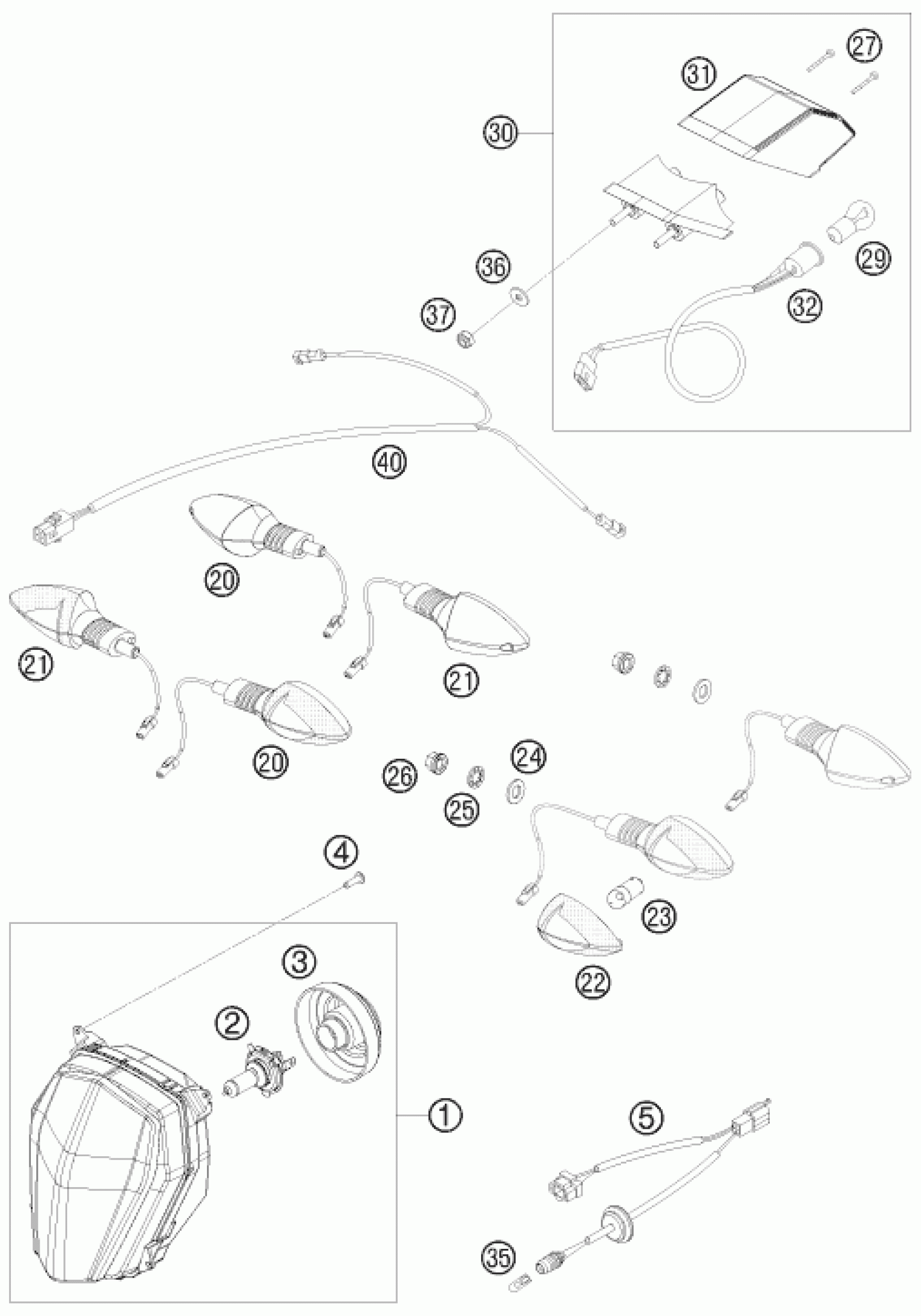

KTM 690 SMC 2010 LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT

76514001000

Unavailable

2

BULB H4 12V 60/55W (P43T)

57111038000

Unavailable

3

RUBBER CAP FOR HEAD LIGHT

76514001050

Unavailable

4

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

5

WIRING HARNESS HEAD LIGHT

76511079000

Unavailable

20

FLASHER CPL.FRONT L/S REAR R/S

60114025000

Unavailable

21

FLASHER CPL.FRONT R/S REAR L/S

60114026000

Unavailable

22

FLASHER LENS L/S R/S TRANSP.06

60114028000

Unavailable

23

BULB 12V ORANGE (RY10W)

60114027000

Unavailable

24

Washer DIN0433-M10

0433100003

Unavailable

25

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

26

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

27

SHEET MET. SCR. DIN7981 3,5X32

0981350323

Unavailable

29

BULB 12V 21/5W (BAY15S)REINFO.

58414042000

Unavailable

30

REAR LIGHT CPL. EXC 07

50314040200

Unavailable

32

WIRING HARNESS REAR 125-380'98

50311076000

Unavailable

31

REAR LIGHT LENS 125-380 EGS'98

50314041100

Unavailable

35

BULB 12V 5W (W2,1X9,5D) PHIL.

49011435100

Unavailable

36

Washer DIN9021-A 6.4

0021060003

Unavailable

37

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

40

WIRING HARNESS FLASHER REAR 08

76511076000

Unavailable
