Description

Price

1

MAIN WIRING HARNESS 08

76511075000

$645.17

2

SPARE CONNECTOR BH 6-PINS

000700000BH

$22.15

3

FUSE 10A 07

75011088010

Unavailable

4

FUSE 15A 07

75011088015

Unavailable

5

RUBBER CASING FOR FUSE BOX

75011087050

$11.59

6

WIRING HARNESS HEAD LIGHT

76511079000

$21.78

7

EJOT PT screw K50x12

0081050121

$2.05

8

Self lock. nut DIN985-M6-A2

0985060003

$2.05

9

DC HORN CPL.

76511060000

$40.57

20

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

20

Cable tie 200/4.6mm black

44011076200

Unavailable

20

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

21

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

25

FLASHER UNIT 97

44611207200

$49.83

26

WIRING HOLDER 05

61011093000

$3.48

27

DIODE S3H-15 97

58411096100

$9.81

28

VOLTAGE REGULATOR

62511034100

$163.80

29

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

30

clip nut M6

54603048100

$4.11

31

MAP-SELECT-SWITCH

76511010000

$85.36

32

RUBBER HOLDER F. MAP-SEL-SWIT.

76511010050

$10.46

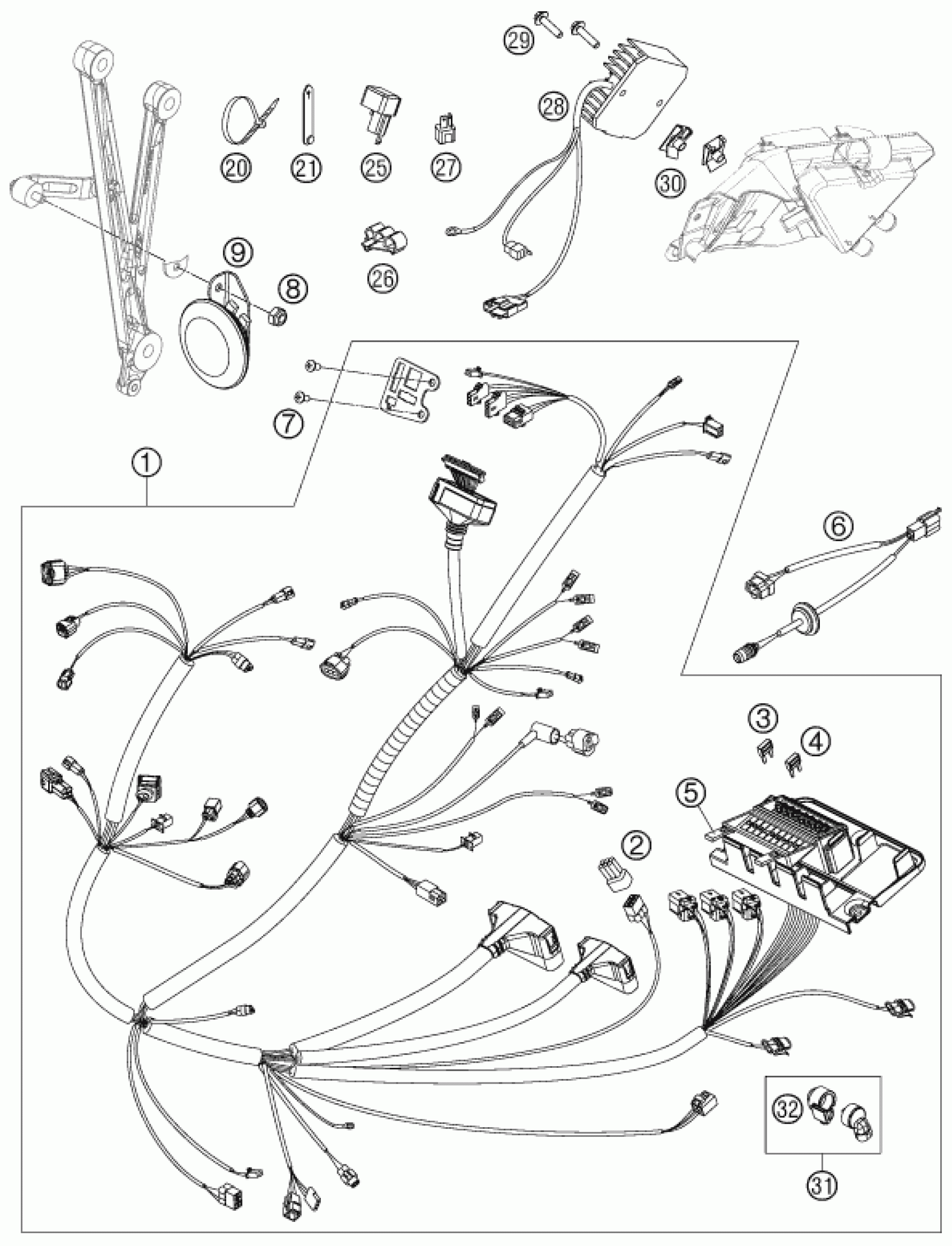

KTM 690 SMC 2010 WIRING HARNESS Diagram

MAIN WIRING HARNESS 08

SPARE CONNECTOR BH 6-PINS

FUSE 10A 07

FUSE 15A 07

RUBBER CASING FOR FUSE BOX

WIRING HARNESS HEAD LIGHT

EJOT PT screw K50x12

Self lock. nut DIN985-M6-A2

DC HORN CPL.

CABLE TIE 140/2,5MM BLACK

Cable tie 200/4.6mm black

CABLE TIE 300/4,8MM BLACK

RUBBER CABLE TIE 45MM 03

FLASHER UNIT 97

WIRING HOLDER 05

DIODE S3H-15 97

VOLTAGE REGULATOR

HH COLLAR SCREW M6X25 TX30

clip nut M6

MAP-SELECT-SWITCH

RUBBER HOLDER F. MAP-SEL-SWIT.
