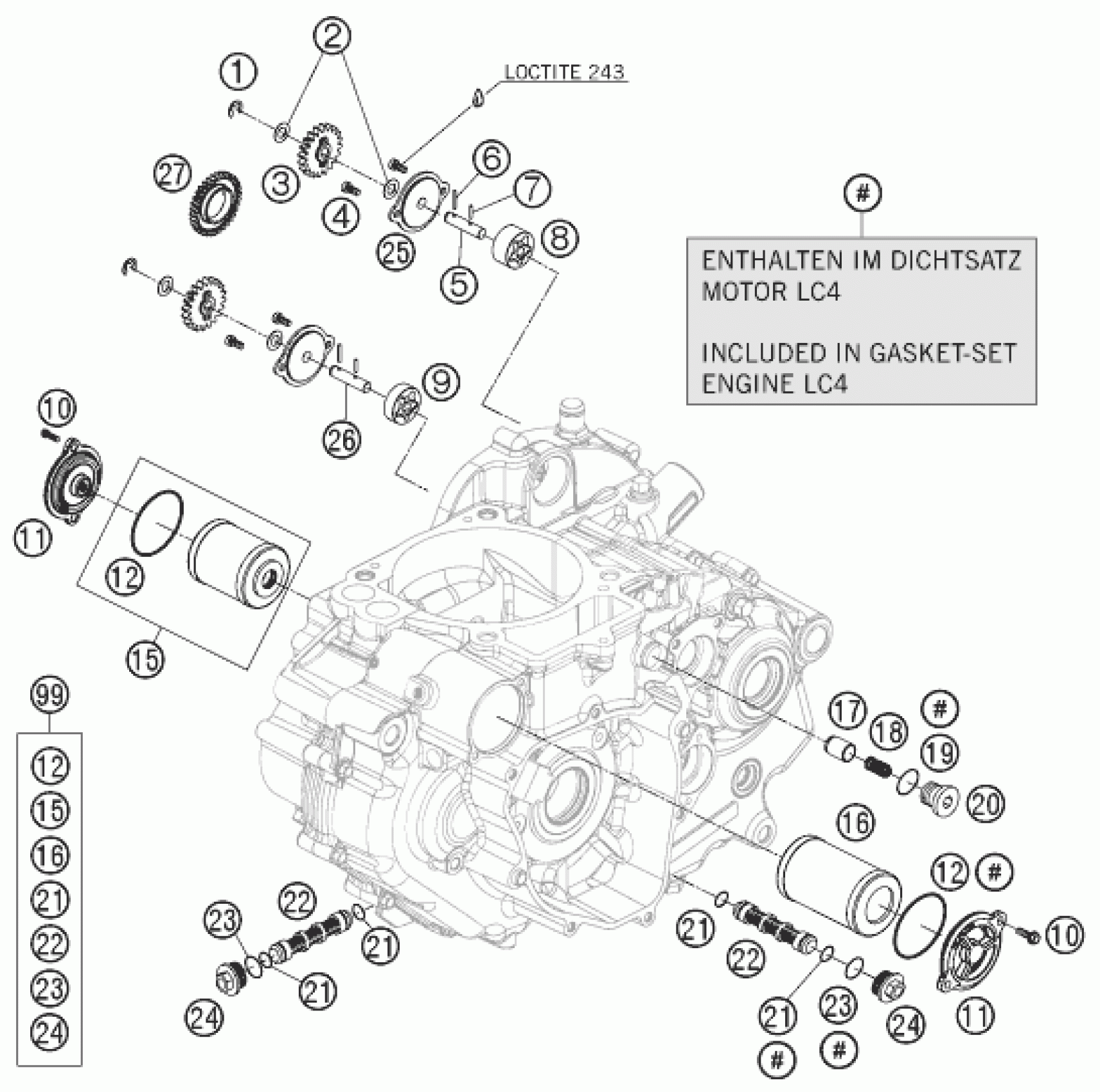

KTM 690 SMC 2010 LUBRICATING SYSTEM Diagram

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

OIL PUMP GEAR 20-T

75038001020

$5.23

AH SCREW DIN7984 M5X10 A2

07984050100S

$1.49

OIL PUMP SHAFT 07

75038002000

$8.78

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

OILPUMP ROTOR 15MM G-164

77038011000

$43.75

OILPUMP ROTOR CPL. 10MM G-73R

59038011010

$32.53

HH collar screw M5x16 TX30

0025050166

$2.05

oil filter cover

75038041200

$8.13

O-RING 39,34X2,62

07700390261

$2.05

OIL FILTER SHORT WITH GASKET

59038046144

$8.22

OIL FILTER LONG

58038005100

$10.46

VALVE PISTON D=10MM

58038028000

$37.77

OIL PRES.SPRING 5 BAR RED 2001

58538023000

$7.94

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

threaded plug DIN 908 M12x1.5

0908120153

$4.11

O-RING 12,5X1,5 VITON V75

07701250151

$4.11

OIL SCREEN 15X83MM

59038016000

$7.00

o-ring 18.00x2.00 NBR70

0770180020

$2.05

PLUG M20X1,5 WS=13

59038017000

$7.85

OIL PUMP COVER 07

75038003000

$6.91

OIL PUMP SHAFT 07

75038004000

$8.78

OIL PUMP DRIVE WHEEL 07

75032050001

$4.11

OILFILTER SERVICE KIT 09-11

00050000069

Unavailable
