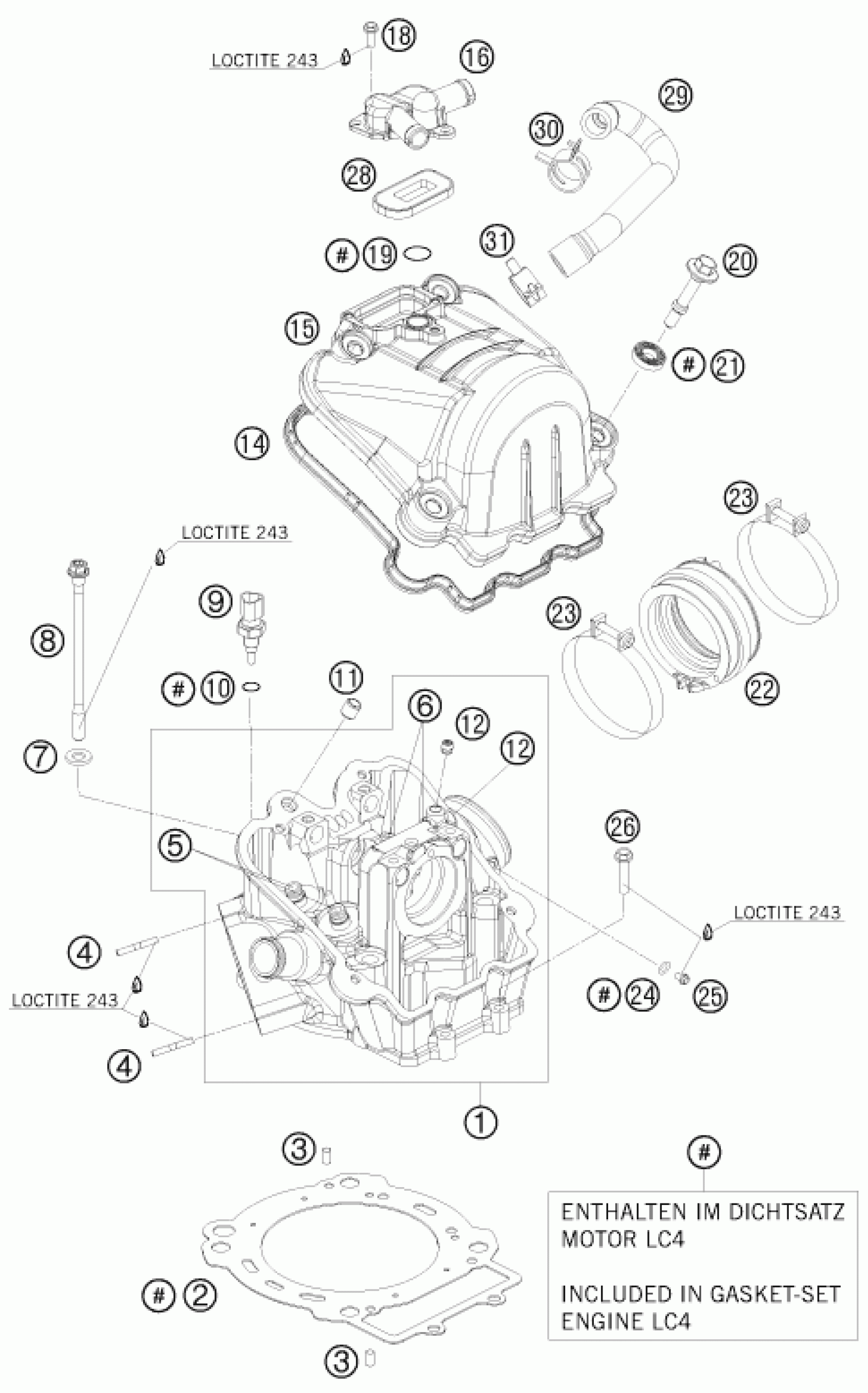

KTM 690 SMC 2010 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD CPL.

7503602014452

$698.25

2

CYLINDER HEAD GASKET 07

75030036000

$48.70

3

GROOVED PIN DIN1474 5X10

0474050100

$2.05

4

STUD DIN0835-M 8X25 10.9

0835080256

$3.08

5

VALVE GIUDE EXHAUST

60036026101

$29.07

6

VALVE GIUDE INTAKE

60036025101

$11.40

7

SHIM 10,2X19X1,5MM 05

60036078050

$3.08

8

CYLINDERHEAD SCREW M10X168WS14

75036079000

$9.34

9

TEMPERATURE SENSOR WATER 07

75035047000

$24.40

10

o-ring 10.00x2.00 silicone

0770100020

$2.05

11

DOWEL 9,8 X 7 X 10

49030090000

$2.05

12

SCREW PLUG

59030296000

$6.26

14

VALVE COVER GASKET 07

75036053000

$19.91

15

VALVE COVER 07

75036052000

$61.14

16

BREATHER COVER 07

75036052050

$10.09

18

AH SCREW DIN7984 M5X10 A2

07984050100

$1.49

19

O-RING 15,00X1,50 VITON

0770150151

$3.08

20

valve mechanism cover screw

75036055000

$4.11

21

decoupling element

75036052010

$4.11

22

INTAKE BOOT 07

75036044000

$41.51

23

HOSE CLAMP GEMI 70MM

75036047000

$9.44

24

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

25

HH collar screw M6x8 TX30

0025060086

$2.05

26

HH collar screw M6x25 TX30

0025060256

$3.08

28

SAS Reed Valve

60005026000

$21.50

29

PRE.HOSE OIL SEPARATOR FOAM 08

76530088000

$22.34

30

CLAMP STD DN20

00049200121

$1.49

31

CLAMP 21X12 STD-DES

00049210121

$3.08
