Description

Price

1

CLUTCH COVER CPL. 07

75030001044

$262.07

2

oil plug cpl. M24x3

58030020100

$5.23

3

DOWEL 9,8 X 7 X 10

49030090000

$2.05

4

OIL LEVEL GLASS G 1777 Y

59030019000

$21.31

5

CIRCLIP OIL LEVEL GLASS 03

61030019050

$1.49

6

SHAFT SEAL RING 17X28X7B VITON

0760172871

$5.70

7

CLUTCH CASE GASKET 07

75030025000

$19.53

8

SCREW PLUG

59030296000

$6.26

9

HH collar screw M6x25 TX30

0025060256

$3.08

10

HH collar screw M6x30 TX30

0025060306

$3.08

12

O-RING 19,00X3,00 NBR

0770191015

$2.05

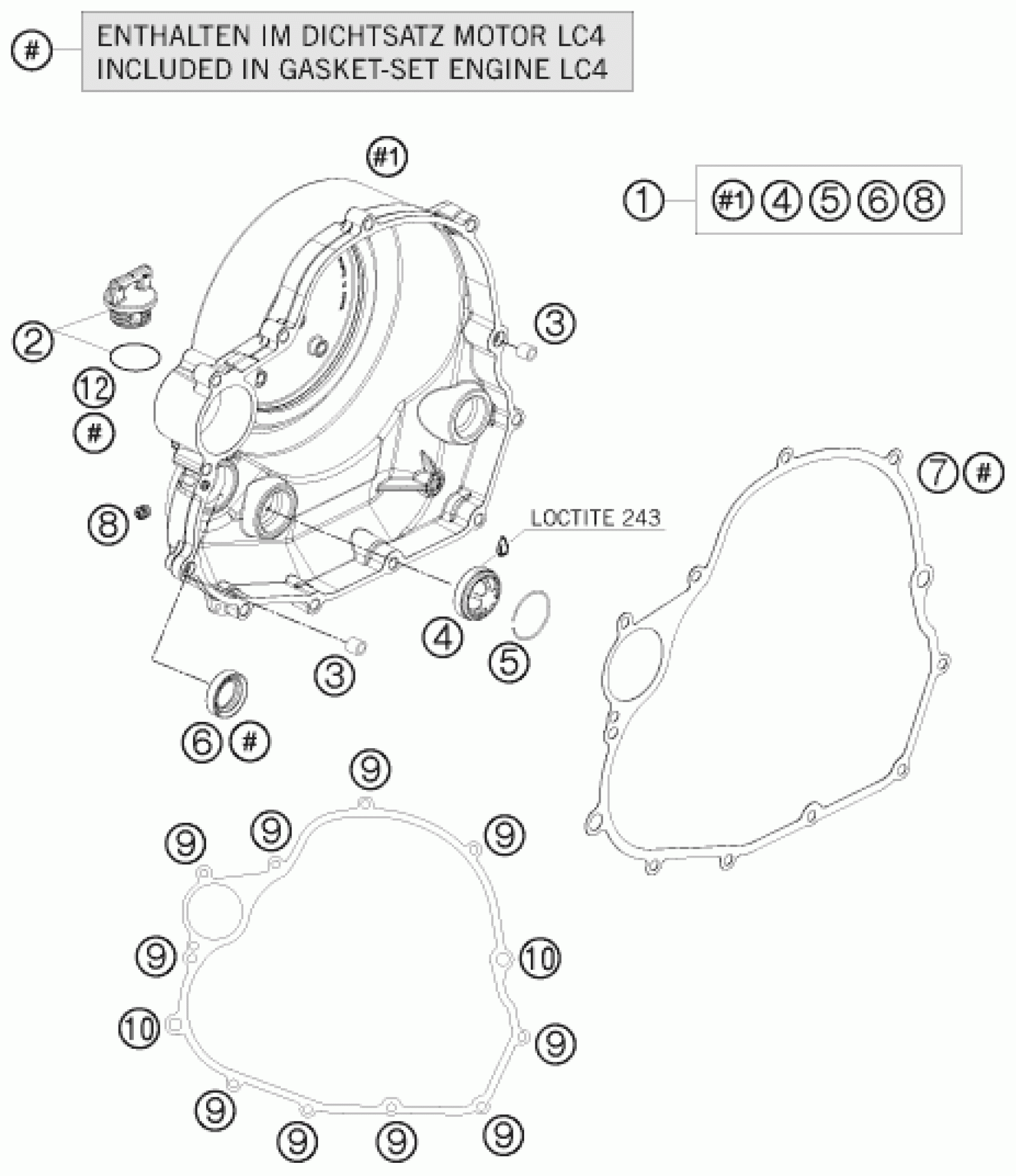

KTM 690 SMC 2010 CLUTCH COVER Diagram

CLUTCH COVER CPL. 07

oil plug cpl. M24x3

DOWEL 9,8 X 7 X 10

OIL LEVEL GLASS G 1777 Y

CIRCLIP OIL LEVEL GLASS 03

SHAFT SEAL RING 17X28X7B VITON

CLUTCH CASE GASKET 07

SCREW PLUG

HH collar screw M6x25 TX30

HH collar screw M6x30 TX30

O-RING 19,00X3,00 NBR
