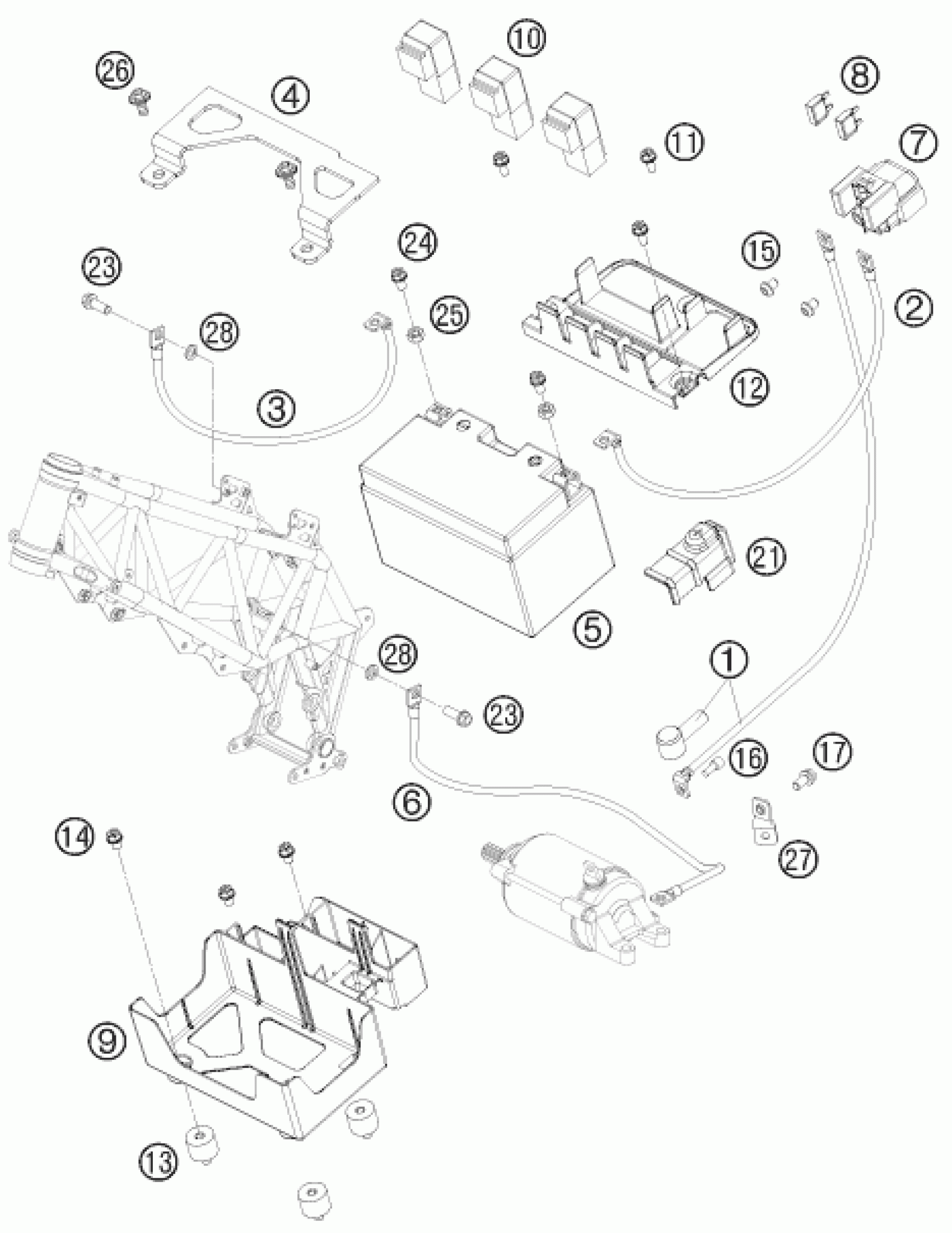

KTM 690 SMC 2010 BATTERY Diagram

#

Description
Price

3

GROUND CABLE L=420MM 08

76511097000

$14.11

4

RETAINING PLATE BATTERY 08

76511056000

$51.42

5

BATTERY 12V 8,6AH 03

58411053100

$309.38

6

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

7

Starter reley 12V 99

58211058000

$72.64

8

Plug-in fuse, big 30A

58011109130

$2.05

9

BATTERY BRACKET 08

76511054000

$9.62

10

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

11

HH collar screw M5x12 TX30

0025050126

$3.08

12

HOLDER F.ELECTRIC 08

76511055000

$5.23

13

silentbloc 20x15-M6x10-(1)

43205062100

$13.92

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

15

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

16

SHCS DIN 912 M5x8

0912050083

$1.49

21

POSITIVE POLE COVER 07

75011059060

$3.48

23

HH collar screw M6x12 TX30

0025060126

$3.08

24

HH collar screw M6x10 TX30

0025060106

$3.08

25

Hex. nut DIN 934 M6

0934060003

$1.49

26

HH collar screw M6x13 TX30

0024060136

$3.08

27

RETAINING PLATE STARTER CABLE

76511059061

$9.81

28

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

1

STARTER-CABLE L=570MM 08

76511059000

$16.63

2

BATTERY-CABLE L=170MM

75011059150

$13.74

17

HH collar screw M5x10 TX30

0025050106

$1.49
