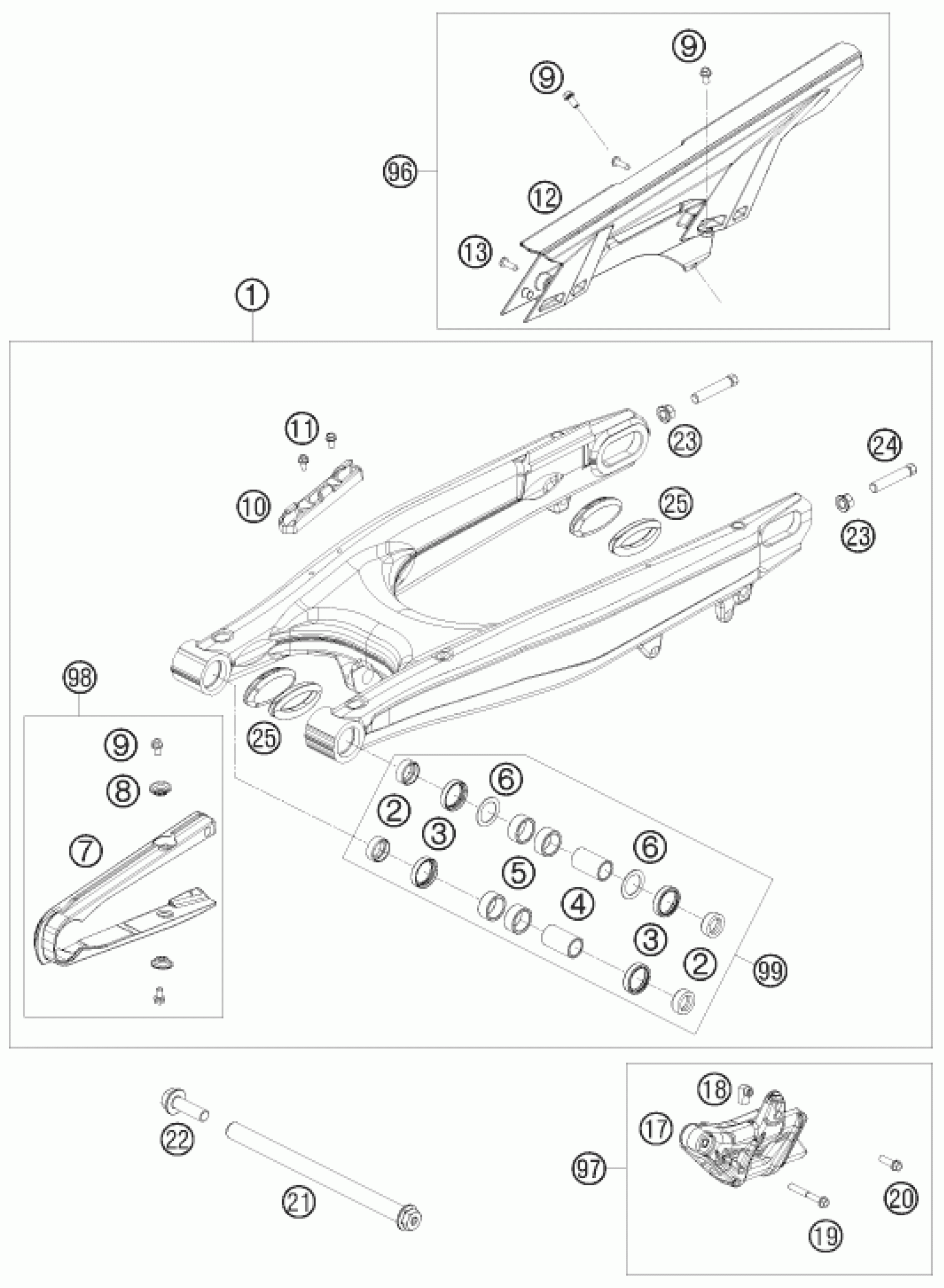

KTM 690 SMC 2008 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. 08

76504030044

Unavailable

2

BUCKET FOR SHAFT SEAL RING

76504034000

Unavailable

3

radial shaft seal 25x32x7

0760253270

Unavailable

4

Bearing sleeve 17x22x38.7 03

59404032000

Unavailable

5

NEEDLE BEARING HK2212V

59004031100

Unavailable

6

STOP DISK 22,2X31,7X1

54603036000

Unavailable

7

Chain sliding guard 07

76504066000

Unavailable

8

chain slider bushing

77304066050

Unavailable

9

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

10

BRAKE LINE GUIDE 08

76504042000

Unavailable

11

SPECIAL SCREW M 5,0X10

0009050103

Unavailable

12

CHAIN GUARD 08

76504060000

Unavailable

13

SCREW FOR PLASTIC D=5X18

0081500181

Unavailable

20

HH collar screw M6x20 TX30

0025060206

Unavailable

21

SWINGARM BOLT L=246 M12X1,5

75304037044

Unavailable

22

Special screw M12x40 WS19

76504038000

Unavailable

23

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

24

screw M10x1.25x50 WS10

50304040100

Unavailable

17

CHAIN GUIDE REAR CPL. 07

77304070000

Unavailable

18

INSERTION NUT F. CHAIN GUIDE

77304070030

Unavailable

19

HH COLLAR SCREW M6X45 TX30

0025060456

Unavailable

25

CLOSING COVER SWINGARM SM 03

58404041000

Unavailable

97

Chain guide kit

77304070310

Unavailable

96

CHAIN PROTECTION KIT 690 08-14

76504060010

Unavailable

98

CHAIN GUARD KIT 08-14

76504066010

Unavailable

99

SWINGARM REPAIR KIT 08-13

76504230010

Unavailable
