Description

Price

5

Membrane D52

46180518

$18.91

30

COUNTERNUT

46180445

$26.14

31

ADJUSTING NUT

46180444

$64.15

32

SPRING 220MM 80N/MM (61)

91110004S

Unavailable

32

SPRING 220MM 85N/MM (61)

91110005S

Unavailable

32

SPRING 220MM 90N/MM (61)

91110014S

Unavailable

33

Spring retainer 28x73x15

46180396

$61.42

40

REPAIR KIT GASKET 05

R15004

$58.90

41

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

$149.59

6

HS cylinder-head screw R1/8 l8

50180095

$2.42

7

CYL. SCREW M10X1,25 L=53

76504016000

$4.11

10

Compression cpl.

46180533S1

$406.34

11

Round-wire snap ring 49x1,5

46810010

$3.08

20

SHOCK ABS. BOTTOM CPL. SMC

46180654S2

Unavailable

21

REPAIR KIT BEARINGS 07

R15006

$100.65

1

MONOSHOCK 690 SMC 08

15187D12

Unavailable

2

SHOCK ABS. UPPER CPL. 08

46180682S1

Unavailable

3

LOCK RING D=55

46180519

$4.96

4

MEMBRANE COVER CPL. 08

46180661S

Unavailable

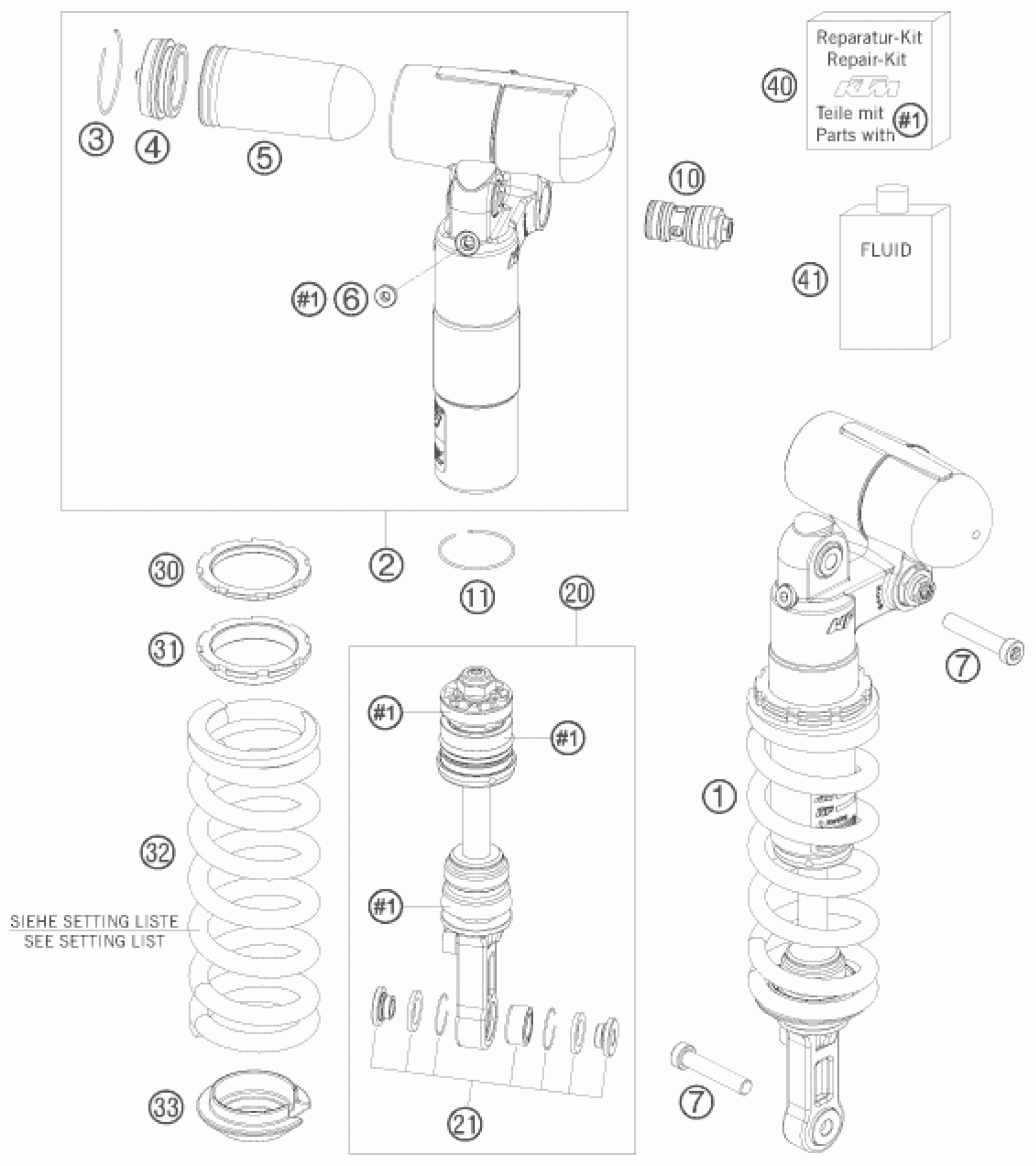

KTM 690 SMC 2008 SHOCK ABSORBER Diagram

Membrane D52

COUNTERNUT

ADJUSTING NUT

SPRING 220MM 80N/MM (61)

SPRING 220MM 85N/MM (61)

SPRING 220MM 90N/MM (61)

Spring retainer 28x73x15

REPAIR KIT GASKET 05

SHOCK ABSORBER FLUID 5 LT '03

HS cylinder-head screw R1/8 l8

CYL. SCREW M10X1,25 L=53

Compression cpl.

Round-wire snap ring 49x1,5

SHOCK ABS. BOTTOM CPL. SMC

REPAIR KIT BEARINGS 07

MONOSHOCK 690 SMC 08

SHOCK ABS. UPPER CPL. 08

LOCK RING D=55

MEMBRANE COVER CPL. 08
