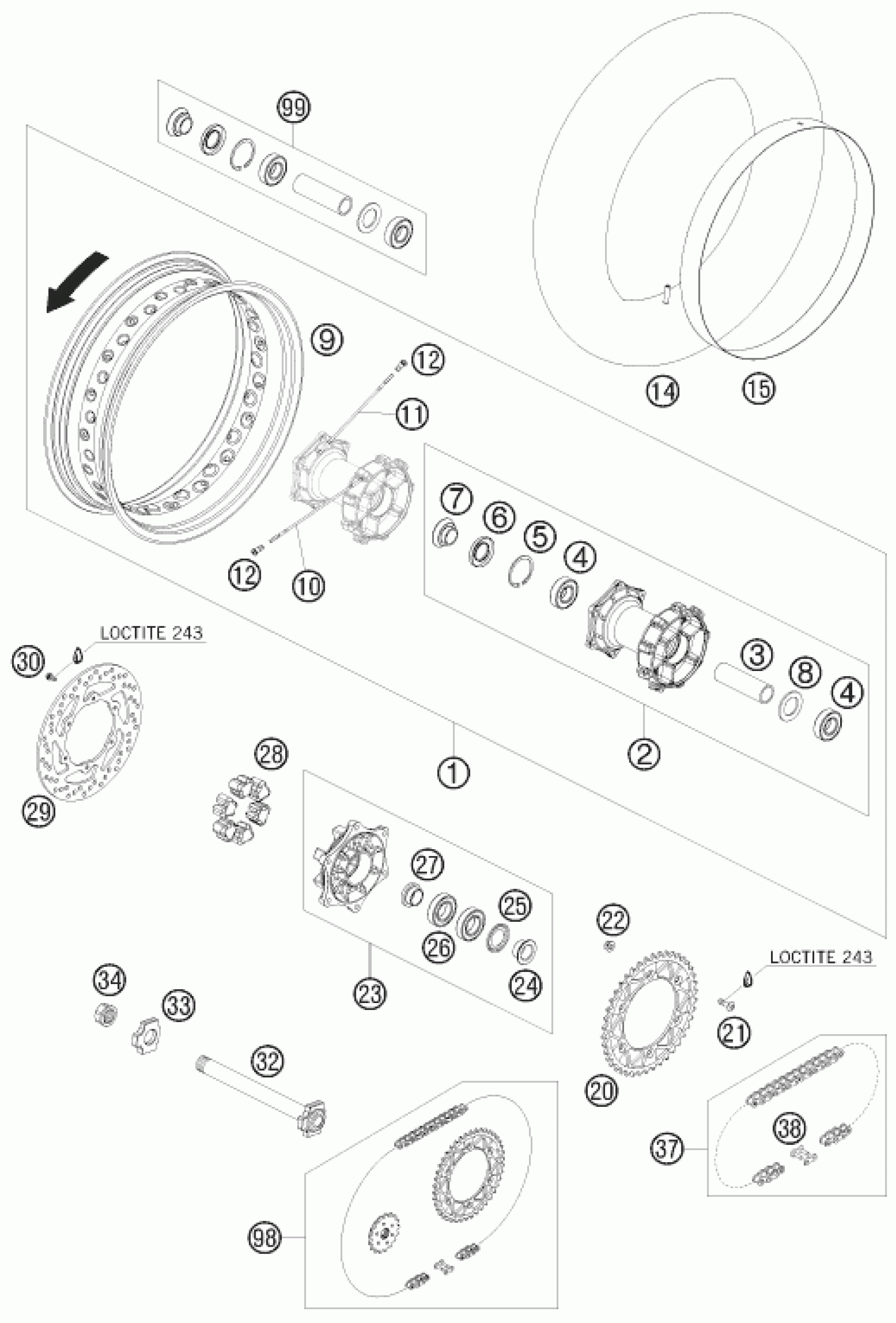

KTM 690 SMC 2008 REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL CPL. 5X17'' 0

7501020104430

Unavailable

2

REAR HUB CPL. 07

75310010044

Unavailable

3

BEARING SPACER TUBE L=106MM 07

75310011000

Unavailable

4

Grooved ball bear. 6205-2RSHC3

0625062052

Unavailable

5

CIRCLIP DIN0472-52X2

0472052200

Unavailable

6

Radial shaft seal 30X52X7

0760305271

Unavailable

7

SPACER BUSH. REAR WHEEL R/S 06

60110013000

Unavailable

8

Spacer ring 03

60010015000

Unavailable

9

RIM 5X17'' BLACK 0

7501027000030

Unavailable

10

SPOKE M5X199-16G 17'' INOX

75010073199

Unavailable

11

SPOKE M5X188-27G 17'' INOX

75010173188

Unavailable

12

SPOKE NIPPLE M5-TA 8X21MM

58309072100

Unavailable

14

TUBE 17''

58410075000

Unavailable

15

rim tape 17"

58309073000

Unavailable

20

SPROCKET STEALTH 40T 07

75010051040

Unavailable

20

SPROCKET STEALTH 42T 07

75010051042

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

22

Self locking nut M8 10.9

54310086200

Unavailable

23

SPROCKET SUPPORT CPL. 07

75010050044

Unavailable

24

SPACER BUSH. SPROCKET SUPP. 06

60110012000

Unavailable

25

NILOS RING 6006AV

60110016000

Unavailable

26

BALL BEARING 6006 DDU2CG23S6NM

0625060060

Unavailable

27

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

Unavailable

28

Rubber damping block 91

54610459000

Unavailable

29

REAR BRAKE DISK D=240MM 03

60010060000

Unavailable

30

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

32

WHEEL SPINDLE M25X1,5 L=275MM

75310085044

Unavailable

33

Chain tension adjuster, right,

60010084000

Unavailable

34

COLLAR NUT WH. SPINDLE REAR 03

60010086000

Unavailable

37

chain DID 118 roll

76910065118

Unavailable

38

Rivet link chain DID 520 VP2-T

76910066000

Unavailable

98

DRIVETRAIN KIT 690 SMC 15T/42T

00050002016

Unavailable

99

REAR WHEEL REP. KIT

75010015000

Unavailable
