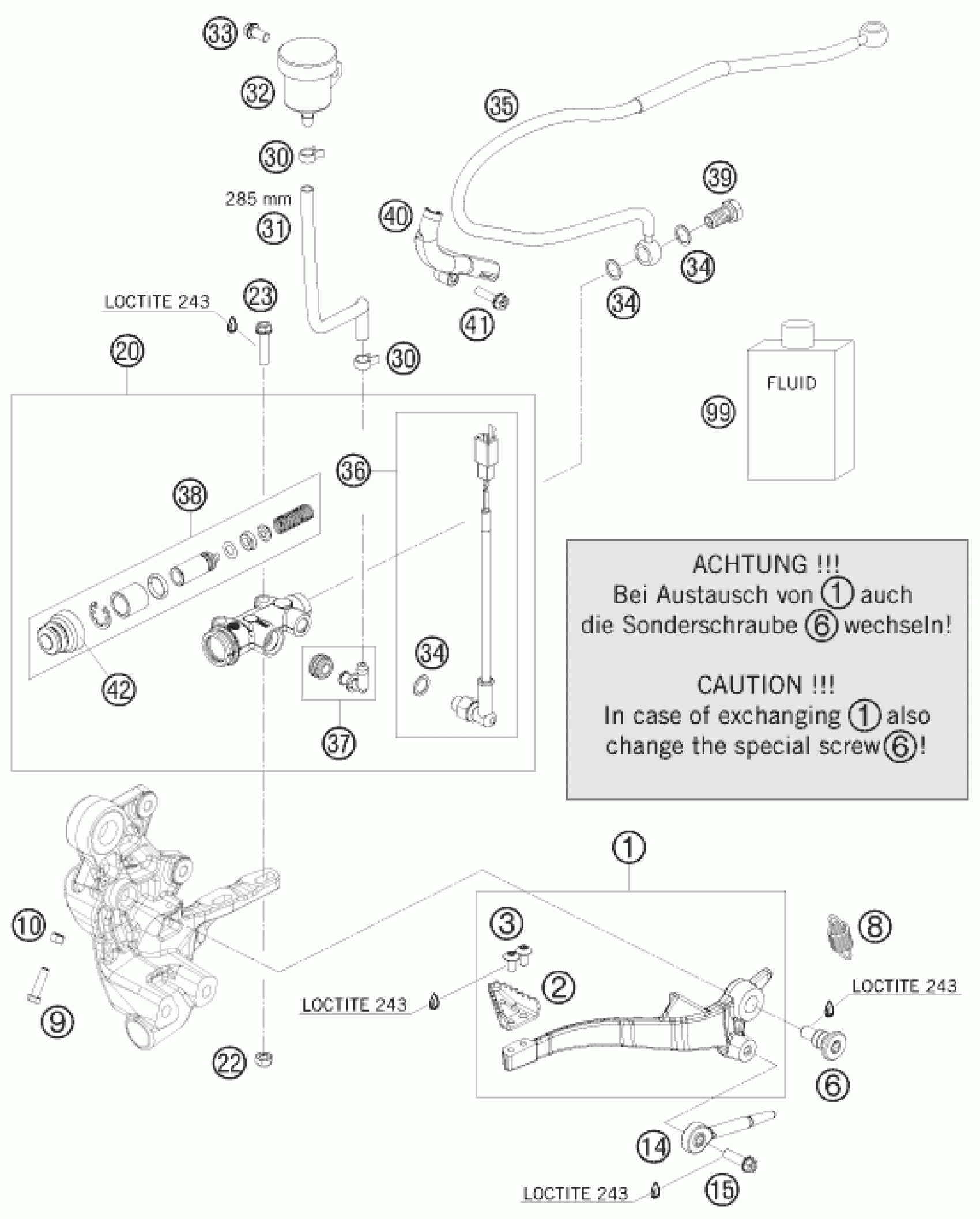

KTM 690 SMC 2008 REAR BRAKE CONTROL Diagram

#

Description
Price

6

SPECIAL SCREW M10 LH PRECOTE

76513057100

$15.33

8

RETURN SPRING FOR BRAKELEVER

54603062000

$6.54

14

PUSH ROD

76513056000

$43.73

15

HH collar screw M6x20 TX30

0025060206S

$2.05

22

STOP NUT M6 DIN6926 A2-70

0926060000

$3.08

9

HH SCREW DIN933 M5x20

0933050203

$1.49

10

HEXAGON NUT DIN0934-M 5

0934050003

$2.05

37

ANGLE PIECE

54513155000

$14.58

34

sealing ring DIN 7603 10x14x1

0603100141

$2.05

42

RUBBER SLEEVE

54513151000

$17.48

38

REPAIR KIT PISTON 13MM

76513061000

$59.08

20

FOOT BRAKE CYLINDER 13MM

76513060000

$149.40

36

BRAKE LIGHT SWITCH REAR

76511051000

$42.07

23

HH collar screw M6x25 TX30

0025060256

$3.08

30

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

31

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

32

BRAKE FLUID RESERVOIR '89

54513030044

$20.56

33

COLLAR SCREW M6X12 TX

0024060123

$1.49

40

BRACKET FOR BRAKE HOSE 08

76513047000

$5.23

41

HH collar screw M5x20 TX30

0025050206

$2.05

35

BRAKE HOSE REAR 805MM

76513072000

$77.60

39

banjo bolt M10x1x19 black

54813020100

$9.90

99

Brake fluid DOT5.1 0,25L

00062030000

$12.52

1

FOOT BR. LEVER+STEP PLATE 09

76513050144

Unavailable

2

STEP PLATE FOOT BRAKE LEVER 03

60013051000

$5.60

3

SCREW TORX M5X10 05

58605083010

$2.05
