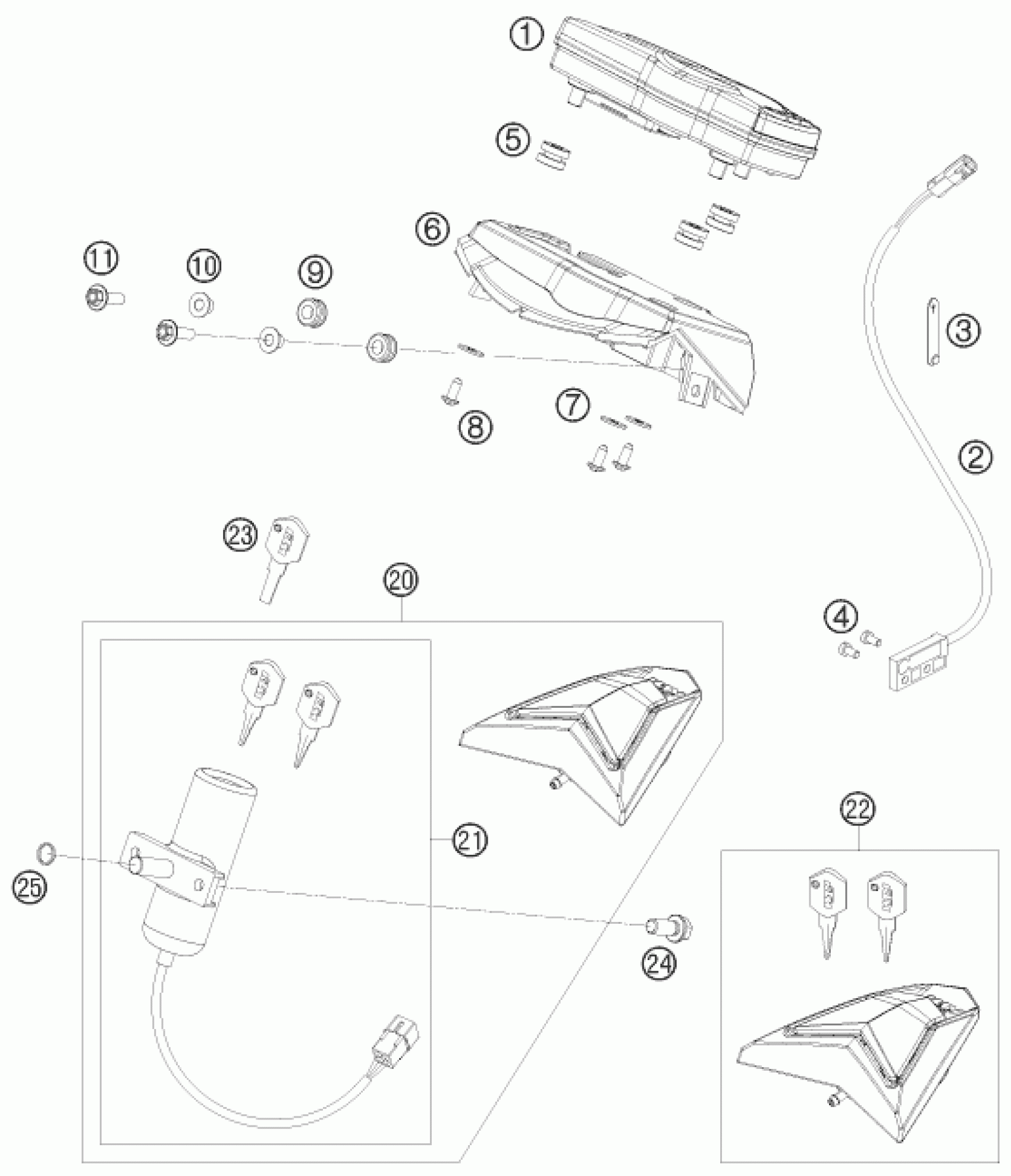

KTM 690 SMC 2008 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

25

o-ring 10.00x2.00 silicone

0770100020

Unavailable

1

SPEEDOMETER 07

75014069000

Unavailable

2

SPEEDOMETER SENSOR

76514068000

Unavailable

3

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

4

CYL.HEAD SCREW DIN0084-M 4X8 A

0084040083

Unavailable

5

rubber grommet 16x10.8x3

58214069051

Unavailable

6

SPEEDOMETER BRACKET

76514060000

Unavailable

7

washer DIN 9021 A - 5.3

0021050003

Unavailable

8

EJOT PT screw K50x12

0081050121

Unavailable

9

rubber grommet D=8mm open

31008060000

Unavailable

10

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

Unavailable

11

HH collar screw M6x15 TX30

0024060156

Unavailable

20

LOCK SET 08

76511066044

Unavailable

21

IGNITION LOCK 08

76511066000

Unavailable

22

TANK PLUG 08

76507008000

Unavailable

23

KEY BLANK LC4/DUKE/LC8

40011166100

Unavailable

24

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable
