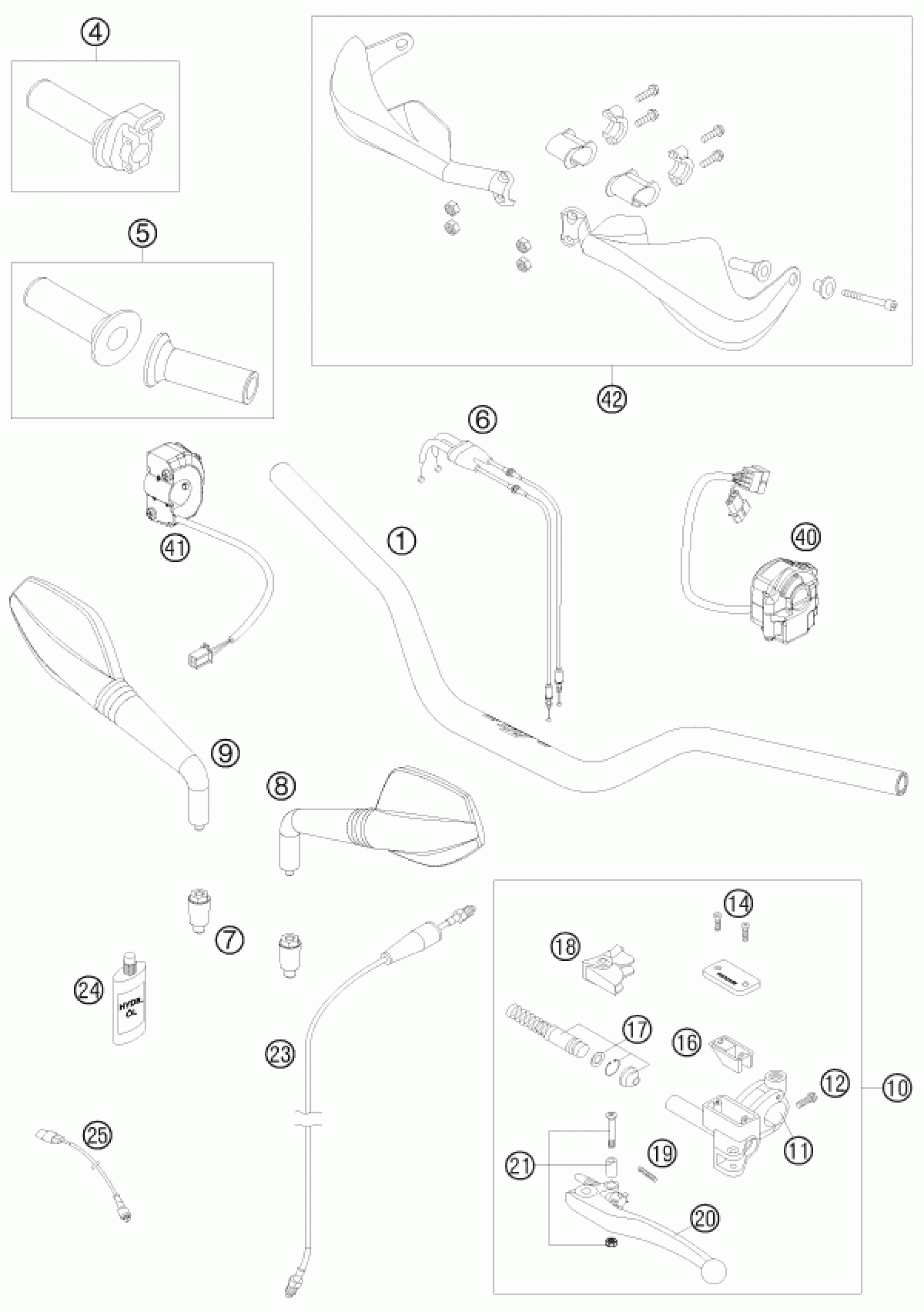

KTM 690 SMC 2008 HANDLEBAR, CONTROLS Diagram

#

Description
Price

1

HANDLEBAR D=28 MM RENTHAL796

5480200120017

Unavailable

4

THROTTLE GRIP CPL. 08

76502010000

Unavailable

5

GRIP SET DUAL COMPOUND

63002021200

Unavailable

6

THROTTLE CABLE 07

75002091000

Unavailable

9

REVIEW MIRROR R/S 07

61112041000

Unavailable

7

SUPPORT FOR MIRROR LC4 '98

58412040050

Unavailable

8

REVIEW MIRROR L/S 07

61112040000

Unavailable

10

MASTER CYLINDER MAGURA D=10.5

60002130000

Unavailable

11

CLAMP MIRROR WITH CLAMP

60002044000

Unavailable

12

HH collar screw M6x20 TX30

0025060206

Unavailable

14

FLAT HEAD SCREW DIN0965-M 4X12

0965040123

Unavailable

16

RUBBER FOR RESERVOIR '98

50302034000

Unavailable

17

REP.SET PISTON MAGURA D=10.5

50302032000

Unavailable

18

PROTECT.CAP FOR LEVER PERCH'98

50302037000

Unavailable

19

SPRING FOR CLUTCH LEVER 03

59002035000

Unavailable

20

CLUTCH LEVER LONG CPL. 2003

60002031000

Unavailable

21

LEVER SCREW CPL. 125-200 '98

50302038000

Unavailable

23

CLUTCH PIPE SM 07

75032063000

Unavailable

24

OIL FOR HYD. CLUTCH 100 ML

50302036200

Unavailable

25

CLUTCH SWITCH 03

58411049100

Unavailable

40

LIGHT SWITCH L/S 08

76511070000

Unavailable

41

START-EMERGENCY STOP SWITCH 08

76511074000

Unavailable

42

HANDGUARD L/S+R/S CPL.BLCK

6000207910030

Unavailable
