Description

Price

21

CLAMP RSGU 15/12

49007439000

$5.23

22

AH SCREW DIN0912-M 4X12

0912040123

$1.49

1

SEALINGS KIT

75007089000

$82.36

2

FILTER KIT

75007090000

$74.04

3

FUEL PUMP WITH FLANGE CPL.

75007088011

$585.96

4

PRESSURE REGULATOR CPL. 07

75007088012

$257.86

5

HYDRAULIC CONNECTOR CPL.

75007092000

$56.84

7

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

$5.23

8

FUEL HOSE WITH CLUTCH

75007116060

$54.78

9

O-ring VITON f. plug CPC 0

58507012000

$6.26

10

FUEL HOSE WITH CLUTCH

75007016050

$61.05

20

HH collar screw M5x16 TX30

0025050166

$2.05

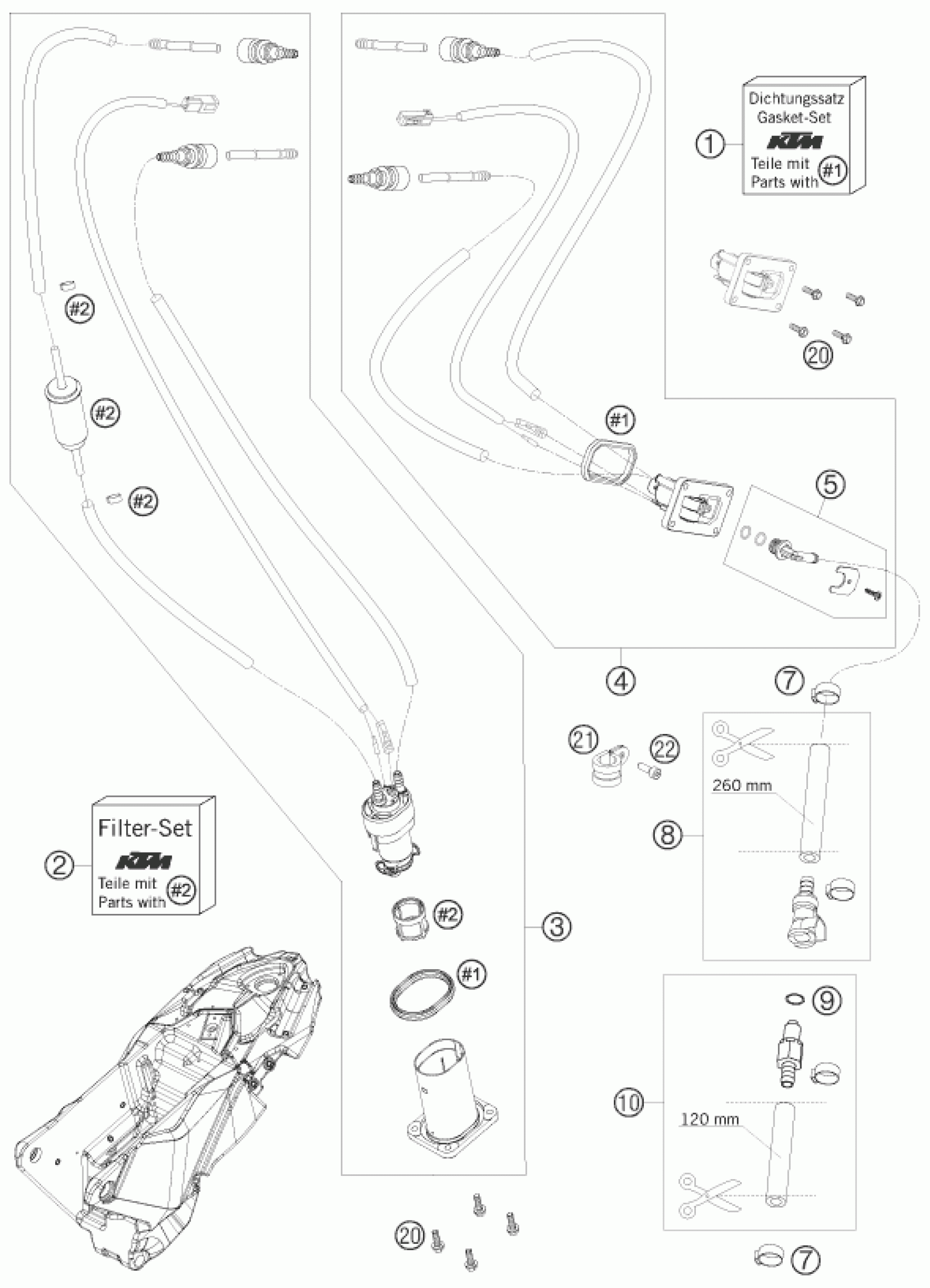

KTM 690 SMC 2008 FUEL PUMP Diagram

CLAMP RSGU 15/12

AH SCREW DIN0912-M 4X12

SEALINGS KIT

FILTER KIT

FUEL PUMP WITH FLANGE CPL.

PRESSURE REGULATOR CPL. 07

HYDRAULIC CONNECTOR CPL.

VARIABLE ONE-EAR CLAMP 15,3MM

FUEL HOSE WITH CLUTCH

O-ring VITON f. plug CPC 0

FUEL HOSE WITH CLUTCH

HH collar screw M5x16 TX30
