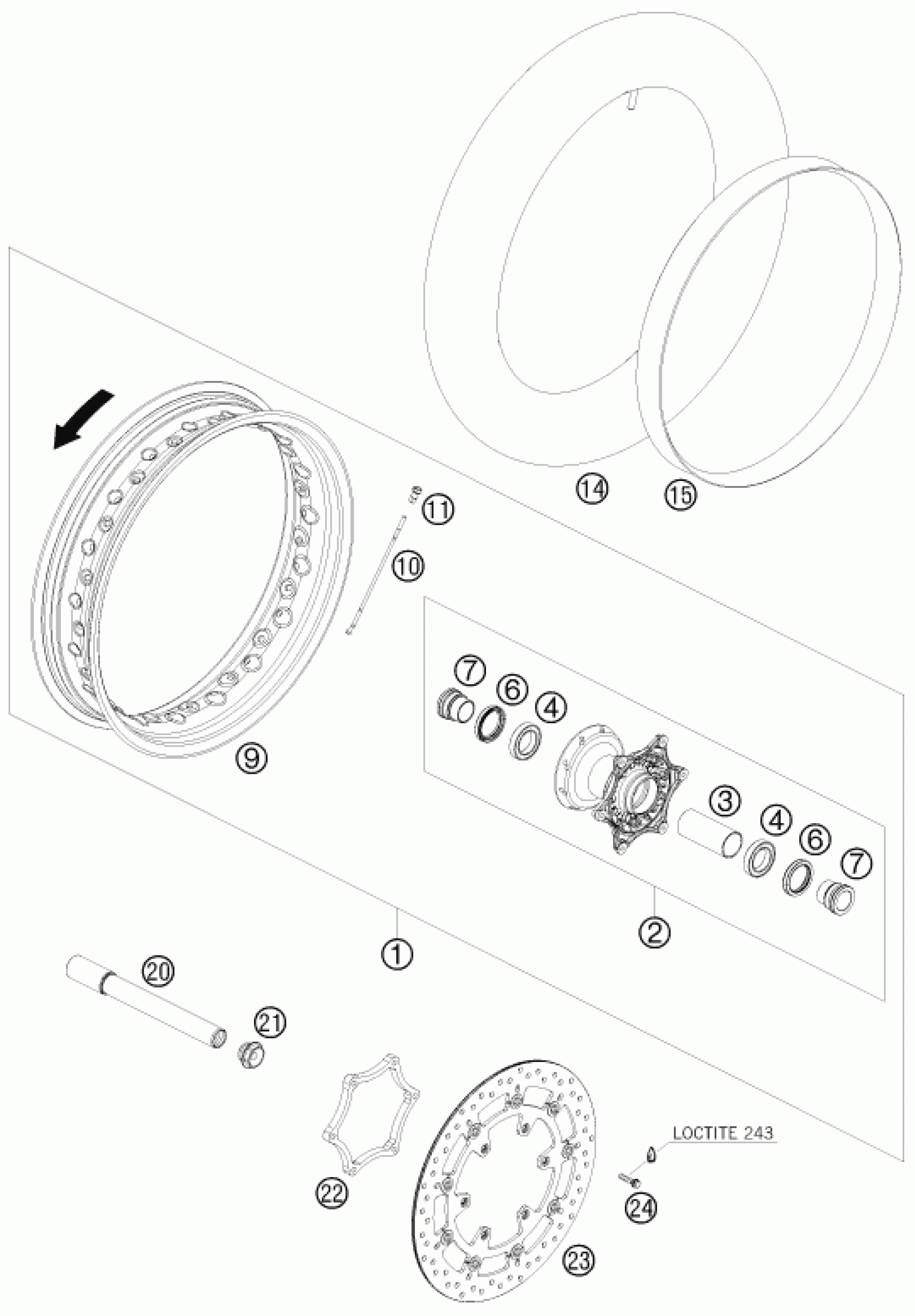

KTM 690 SMC 2008 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 3,5X17'' 0

7500900104430

Unavailable

2

FRONT HUB CPL. 07

75009010044

Unavailable

3

BEA.SPACERTUBE 35X2 L=79,4 03

54809011000

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSHING FRONT WHEEL 07

75009012000

Unavailable

9

RIM FRONT 3,5X17'' BLACK 0

7500907000030

Unavailable

10

SPOKE M4,5X172-15G 17'' INOX

75009073172

Unavailable

11

SPOKE NIPPLE M4,5X0,75 8X21

50309072100

Unavailable

14

tube 3.5x17''

58309075000

Unavailable

15

rim tape 17"

58309073000

Unavailable

20

WHEEL SPINDLE FRONT D=26MM 07

75009081000

Unavailable

21

SPINDLE SCREW M24X1,5 WS=27 03

54809082000

Unavailable

22

BRAKE DISC ADAPTOR 07

75009061000

Unavailable

23

BRAKE DISC FRONT 320MM 07

75009060000

Unavailable

24

SPECIAL SCREW M6X23 WS=8 10.9

59009062023

Unavailable
